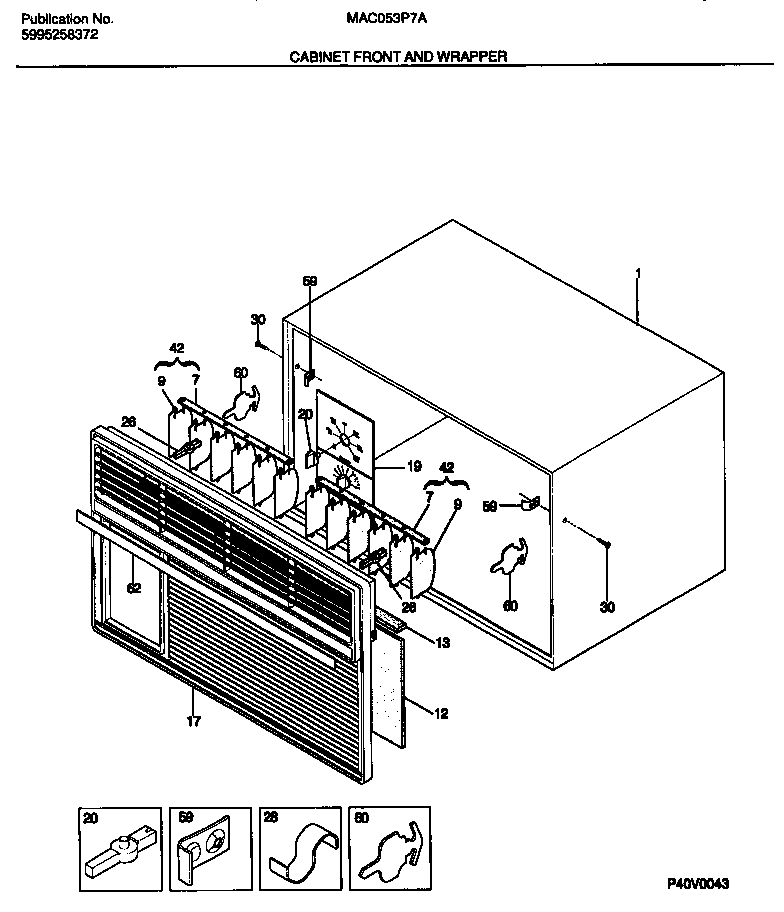

MAC053P7A2 02 – CABINET FRONT AND WRAPPER

MAC053P7A2 02 – CABINET FRONT AND WRAPPER

Written by

in

MAC053P7A2 02 – CABINET FRONT AND WRAPPER

Products

PositionProduct
1WCI 5303270060
7LINK-LOUVERS
9LOUVER-VERTICAL (6)
12WCI 3016117
13WCI 08007482
17WCI 5303289326
19WCI 5303289325
20WCI 5300331902
26HANDLE-LOUVER
28WCI 5303001784
30SCREW
42LINK LOUVER
59NUT – FRONT LOCK
60INSERT
62WCI 5303289327
