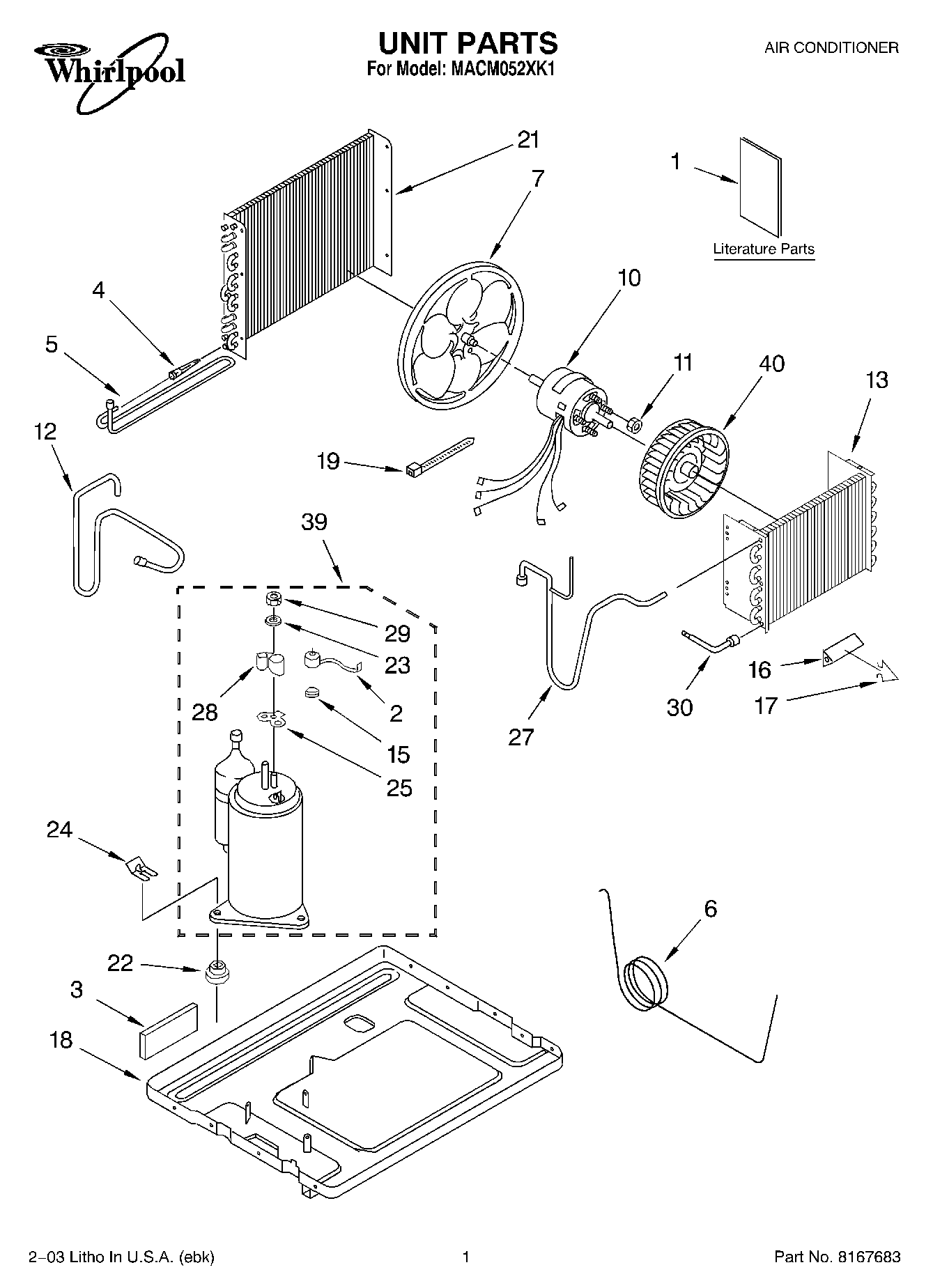

MACM052XK1 01 – UNIT PARTSadmin2025-04-26T11:23:21+00:00MACM052XK1 01 – UNIT PARTS
Products
| Position | Product |
|---|
| test |
| 1 | Energy Guide |
| 1 | Use & Care Guide |
| 1 | Literature Parts (Wiring Diagram) |
| 2 | Overload |
| 3 | Seal |
| 4 | WP1162526 Whirlpool Air Conditioner Strainer |
| 5 | Tube, Wet Loop |
| 6 | Tube, Restrictor |
| 7 | Blade, Fan |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | Tube, Discharge |
| 13 | Evaporator |
| 15 | Spring, Overload |
| 16 | Anticipator, Temperature |
| 17 | Clip, Anticipator |
| 18 | Base |
| 19 | WPW10339879 Whirlpool Wire Tie |
| 21 | Condenser |
| 22 | Grommet |
| 23 | Washer |
| 24 | Clip, Compressor |
| 25 | Gasket, Terminal Cover |
| 27 | Tube, Suction |
| 28 | Cover, Terminal |
| 29 | W10833054 Whirlpool Air Conditioner Mounting Nut |
| 30 | Tube, Feeder (Restrictor) |
| 39 | Compressor Assembly |
| 40 | Wheel, Blower |
| 40 | REFRIGERANT CHARGE 9.00 oz. |
