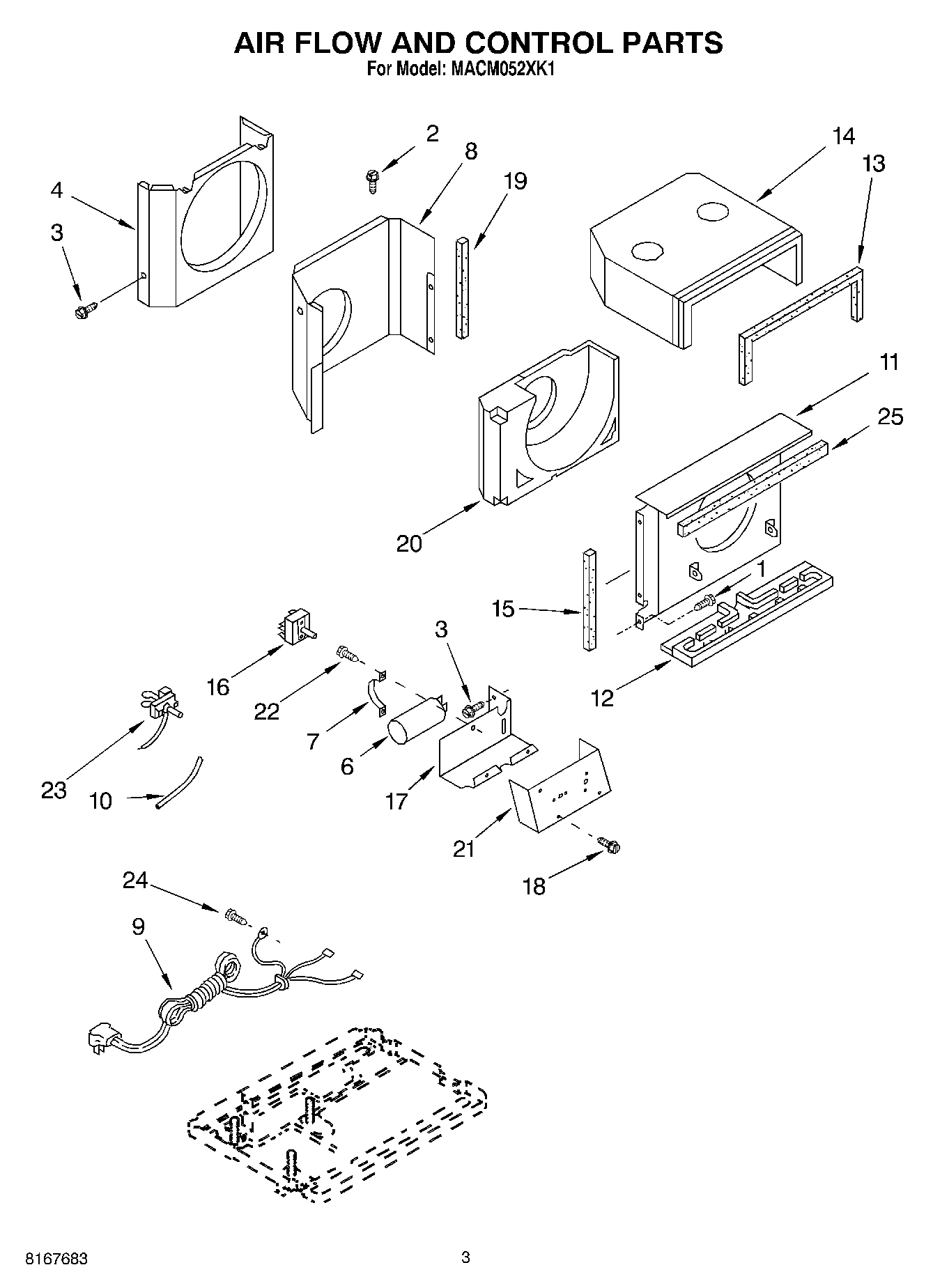

MACM052XK1 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1Screw, 8 x 3/8
2WP489069 Whirlpool Compactor Screw
4Shroud, Condenser
6Capacitor, Running
7Bracket, Capacitor
8Wall, Dividing
9Cord, Appliance
10Sleeve, Insulating
11Shroud, Evaporator
12Pan, Evaporator
13Seal
14Hood, Air Housing
15Seal, Left Side
16Switch, Rotary
17Box, Control
18Screw, 6-32 x .175
19WP854334 Whirlpool Air Conditioner Sealing Strip
20Housing, Air
21Panel, Control
23Control, Temp.
24Screw 8-18 x .295
25Seal, Right Side
