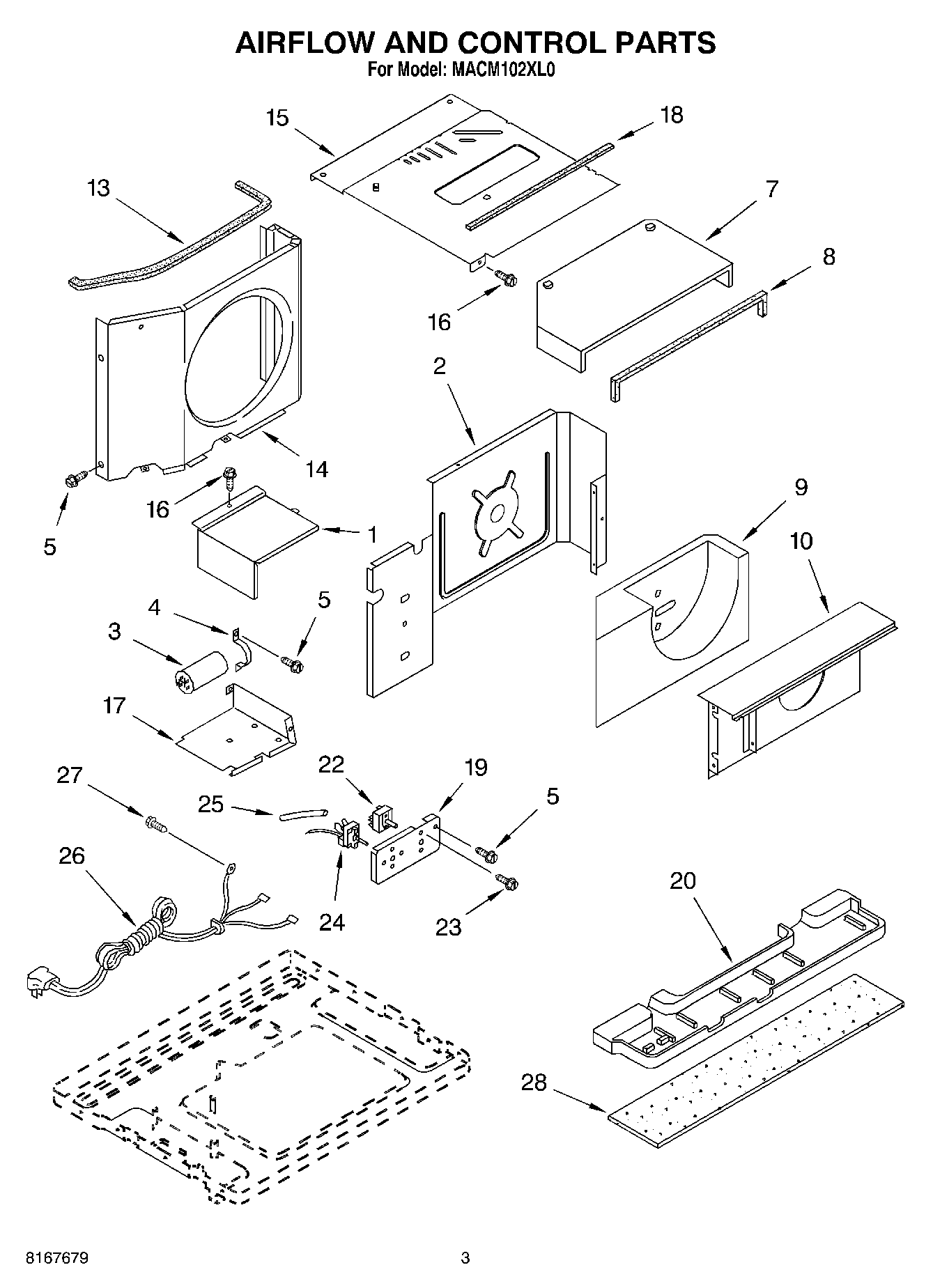

MACM102XL0 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1Cover, Control Box
2Wall, Dividing
3WP1186509 Whirlpool Air Conditioner Capacitor
4WP1160674 Whirlpool Bracket
7Hood, Air Housing
8WP854334 Whirlpool Air Conditioner Sealing Strip
9Housing, Air
10Shroud, Evaporator
14Shroud, Condenser
15Cover, Unit
16Screw, 8 x 3/8
17Box, Control
18Seal, Condenser Shroud
19Panel, Control
20Pan, Drain
22Switch, Rotary
23Screw, 6-32 x .175
24Control, Temp.
25Sleeve, Insulating
26Cable, Appliance
27Screw 8-18 x .295
28Insulation, Drain Pan
