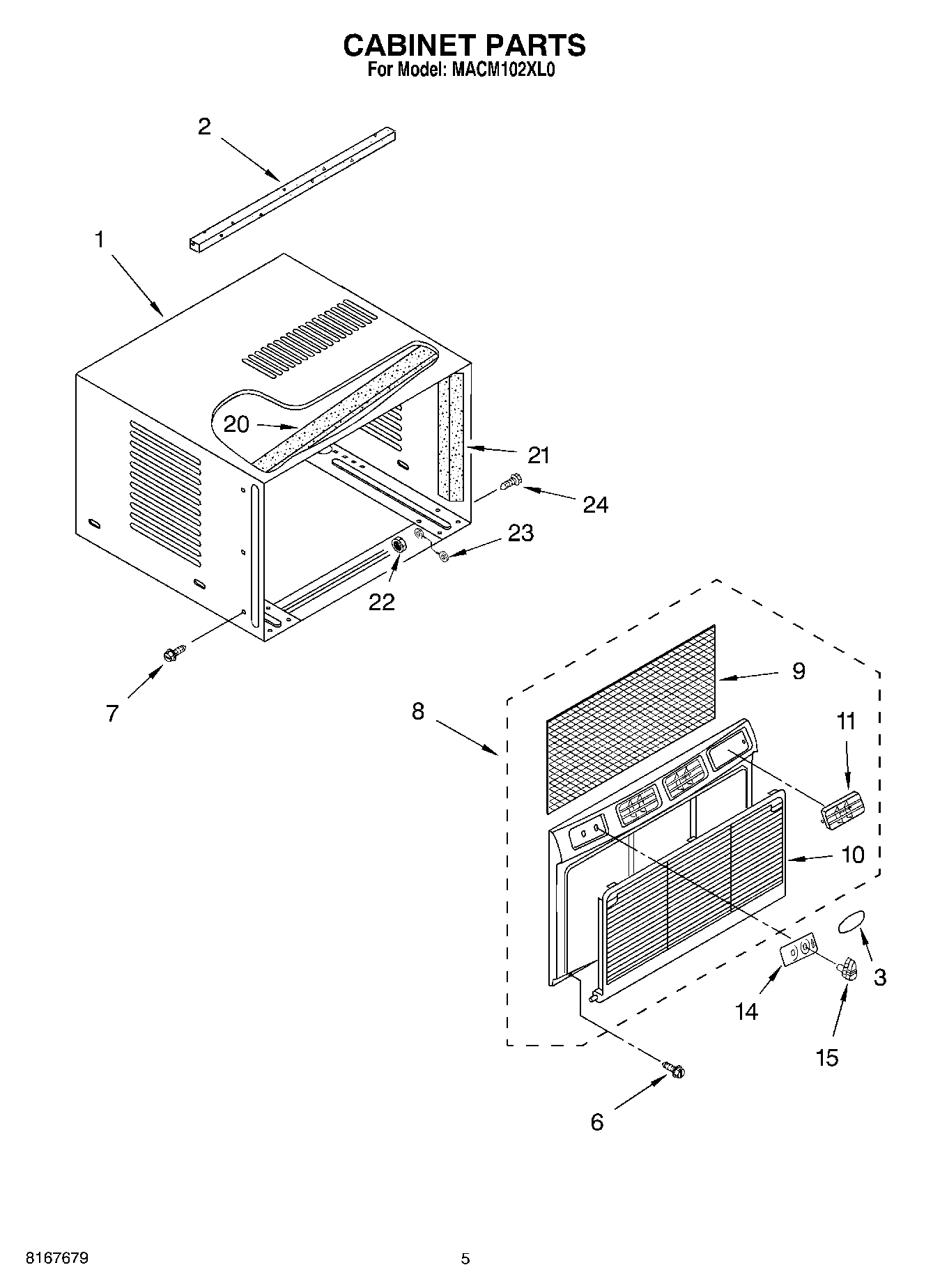

MACM102XL0 03 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP2213265 Whirlpool Refrigerator Nameplate
6W10491985 Whirlpool Screw
7Screw, 8 x 3/8
8FRONT
9Filter
10Grille, Front
11Louver Assembly
14Escutcheon
15WP8031121 Whirlpool Air Conditioner Control Knob
20Seal, Top Cover
21Seal, Cabinet Side (2)
22WP486255 Whirlpool Air Conditioner Nut
23Wire, Ground
24WP488234 Whirlpool Air Conditioner Screw
