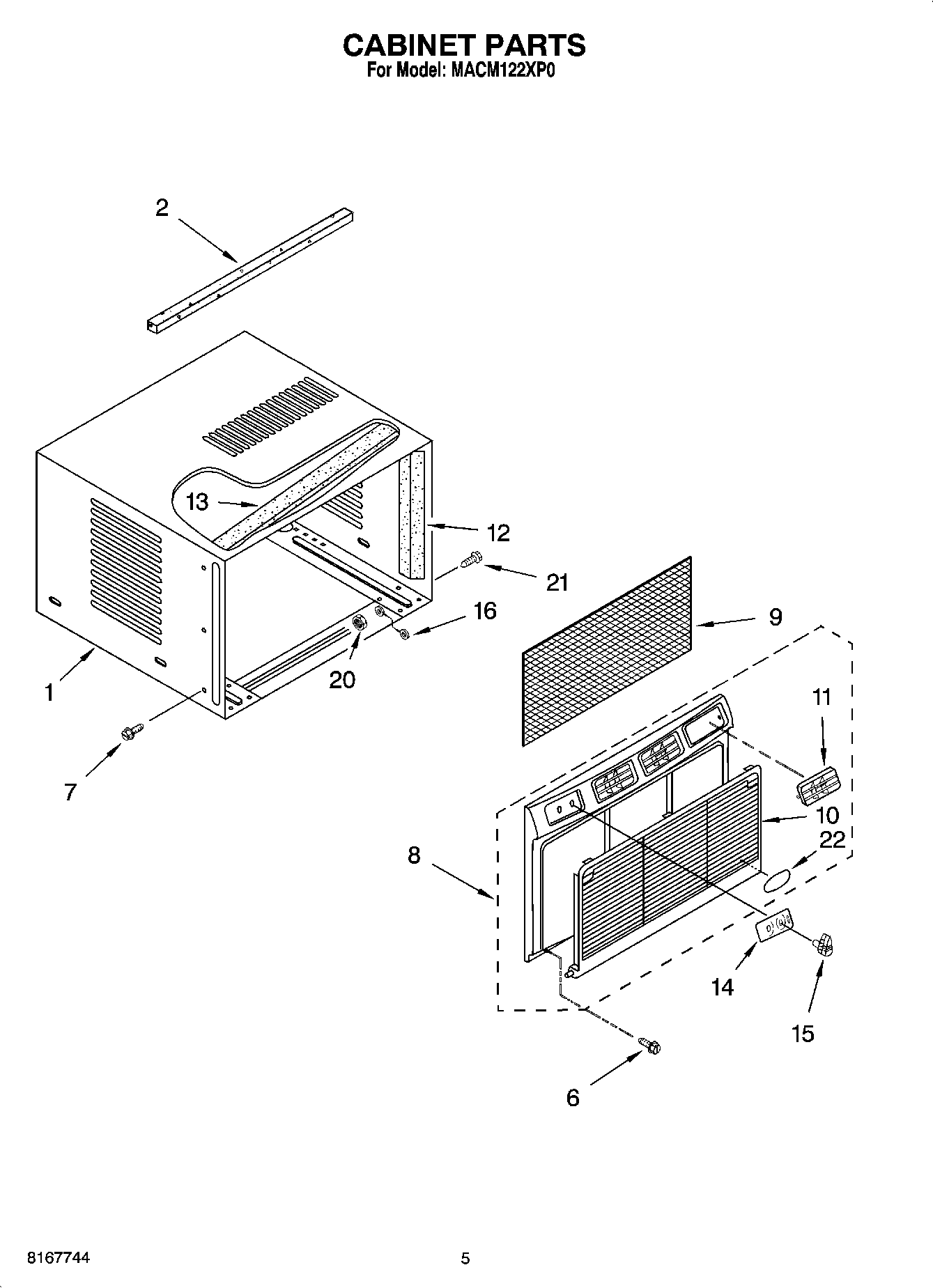

MACM122XP0 03 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
6W10491985 Whirlpool Screw
7Screw, 8 x 3/8
8Front
9Filter
10Grille, Front
11Louver Assembly
12Seal, Cabinet Side (2)
13Seal, Top Cover
14Escutcheon
15WP8031121 Whirlpool Air Conditioner Control Knob
16Wire, Ground
20WP486255 Whirlpool Air Conditioner Nut
21WP488234 Whirlpool Air Conditioner Screw
22Nameplate
