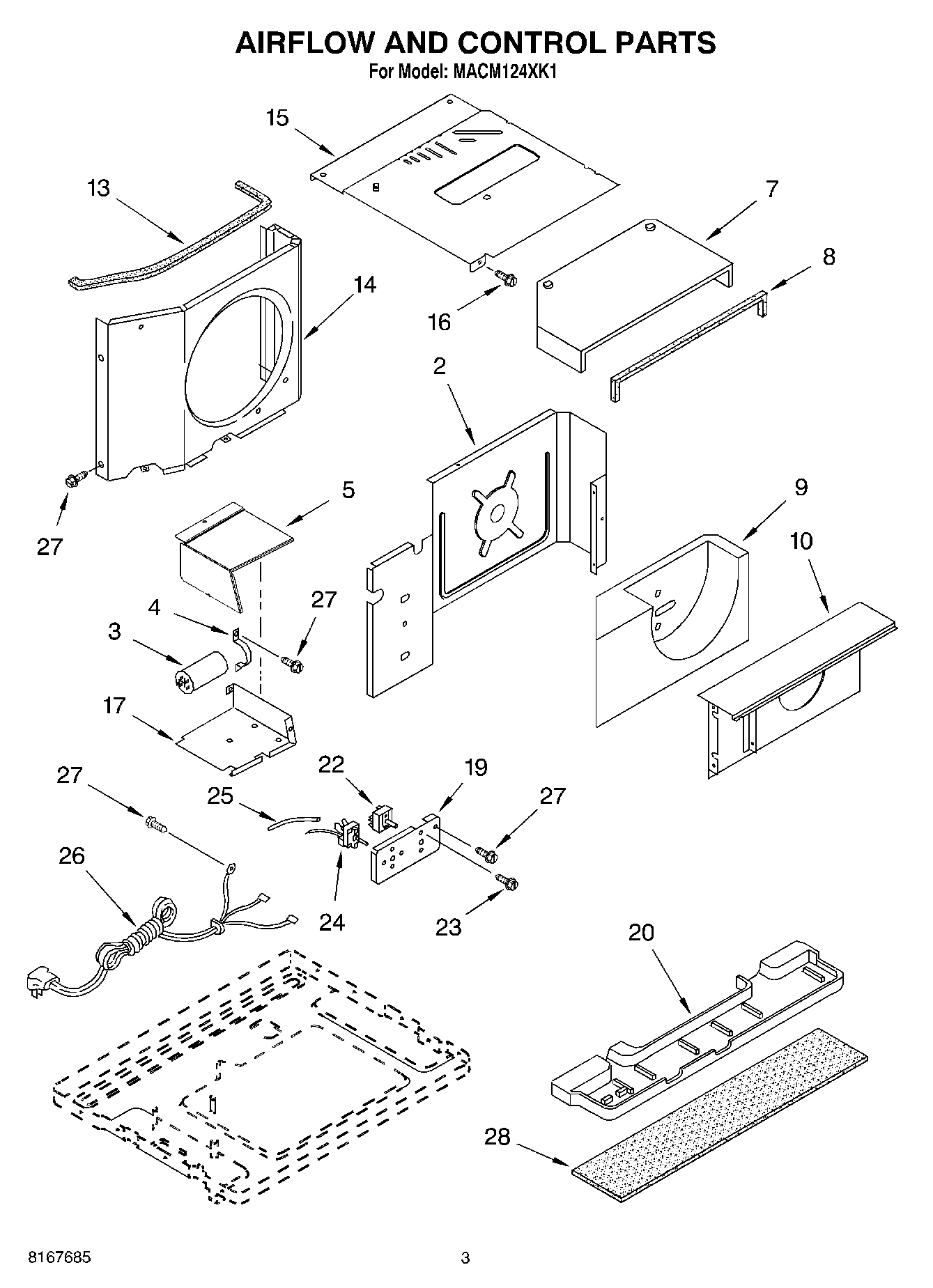

MACM124XK1 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
2Wall, Dividing
3Capacitor, Running
4Bracket, Capacitor
5Cover, Control Box
7Hood, Air Housing
8WP854334 Whirlpool Air Conditioner Sealing Strip
9Housing, Air
10Shroud, Evaporator
13Seal, Condenser Shroud
14Shroud, Condenser
15Cover, Unit
16Screw, 8 x 3/8
17Box, Control
19Panel, Control
20Pan, Drain
22Switch, Rotary
23Screw, 6-32 x .175
24Control, Temp.
25Sleeve, Insulating
26Cable, Appliance
27Screw 8-18 x .295
28Insulation, Drain Pan
