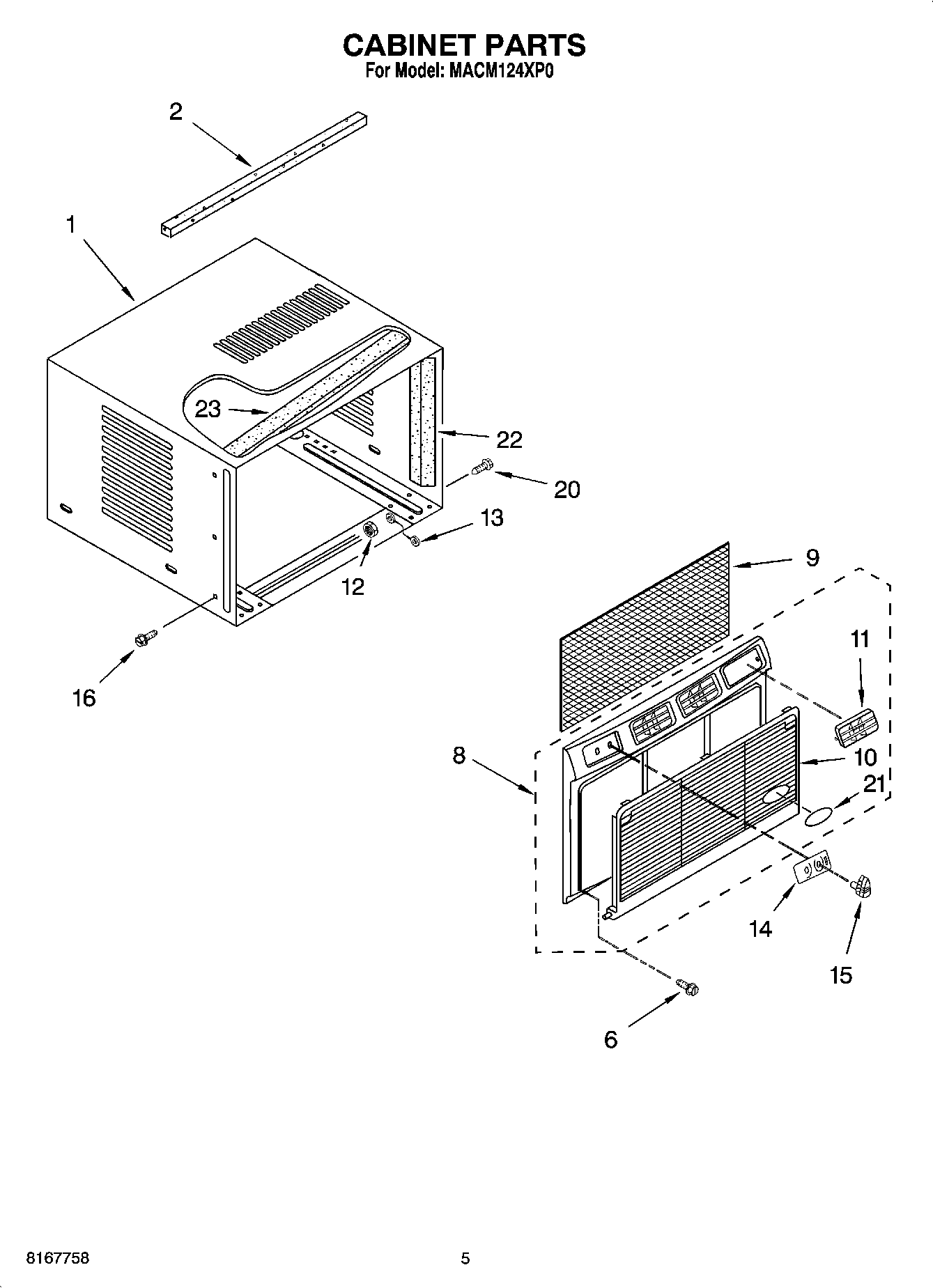

MACM124XP0 03 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
6W10491985 Whirlpool Screw
8Front
9Filter
10Grille, Front
11Louver Assembly
12WP486255 Whirlpool Air Conditioner Nut
13Wire, Ground
14Escutcheon
15WP8031121 Whirlpool Air Conditioner Control Knob
16Screw, 8-18 x 3/8
20WP488234 Whirlpool Air Conditioner Screw
21Nameplate
22Seal, Cabinet Side (2)
23Seal, Top Cover
