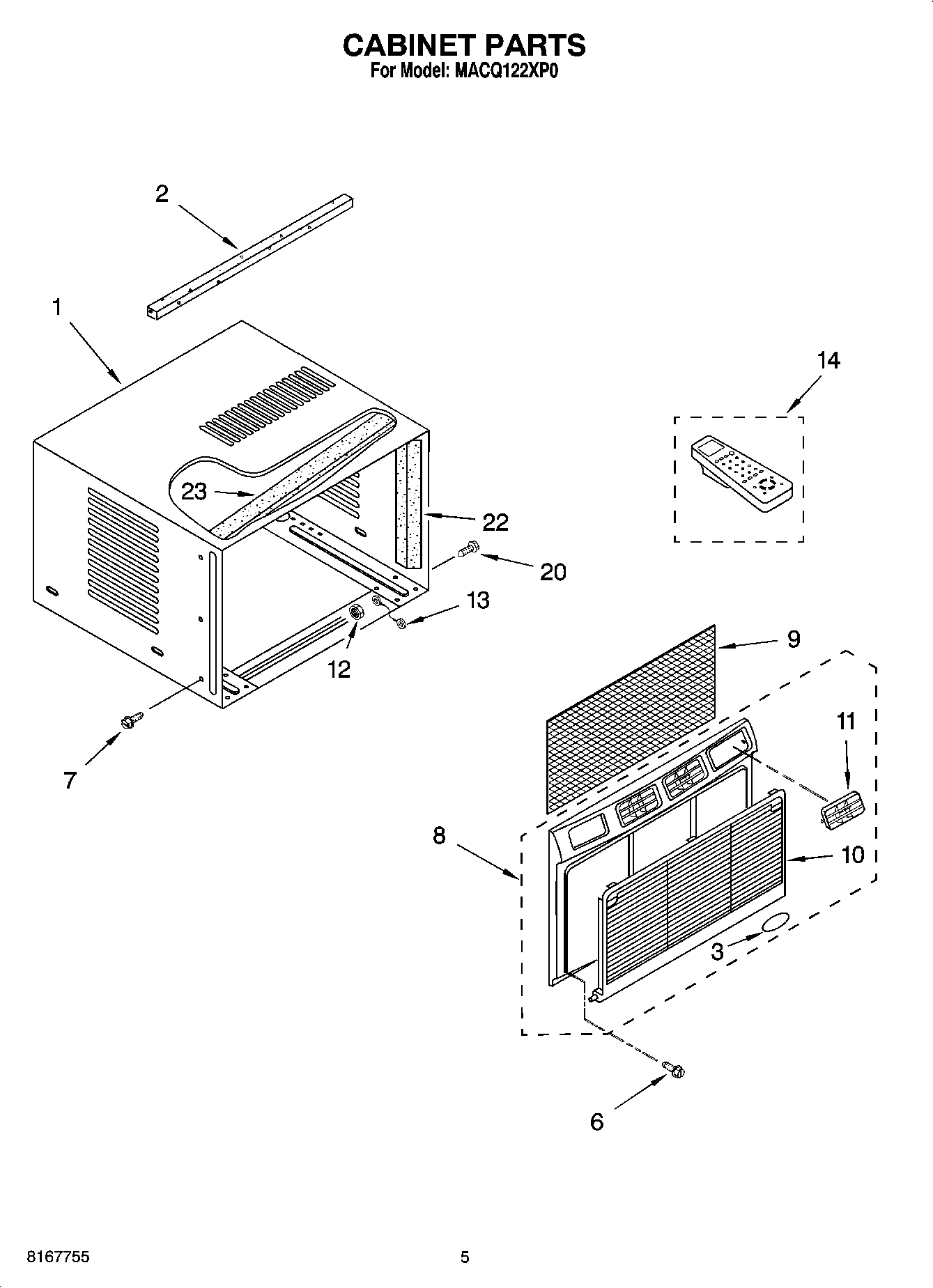

MACQ122XP0 03 – CABINET PARTS

Written by

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Nameplate
6	W10491985 Whirlpool Screw
7	Screw, 8 x 3/8
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	WP486255 Whirlpool Air Conditioner Nut
13	Wire, Ground
14	Control, Remote
20	WP488234 Whirlpool Air Conditioner Screw
22	Seal, Cabinet Side (2)
23	Seal, Top Cover
