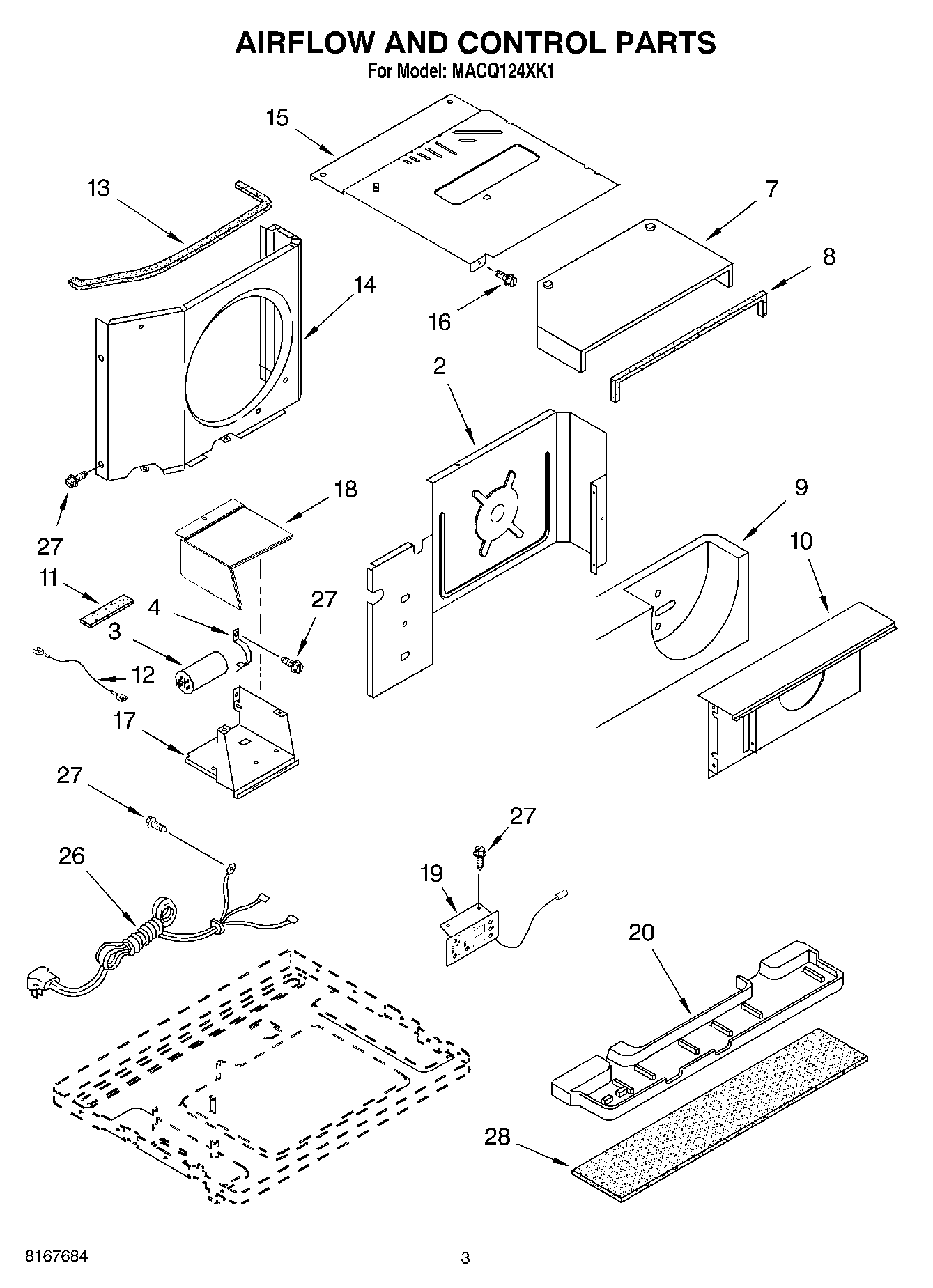

MACQ124XK1 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
2Wall, Dividing
3Capacitor, Running
4Bracket, Capacitor
7Hood, Air Housing
8WP854334 Whirlpool Air Conditioner Sealing Strip
9Housing, Air
10Shroud, Evaporator
11Seal
12Wire, Jumper
13Seal, Condenser Shroud
14Shroud, Condenser
15Cover, Unit
16Screw, 8 x 3/8
17Box, Control
18Cover, Control Box
19Control, Electronic
20Pan, Drain
26Cable, Appliance
27Screw 8-18 x .295
28Insulation, Drain Pan
