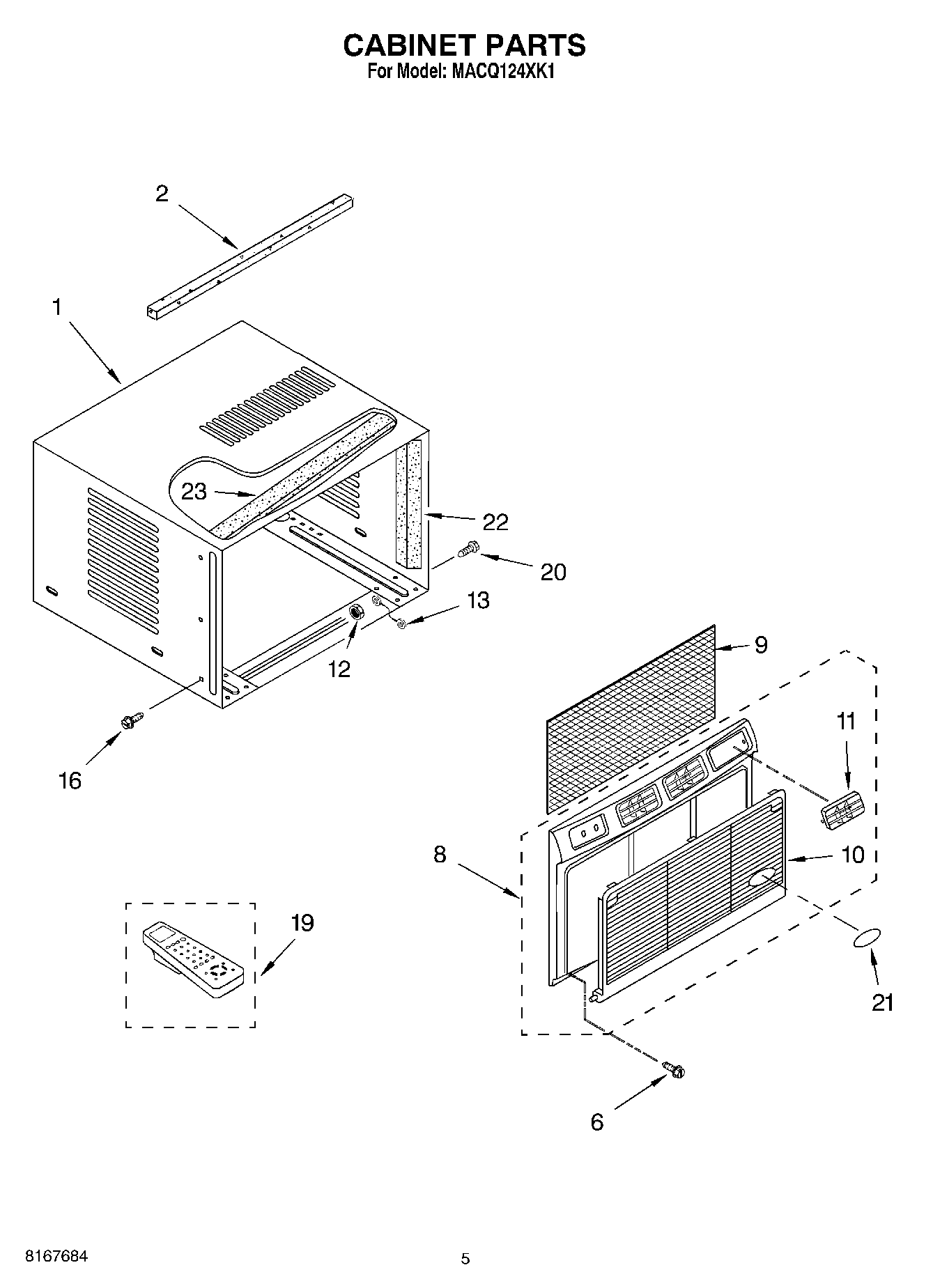

MACQ124XK1 03 – CABINET PARTS

Written by

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
6	W10491985 Whirlpool Screw
8	FRONT
9	Filter
10	Grille, Front
11	Louver Assembly
12	WP486255 Whirlpool Air Conditioner Nut
13	Wire, Ground
16	Screw, 8-18 x 3/8
19	Control, Remote
20	WP488234 Whirlpool Air Conditioner Screw
21	WP2213265 Whirlpool Refrigerator Nameplate
22	Seal, Cabinet Side (2)
23	Seal, Top Cover
