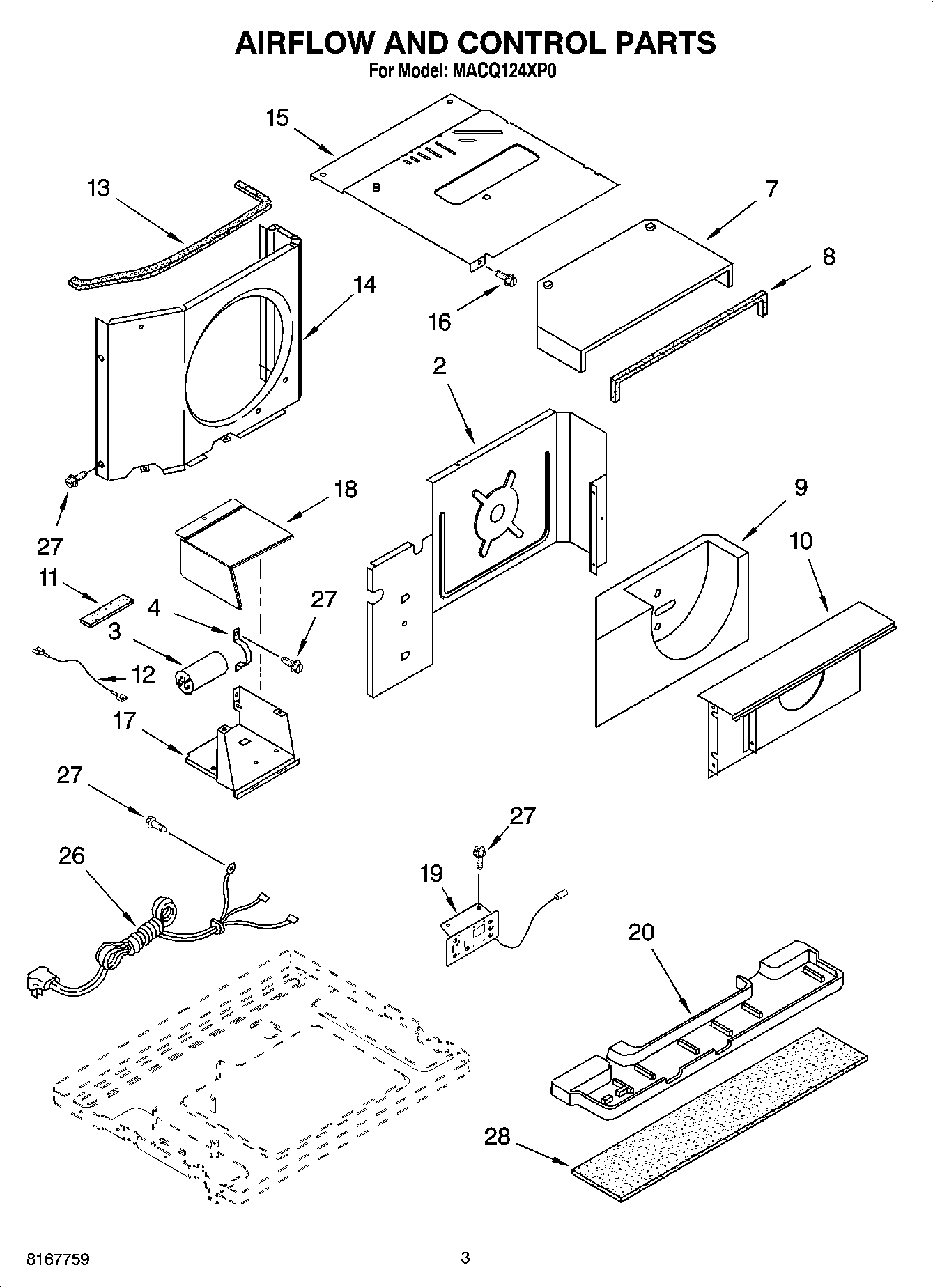

MACQ124XP0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
7	Hood, Air Housing
8	WP854334 Whirlpool Air Conditioner Sealing Strip
9	Housing, Air
10	Shroud, Evaporator
11	Seal
12	Wire, Jumper
13	Seal, Condenser Shroud
14	Shroud, Condenser
15	Cover, Unit
16	Screw, 8 x 3/8
17	Box, Control
18	Cover, Control Box
19	Control, Electronic
20	Pan, Drain
26	Cable, Appliance
27	Screw 8-18 x .295
28	Insulation, Drain Pan
