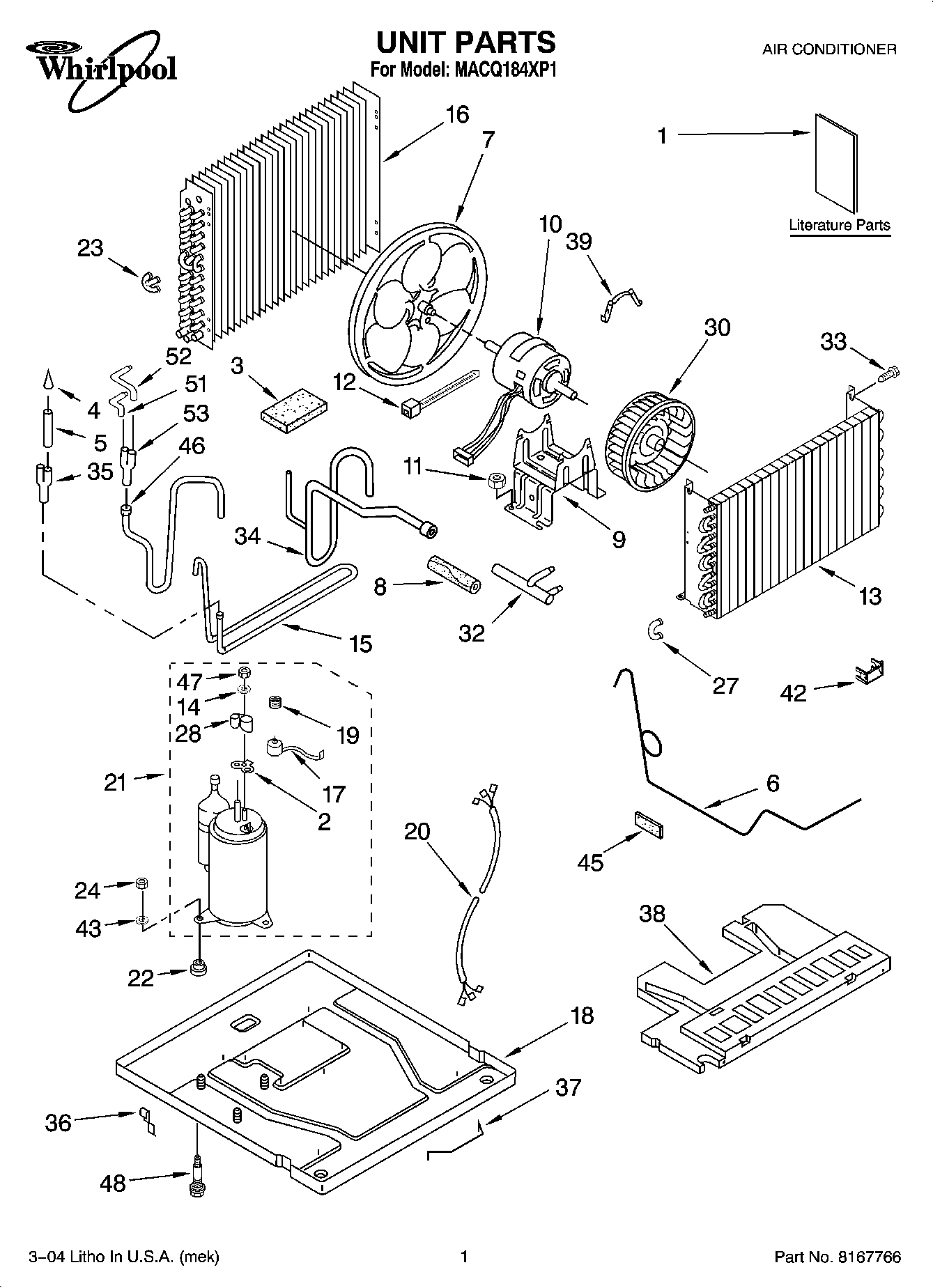

MACQ184XP1 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Literature Parts (Use & Care Guide)
1	LITERATURE PARTS (Wiring Diagram)
2	Gasket, Terminal Cover
3	Putty, Sound Dampener
4	Strainer
5	Tube, Outlet (Includes Item 4)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Washer
15	Wet, Loop
16	Condenser
17	Overload
18	Base
19	Spring, Overload
20	Harness, Wiring (Compressor)
21	COMPRESSOR
22	WP950021 Whirlpool Grommet
23	Bend, 3-Way
24	Locknut (3)
27	Bend, Return Evaporator (11)
28	Cover, Terminal
30	Wheel, Blower
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction (Includes 8)
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
45	Seal, Restrictor Tube
46	Tube, Discharge
47	W10833054 Whirlpool Air Conditioner Mounting Nut
48	Bolt, Compressor
51	Tube, Feeder
52	Tube, Feeder
53	Tube, Flow Divider
53	REFRIGERANT CHARGE 31.50 oz.
