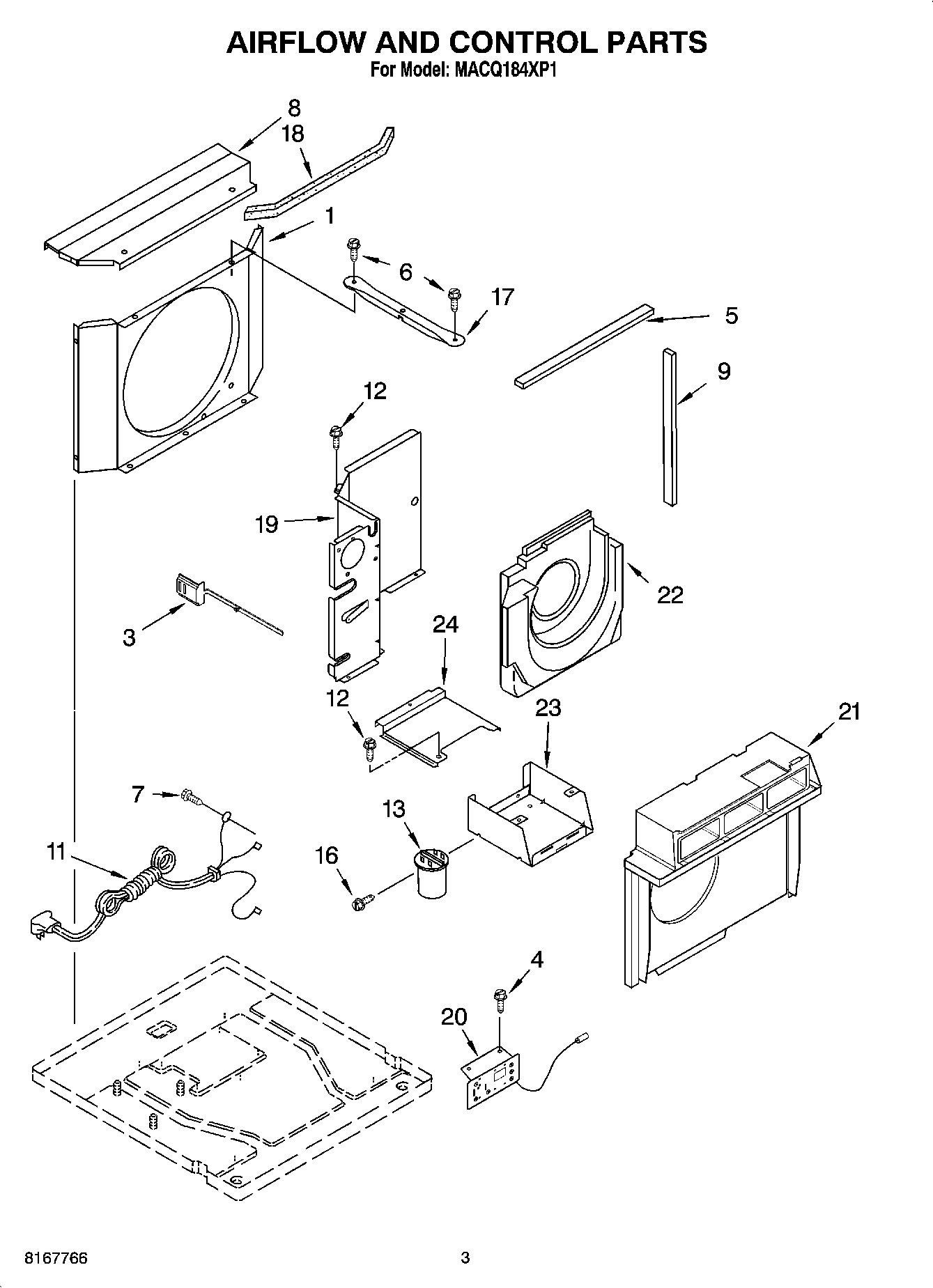

MACQ184XP1 02 – AIRFLOW AND CONTROL PARTS

Products

PositionProduct
1Shroud, Condenser
3Door, Exhaust
4Screw 8-18 x .295
5Seal (Top)
6WP308685 Whirlpool Microwave Screw
7WP489069 Whirlpool Compactor Screw
8Top, Condenser
9Seal (Side)
11Cord, Appliance
12Screw, 8 x 3/8
13Capacitor
16WP489478 Whirlpool Refrigerator Screw
17Support, Unit (2)
18Seal, Shroud
19Dividing Wall
20Control, Electronic
21Shroud Assembly, Evaporator
22Housing, Air
23Control Box
24Cover, Control Box
