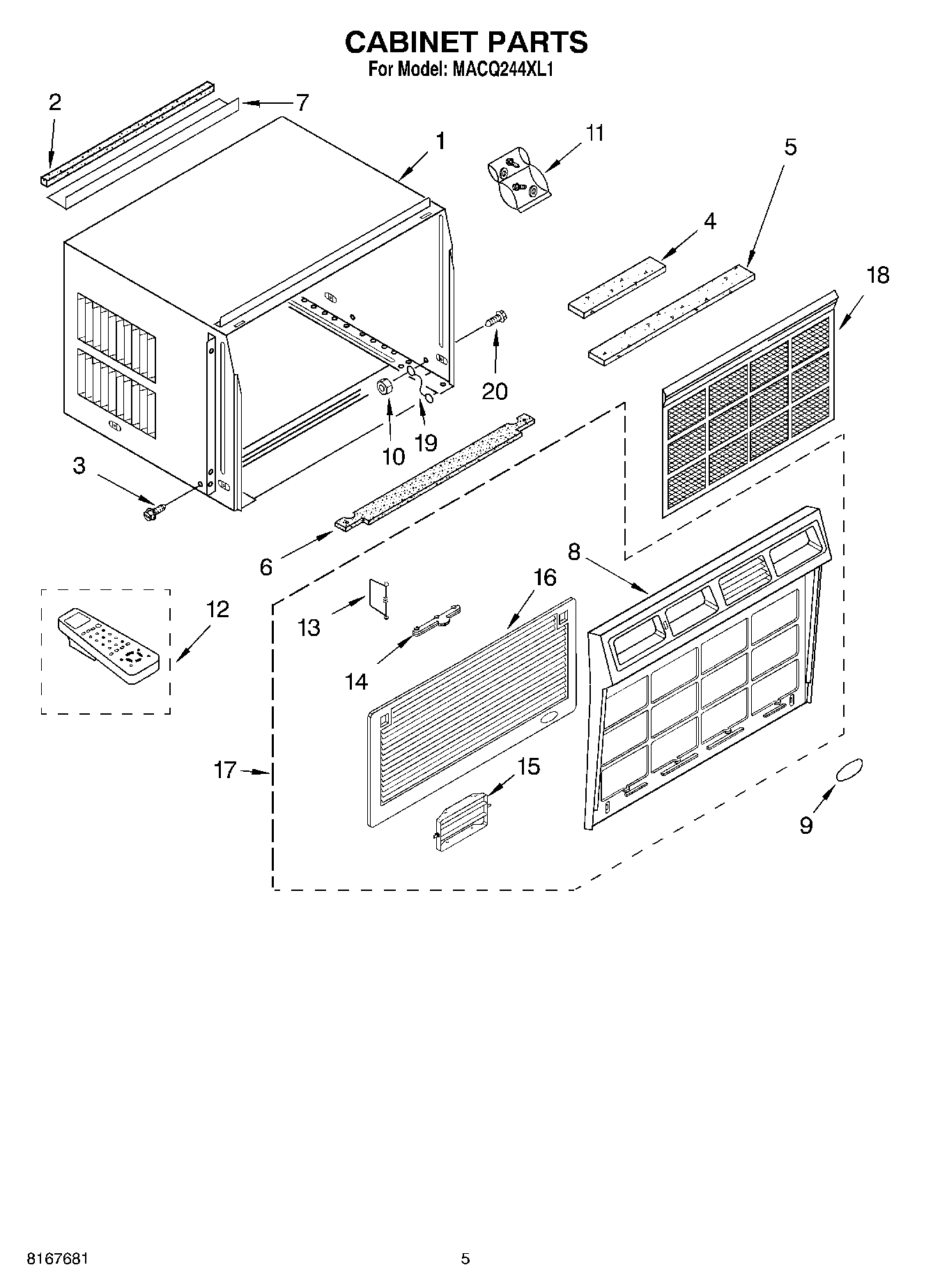

MACQ244XL1 03 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	WPL 799833
1	Cabinet
2	No Drip Tape (For Sweating Tubes)
2	Gasket, Meeting Rail
3	Screw 8-18 x .295
3	TAPE, VINYL (3/4 X 108“)
4	Seal, Hood-Small
4	Oil, Turbine 1 Fl. Oz.
5	Seal, Hood-Large
5	Oil, Turbine 8 Fl. Oz.
6	VALVE, ACCESS (1/2“)
6	Seal
6	876764 Whirlpool Refrigerator Primary Valve
6	978026 Whirlpool Refrigerator Primary Valve
6	VALVE, ACCESS (5/8“)
6	978027 Whirlpool Refrigerator Primary Valve
6	978030 Whirlpool Refrigerator Valve
6	WP978025 Whirlpool Refrigerator Valve
7	Seal, Ring (Access Valve) (20 – Pack)
7	Angle (Top)
8	Frame, Front
8	Wire, 25“ Roll (White 12 GA.)
8	Wire, 25` Roll (Blue 16 Ga.)
8	Wire, 25` Roll (Black 14 Ga.)
8	Wire, 25` Roll (Red 14 Ga.)
8	Wire, 25“ Roll (White 14 GA.)
8	Wire, 25` Roll (Red 12 Ga.)
8	Wire, 25“ Roll (Black 12 GA.)
9	Adhesive, Insulation (24 Oz. Spray)
9	WP2213265 Whirlpool Refrigerator Nameplate
10	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
10	WP486255 Whirlpool Air Conditioner Nut
11	Bag, Accessory
12	Control, Remote
12	212643 Whirlpool Refrigerator Permagum Sealer
13	Louver, Verticle
13	4318168 Whirlpool Refrigerator Primary Permagum Sealer
14	484184 Whirlpool Air Conditioner Winter Cover
14	Link, Verticle Louver (2)
14	Cover, Winter (28 x 19 x 31“)
14	Cover, Winter (27 x 19 x 6 to 27“)
14	Cover, Winter (19“x12“x14“)
15	Cartridge
15	Retainer, Cord (Winter Cover)
16	Door, Filter
16	Return Bend ReplacementKit (5/16 Inch Tube)
16	Return Bend ReplacementKit (3/8 Inch Tube)
17	Front, Complete
18	Filter
19	Wire, Ground
20	WP488234 Whirlpool Air Conditioner Screw
