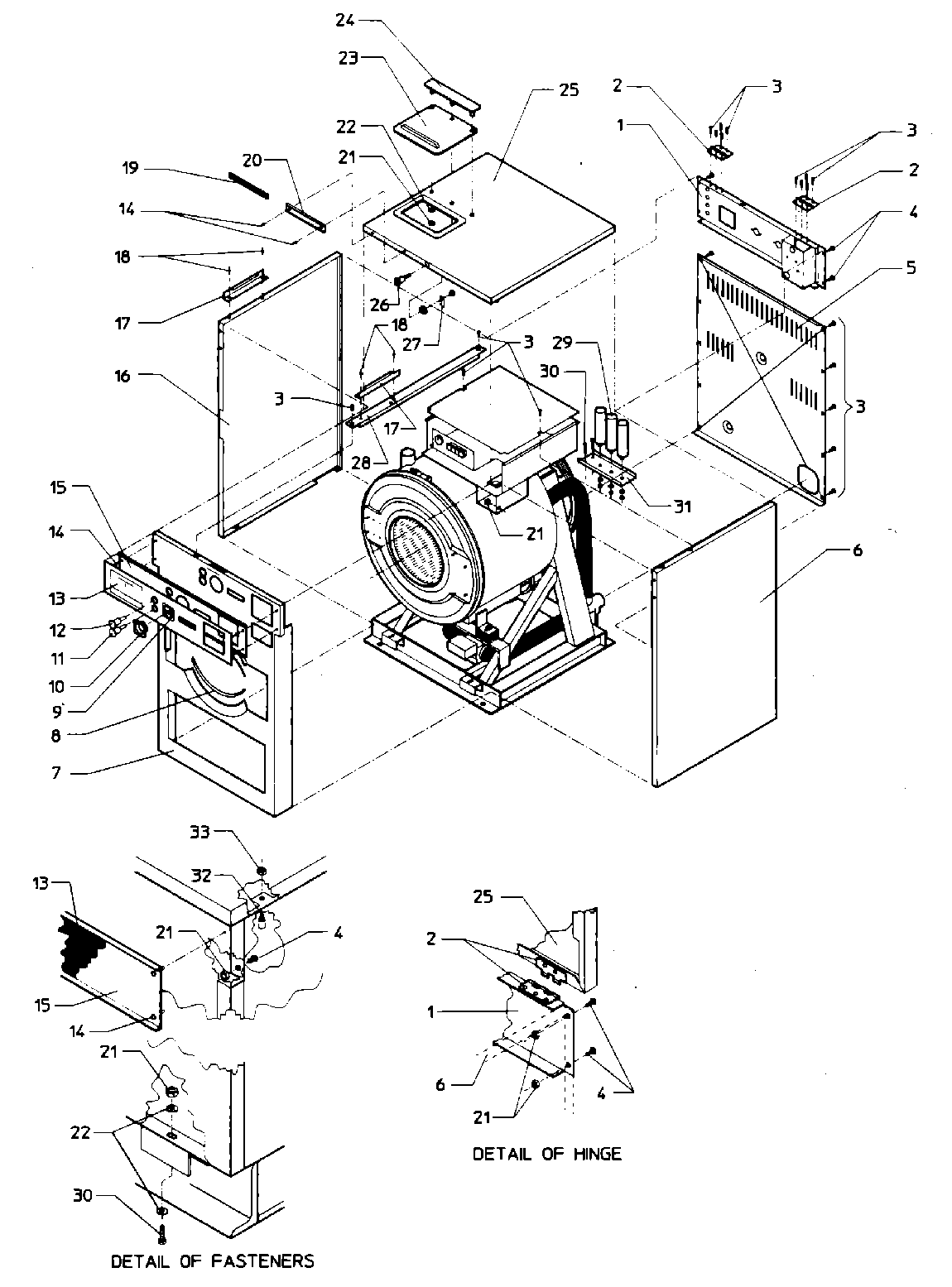

MAF18MC4VL 01 – FINAL ASSEMBLY (MAF18MC4Vx)

Products

Position	Product
001	MAY 24001169
002	HINGE (TAKE APART)
002	MAY 24001676
003	MAY 24001301
004	MAY 24001323
005	MAY Y24001400
006	MAY 24001159
007	PANEL ASSY. (INR. FRNT.)
008	TRIM, PANEL (INR. FRNT.)
009	MAY 24001679
010	MAY 24001680
011	MAY 24001681
012	MAY 24001682
013	MAY 24001683
014	MAY 24001533
015	MAY 24002036
016	DOWEL PIN FOR HANDLE
016	MAY 24001155
017	MAY 24001539
018	MAY 24001540
020	MAY 24001671
021	MAY 24001510
022	MAY 24001295
023	COVER, SOAP DISPENSER
024	MAY 24001542
025	COVER ASSY KIT, TOP
026	MAY 24001220
027	MAY 24001221
028	MAY 24001695
029	CAPACITOR (100MF) (SINGLE PHASE)
030	MAY 24001303
031	MAY 24001692
032	MAY 24001305
033	MAY 24001425
034	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
