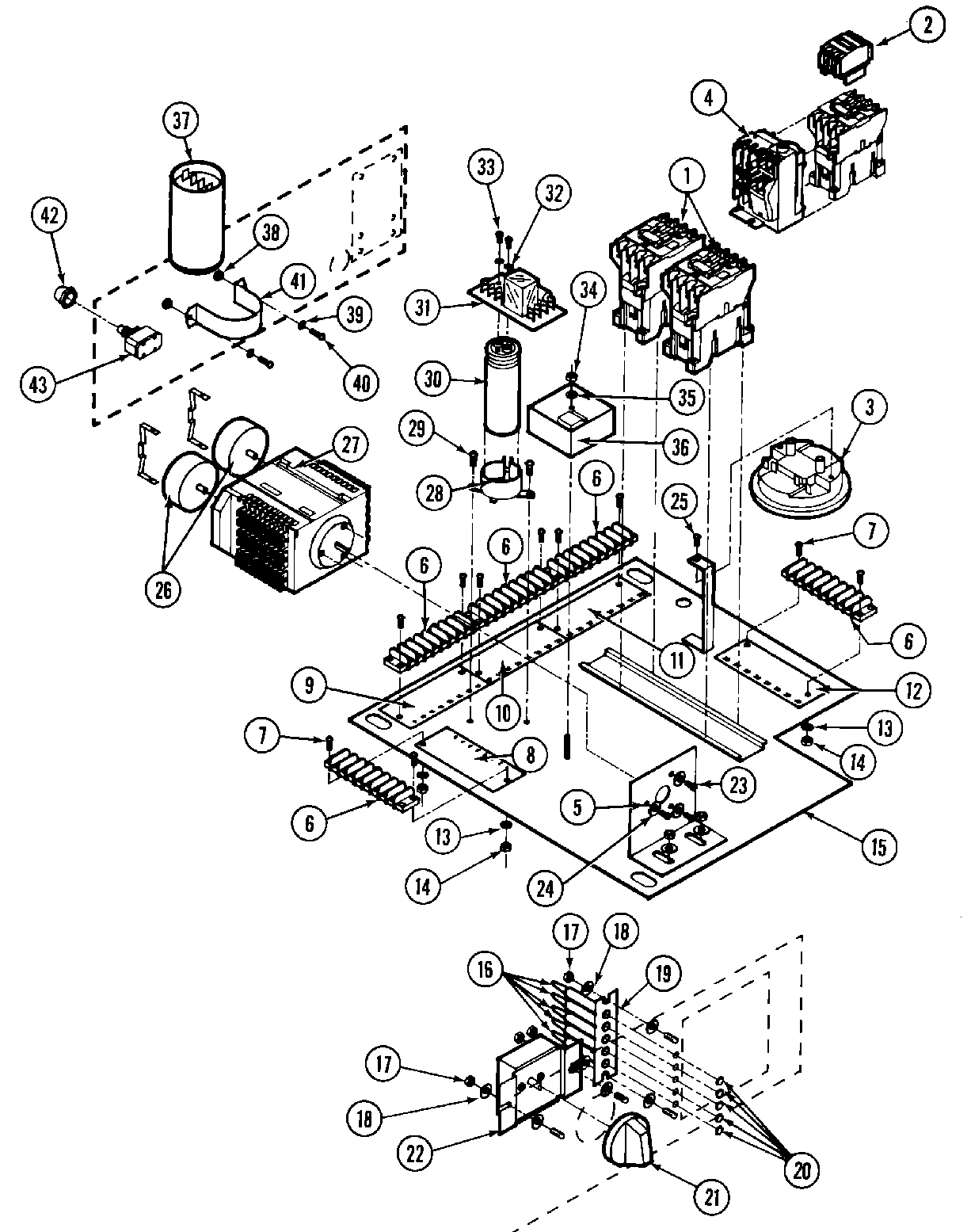

MAF25MC4VL 01 – CONTROL MODULE (MAF25MC4Vx)
Products
| Position | Product |
|---|---|
| 001 | MAY 24001105 |
| 002 | MAY 24001104 |
| 004 | MAY 24001233 |
| 006 | MAY 24001412 |
| 007 | MAY 24001414 |
| 011 | DOWEL PIN FOR HANDLE |
| 012 | MAY 24001030 |
| 013 | MAY 24001415 |
| 014 | MAY 24001417 |
| 016 | MAY 24001209 |
| 017 | MAY 24001342 |
| 019 | MAY 24001841 |
| 019 | MAY 24001214 |
| 020 | MAY 24001210 |
| 021 | MAY 24001204 |
| 022 | MAY 24001207 |
| 023 | MAY 24001357 |
| 024 | MAY 24001358 |
| 025 | MAY 24001411 |
| 026 | MAY 24001577 |
| 027 | MAY 24001178 |
| 028 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 029 | MAY 24001578 |
| 030 | MAY 24001247 |
| 031 | MAY 24001248 |
| 032 | MAY 24001579 |
| 033 | MAY 24001580 |
| 034 | MAY 24001419 |
| 035 | MAY 24001295 |
| 036 | MAY 24001176 |
| 037 | KIT, SWITCH (ELMO MOTORS) |
| 038 | MAY 24001425 |
| 039 | MAY 24001576 |
| 040 | MAY 24001593 |
| 041 | MAY 24001594 |
| 042 | MAY 24001744 |
| 043 | MAY 24001254 |
| 044 | MAY 24001245 |
