MAF25MC4VS 05 – DOOR & RELATED ASSEMBLY (MAF25MC4Vx)
Written by
in

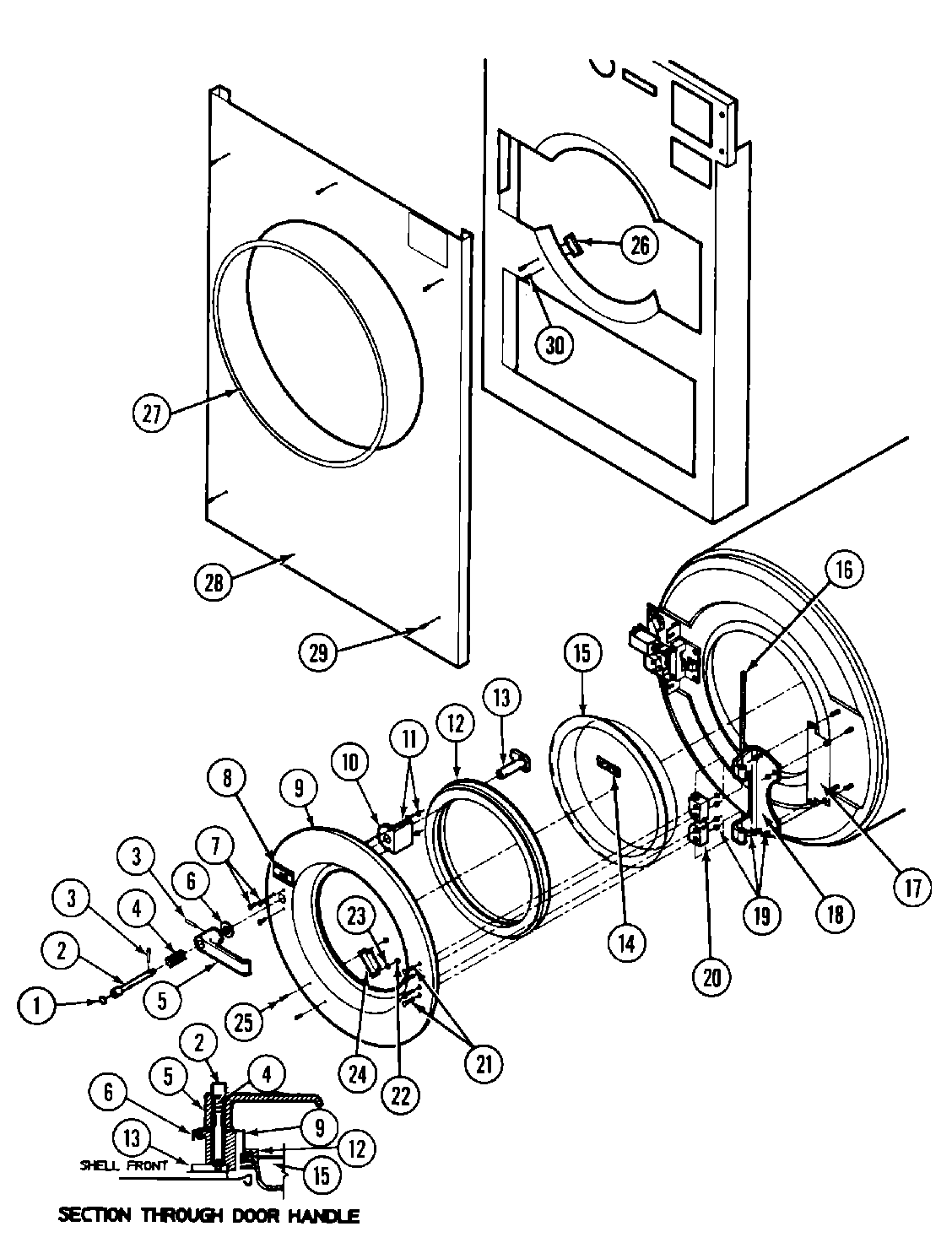

MAF25MC4VS 05 – DOOR & RELATED ASSEMBLY (MAF25MC4Vx)
Products
| Position | Product |
|---|---|
| 001 | MAY 24001407 |
| 002 | MAY 24001103 |
| 003 | MAY 24001721 |
| 004 | MAY 24001338 |
| 005 | MAY 24001336 |
| 006 | MAY 24001339 |
| 007 | MAY 24001341 |
| 008 | MAY 24001462 |
| 009 | MAY 24001636 |
| 009 | DOOR ASSY. (COMPLETE) |
| 010 | MAY 24001340 |
| 011 | MAY 24001342 |
| 012 | MAY 24001075 |
| 013 | MAY 24001343 |
| 014 | MAY 24001465 |
| 015 | MAY 24001098 |
| 016 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 017 | MAY 24001466 |
| 018 | MAY 24001333 |
| 019 | MAY 24001305 |
| 020 | MAY 24001334 |
| 021 | MAY 24001467 |
| 022 | MAY 24001417 |
| 023 | MAY 24001415 |
| 024 | MAY 24001470 |
| 025 | MAY 24001414 |
| 026 | MAY 24001472 |
| 027 | MAY 24001185 |
| 028 | MAY 24001135 |
| 028 | MAY 24001136 |
| 028 | MAY 24001137 |
| 028 | DOWEL PIN FOR HANDLE |
| 029 | MAY 24001474 |
| 030 | MAY 24001475 |
