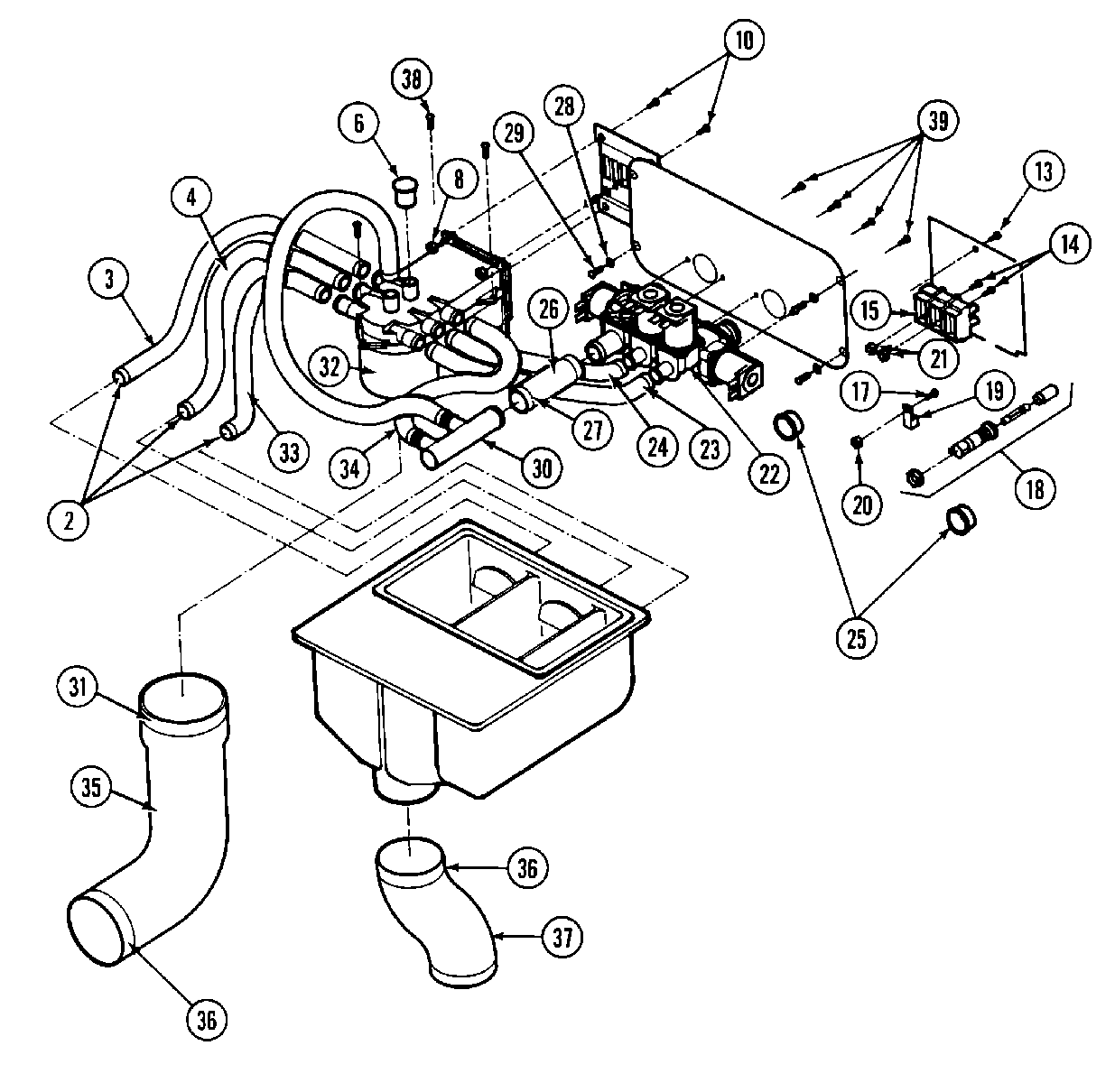

MAF25PC2 02 – SUPPLY DISPENSER ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY 24001422 |
| 001 | DISPENSER, SUPPLY (COIN) |
| 002 | MAY 24001423 |
| 006 | MAY 24001424 |
| 007 | MAY 24001031 |
| 009 | MAY 24001426 |
| 010 | MAY 24001414 |
| 011 | MAY 24001428 |
| 012 | COVER, JUNCTION BOX |
| 013 | MAY 24001301 |
| 014 | MAY 24001430 |
| 015 | BLOCK, INPUT POWER (3 WIRE) |
| 015 | MAY 24001628 |
| 016 | MAY 24001225 |
| 017 | MAY 24001432 |
| 018 | MAY 24001433 |
| 019 | MAY 24001434 |
| 020 | MAY 24001342 |
| 021 | MAY 24001425 |
| 022 | MAY 24001226 |
| 025 | MAY 24001436 |
| 027 | MAY 24001438 |
| 028 | MAY 24001439 |
| 029 | MAY 24001440 |
| 030 | MAY 24001441 |
| 031 | MAY 24001282 |
| 032 | MAY 24001032 |
| 034 | MAY 24001405 |
| 034 | DOWEL PIN FOR HANDLE |
| 035 | MAY 24001195 |
| 036 | MAY 24001353 |
| 037 | MAY 24001198 |
| 038 | MAY 24001630 |
| 039 | MAY 24001357 |
