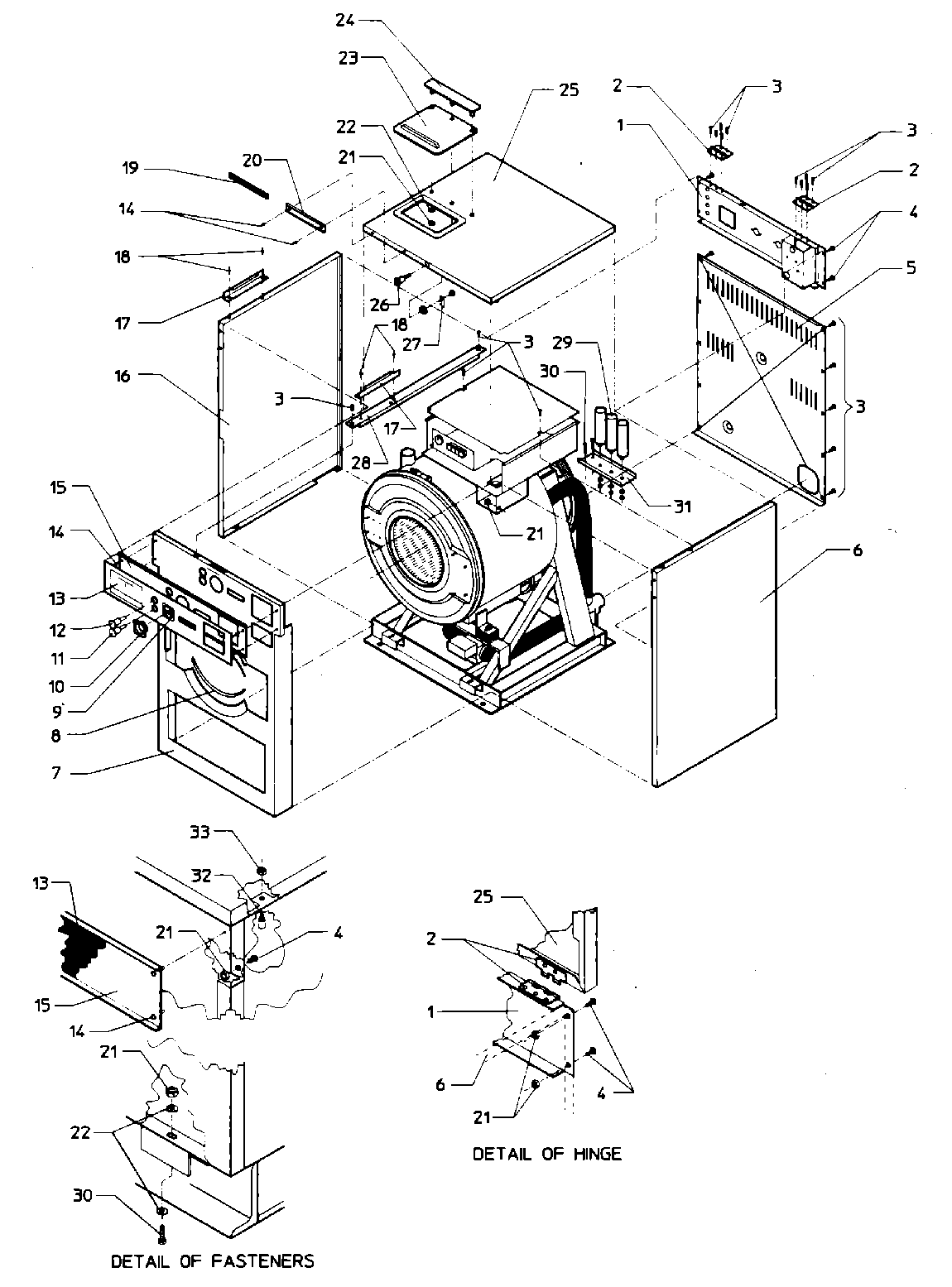

MAF35MC4VW 01 – FINAL ASSEMBLY (MAF35MC4Vx)

Products

Position	Product
001	MAY 24001170
002	MAY 24001676
002	HINGE (TAKE APART)
003	MAY 24001301
004	MAY 24001323
005	MAY 24001403
006	PANEL KIT, SIDE (RT.)18
007	MAY 24001678
008	TRIM, PANEL (INR. FRNT.)
009	MAY 24001679
010	MAY 24001680
011	MAY 24001681
012	MAY 24001682
013	MAY 24001684
014	MAY 24001533
015	DOWEL PIN FOR HANDLE
015	MAY 24002036
016	MAY 24001157
017	MAY 24001539
018	MAY 24001540
020	MAY 24001671
021	MAY 24001510
022	MAY 24001295
023	COVER, SOAP DISPENSER
024	MAY 24001542
025	COVER ASSY KIT, TOP
026	MAY 24001220
027	MAY 24001221
028	MAY 24001690
029	CAPACITOR (10MF) (W/CENTURY MOTORS)
029	CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS)
029	CAPACITOR W/RES. (130MF) (SINGLE PHASE)
029	CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
030	MAY 24001303
031	MAY 24001674
032	MAY 24001305
033	MAY 24001425
034	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
