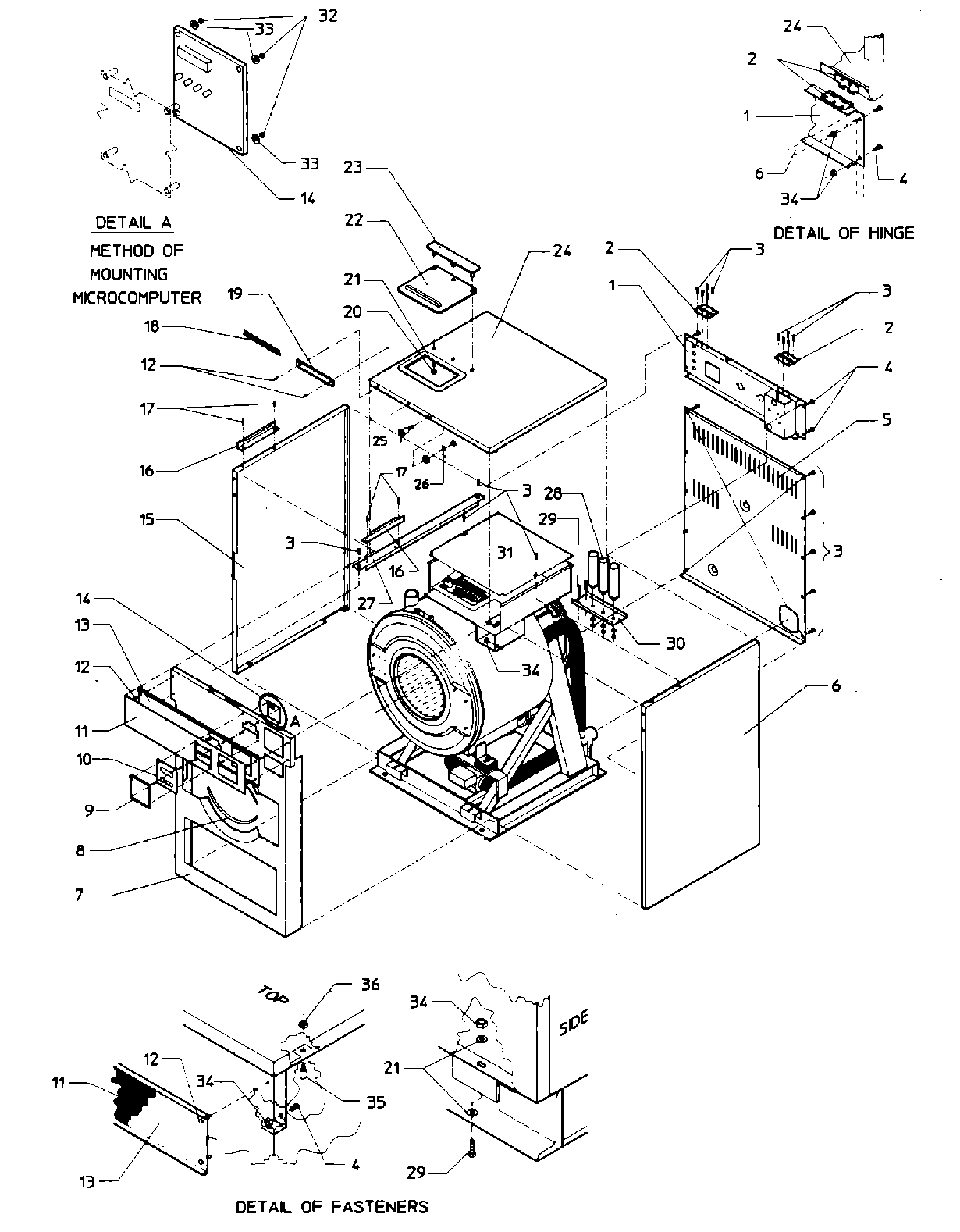

MAF35PN1 01 – MAIN EXPLODED VIEW – COMPUTER MODELS

Products

Position	Product
001	MAY 24001170
002	HINGE (TAKE APART)
002	MAY 24001676
003	MAY 24001301
004	MAY 24001323
005	MAY 24001403
006	MAY 24001159
007	MAY 24001702
008	TRIM, PANEL (INR. FRNT.)
010	MAY 24001112
010	MAY 24001114
012	MAY 24001533
014	MAY 24001010
014	MAY 24001709
015	MAY 24001157
016	MAY 24001539
017	MAY 24001540
019	MAY 24001671
020	MAY 24001510
021	MAY 24001295
022	COVER, SOAP DISPENSER
023	MAY 24001542
024	DOWEL PIN FOR HANDLE
025	MAY 24001220
026	MAY 24001221
027	MAY 24001690
028	MAY 24001238
028	CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
028	MAY 24001239
028	CAPACITOR W/RES. (130MF) (SINGLE PHASE)
028	CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS)
028	CAPACITOR (10MF) (W/CENTURY MOTORS)
029	MAY 24001303
030	MAY 24001674
031	MAY 24001545
032	MAY 24001417
033	MAY 24001415
034	MAY 24001305
035	MAY 24001546
036	MAY 24001425
036	MAY 24001675
