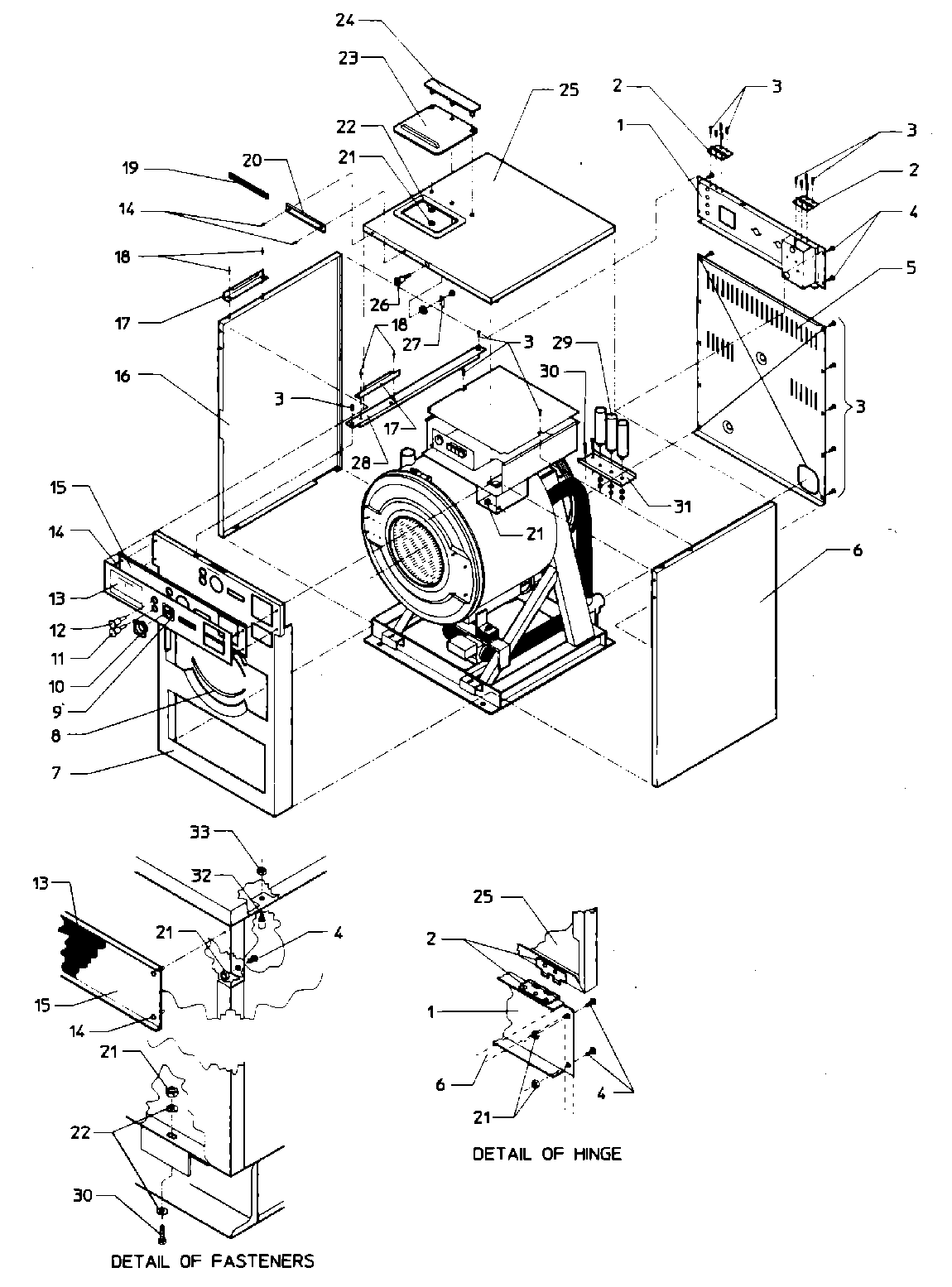

MAF50MC1 01 – MAIN EXPLODED VIEW – FINAL ASSEMBLY

Products

Position	Product
001	MAY 24001171
002	MAY 24001676
002	HINGE (TAKE APART)
003	MAY 24001301
004	MAY 24001323
005	MAY 24001402
008	TRIM, PANEL (INR. FRNT.)
009	MAY 24001679
010	MAY 24001680
011	MAY 24001681
012	MAY 24001682
013	MAY 24001685
014	MAY 24001540
015	MAY 24001688
017	MAY 24001539
018	MAY 24001533
020	MAY 24001671
021	MAY 24001510
022	MAY 24001295
023	COVER, SOAP DISPENSER
024	MAY 24001542
025	DOWEL PIN FOR HANDLE
026	MAY 24001220
027	MAY 24001221
028	MAY 24001691
029	CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
029	MAY 24001239
029	CAPACITOR W/RES. (130MF) (SINGLE PHASE)
030	MAY 24001303
031	MAY 24001674
032	MAY 24001305
033	MAY 24001425
034	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
