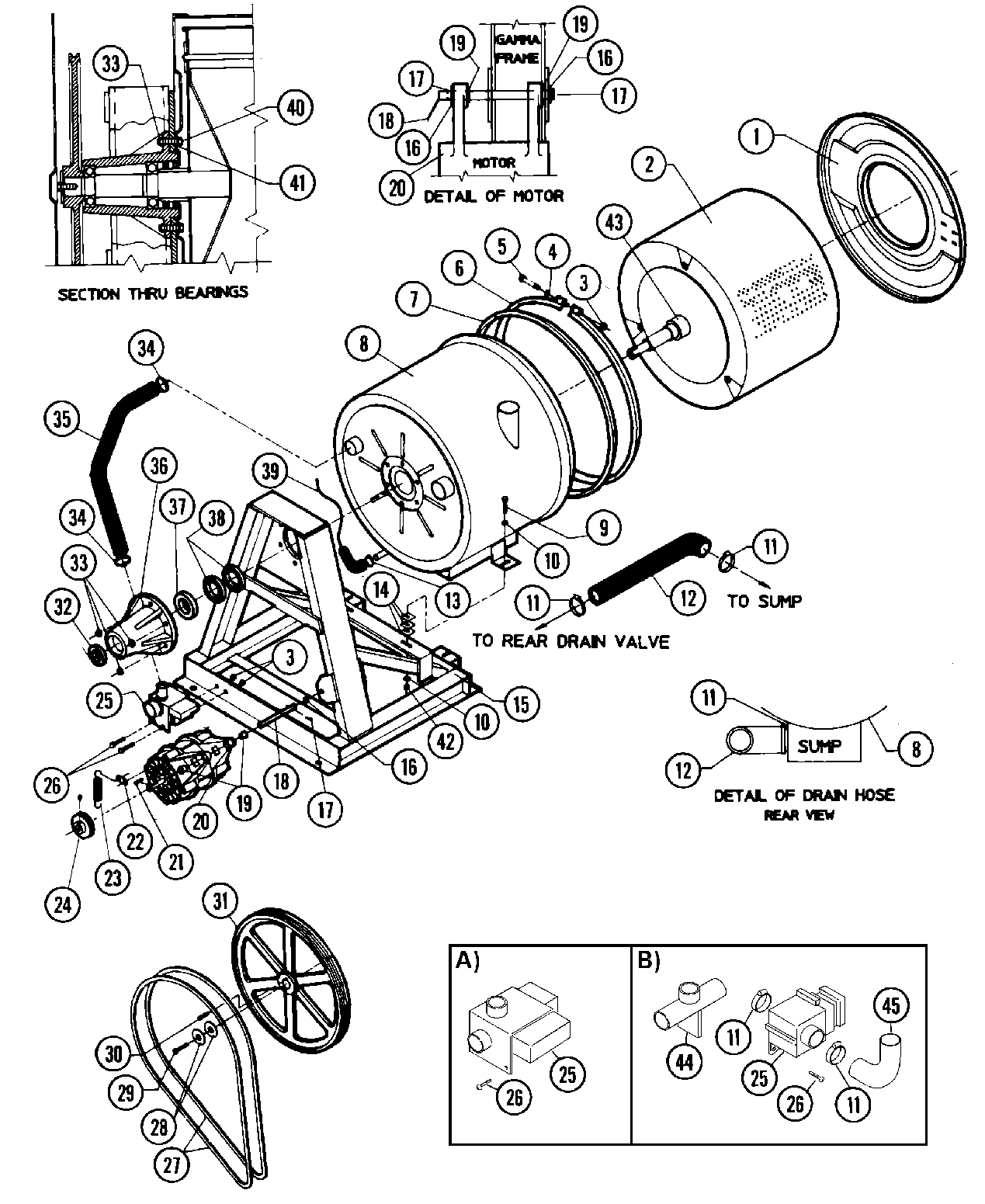

MAF50MC2 06 – SUB ASSEMBLY (MC2/MN2)
Products
| Position | Product |
|---|---|
| 002 | KIT, BASKET (50-2 SPEED) |
| 005 | MAY 24001215 |
| 007 | MAY 24001184 |
| 009 | MAY 24001657 |
| 010 | MAY 24001516 |
| 011 | MAY 24001353 |
| 012 | MAY 24002032 |
| 013 | MAY 24001438 |
| 014 | MAY 24001803 |
| 015 | MAY 24001373 |
| 016 | MAY 24001812 |
| 017 | MAY 24001512 |
| 018 | DOWEL PIN FOR HANDLE |
| 019 | MAY 24001021 |
| 020 | MAY 24001080 |
| 020 | MAY 24001084 |
| 021 | MAY 24001648 |
| 022 | MAY 24001651 |
| 023 | MAY 24001650 |
| 024 | PULLEY, MOTOR |
| 025 | MAY 24001217 |
| 025 | MAY 24001116 |
| 026 | MAY 24001502 |
| 027 | MAY 24001404 |
| 028 | MAY 24001501 |
| 029 | MAY Y24001500 |
| 030 | MAY 24001499 |
| 031 | MAY 24001087 |
| 032 | MAY 24001016 |
| 033 | MAY 24001495 |
| 034 | MAY 24001283 |
| 035 | MAY 24001506 |
| 036 | MAY 24001261 |
| 037 | BEARING, 6312-2RS |
| 038 | SEAL, SHAFT |
| 039 | AIR TRAP |
| 040 | MAY 24001497 |
| 041 | MAY 24001496 |
| 042 | MAY 24001515 |
| 043 | MAY 24001272 |
| 044 | MAY 24001826 |
| 045 | MAY 24001565 |
