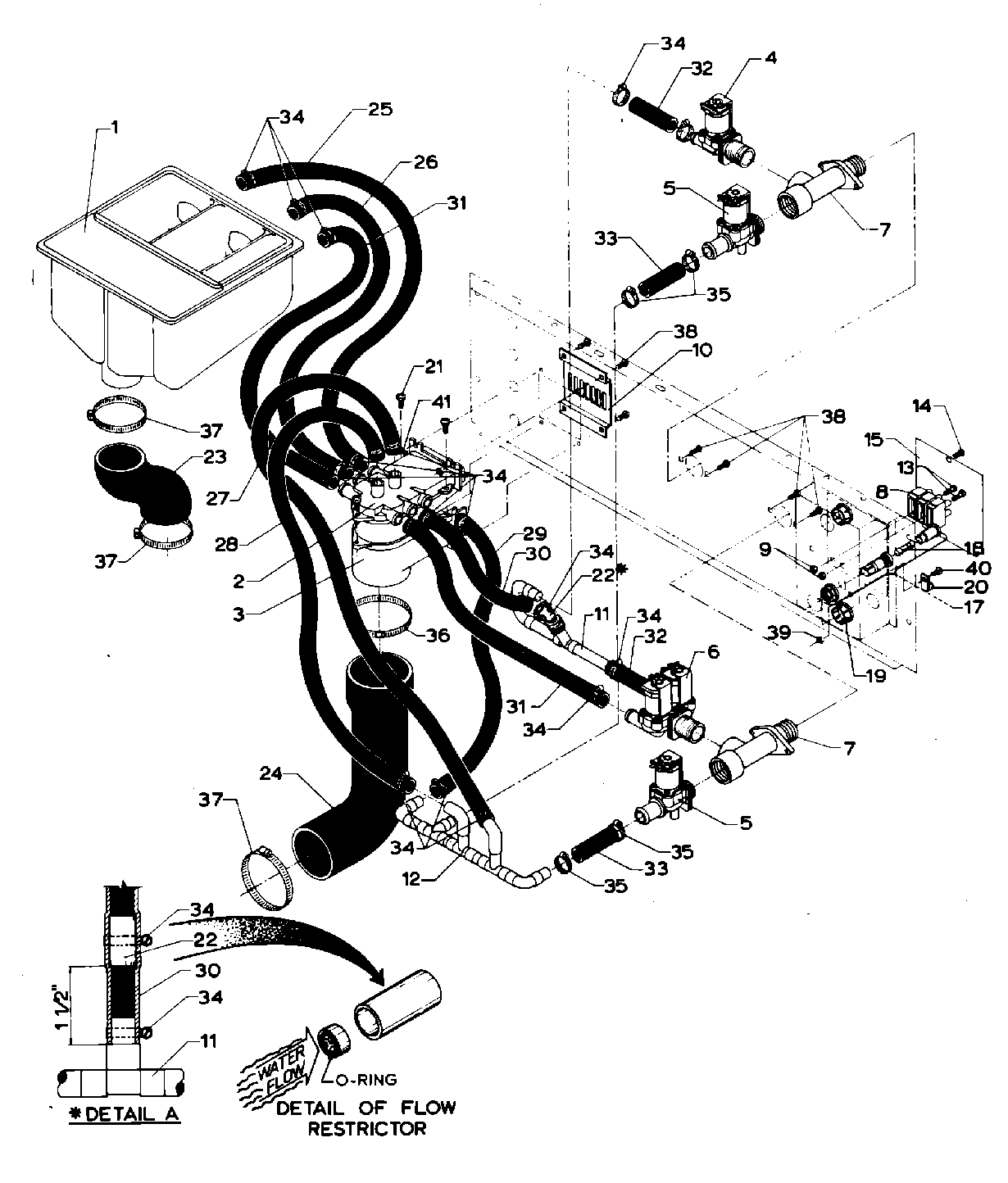

MAF50MC4TL 05 – SOAP DISPENSER (MC4)

Products

Position	Product
001	DISPENSER, SUPPLY (COIN)
002	MAY 24001031
003	MAY 24001032
004	MAY 24001119
007	MAY 24001448
008	BLOCK, INPUT POWER (3 WIRE)
008	MAY 24001366
010	MAY 24001426
011	MAY 24001777
013	MAY 24001430
014	MAY 24001301
015	COVER, JUNCTION BOX
017	MAY 24001433
018	MAY 24001225
019	MAY 24001436
020	MAY 24001434
022	MAY 24001775
023	MAY 24001442
024	MAY 24001033
025	MAY 24001781
026	MAY 24001783
027	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
028	MAY 24001767
029	MAY 24001788
030	MAY 24001771
031	MAY 24001792
033	MAY 24001794
034	MAY 24001423
035	MAY 24001797
036	MAY 24001282
037	MAY 24001353
038	MAY 24001414
039	MAY 24001342
040	MAY 24001432
041	MAY 24001425
