MAF50MC4VL 02 – FINAL ASSEMBLY (MC4)

MAF50MC4VL 02 – FINAL ASSEMBLY (MC4)

Written by

in

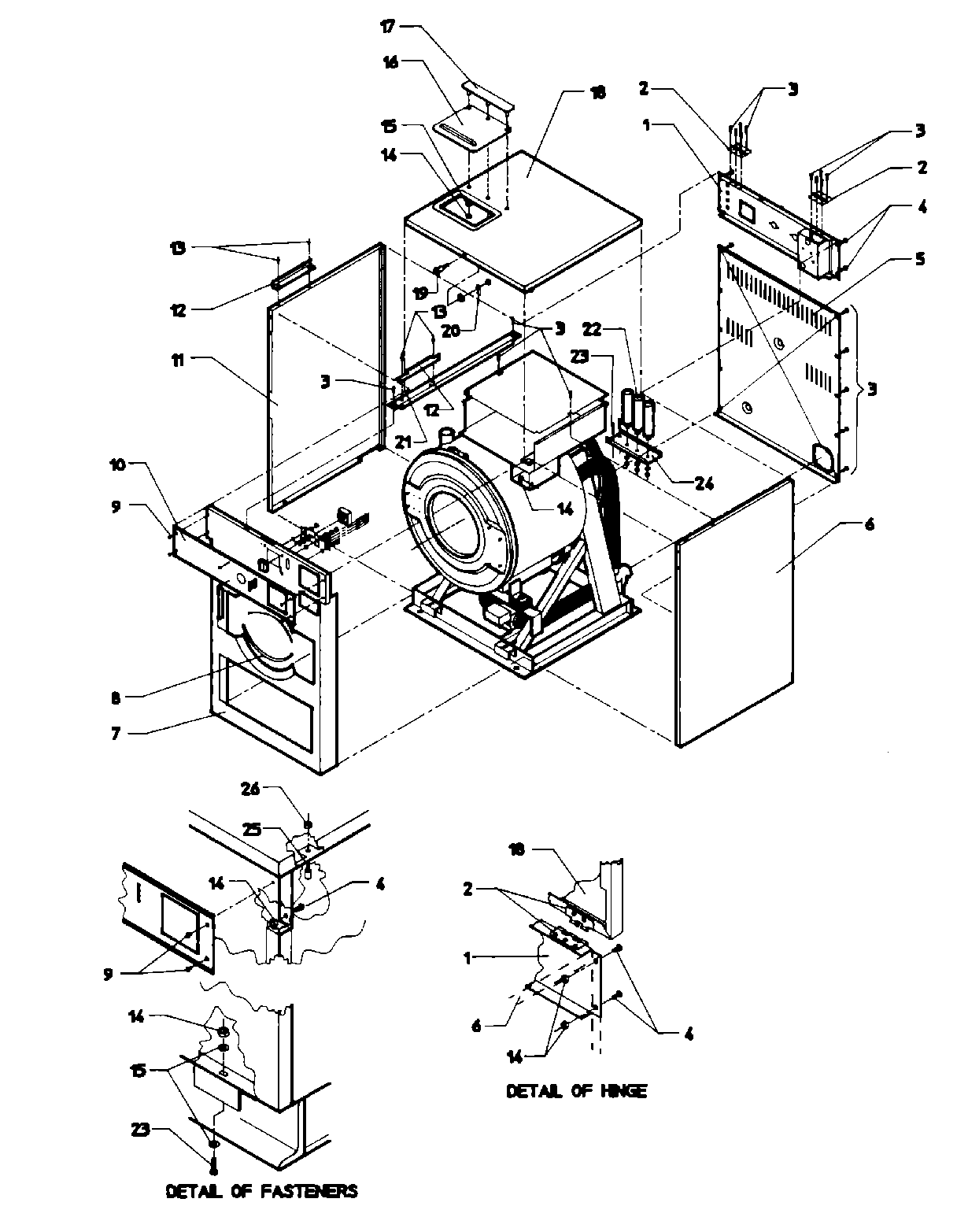

MAF50MC4VL 02 – FINAL ASSEMBLY (MC4)

Products

PositionProduct
001MAY 24001171
002HINGE (TAKE APART)
003MAY 24001301
004MAY 24001323
005MAY 24001402
008TRIM, PANEL (INR. FRNT.)
009MAY 24001212
012MAY 24001539
013MAY 24001540
014MAY 24001510
015MAY 24001304
016COVER, SOAP DISPENSER
017MAY 24001542
019MAY 24001220
020MAY 24001221
021MAY 24001691
022MAY 24001239
022CAPACITOR W/RES. (130MF) (SINGLE PHASE)
022CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
023MAY 24001303
024MAY 24001674
025DOWEL PIN FOR HANDLE
026MAY 24001425
