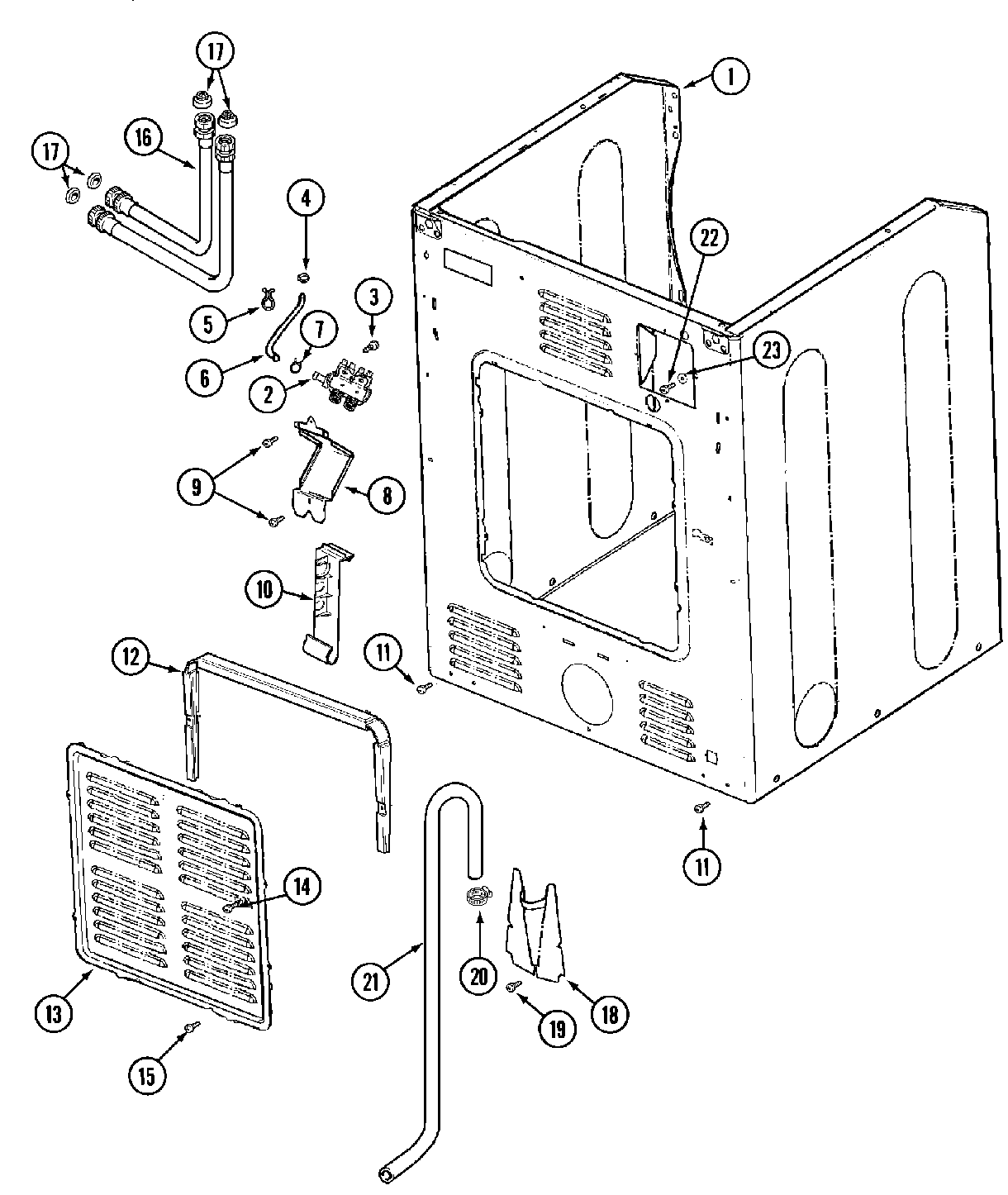

MAH14PDAAQ 04 – CABINET-REAR (MAH14PDAAQ)

MAH14PDAAQ 04 – CABINET-REAR (MAH14PDAAQ)

Written by

in

MAH14PDAAQ 04 – CABINET-REAR (MAH14PDAAQ)

Products

PositionProduct
002MAY 22002101
003MAY Y313561
005WP74007164 Whirlpool Purse Lock
006MAY 22001987
007WP596669 Whirlpool Hose Clamp
008MAY 22002089
010MAY 22002076
012MAY 22002022
013MAY 22002092
014WP67006908 Whirlpool Refrigerator Screw
015WP489128 Whirlpool Refrigerator Screw
016202860 Whirlpool Inlet Hose 5 FT
017MAY Y013783
018MAY 22002093
019W11573574 Whirlpool Screw
020WP285655 Whirlpool Hose Clamp
021MAY 22002893
02112001807 Whirlpool Primary Drain Hose Replacement Kit
021WP22002892 Whirlpool Retainer
023DOWEL PIN FOR HANDLE
