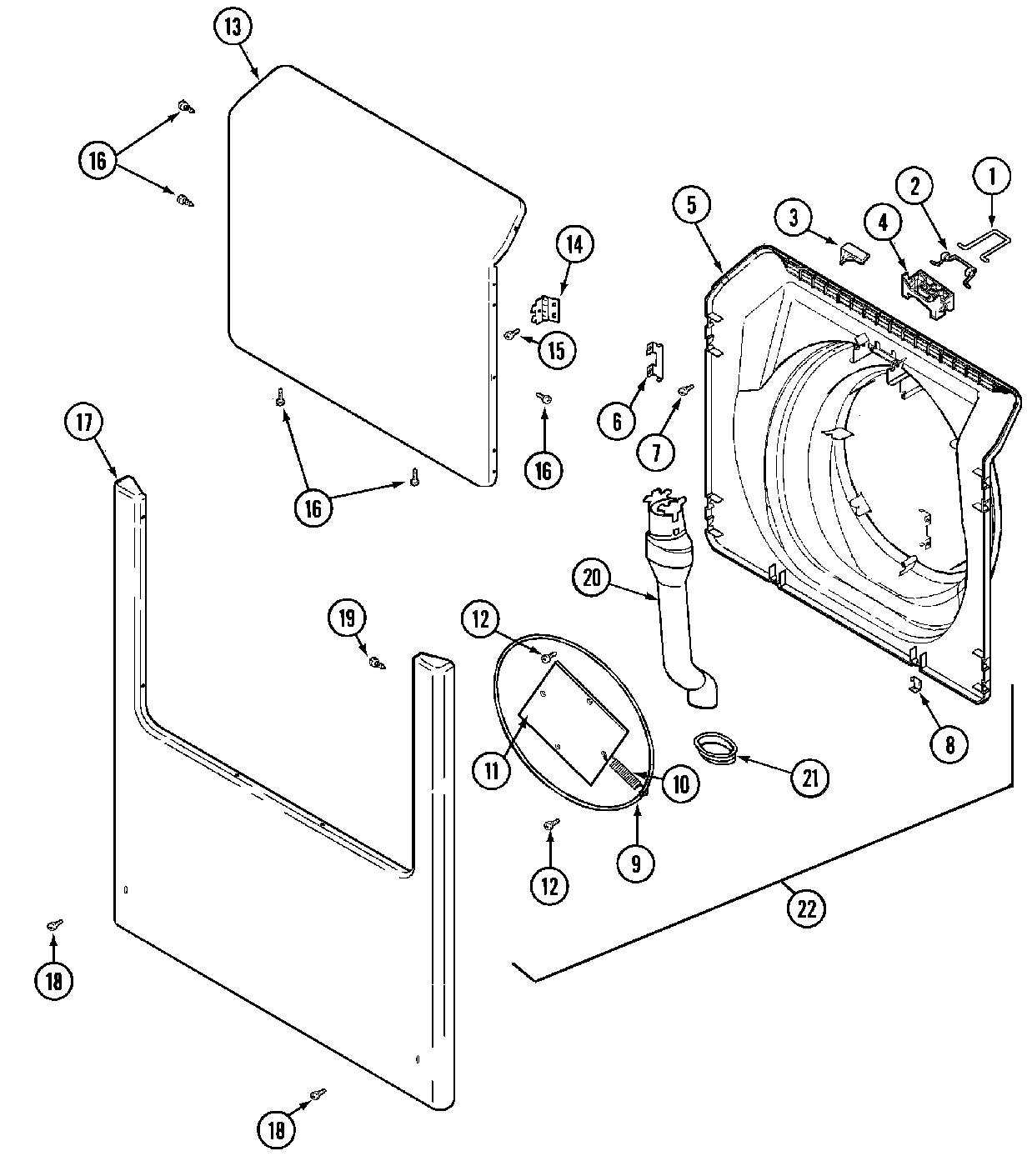

MAH14PDAAQ 05 – DOOR & FRONT PANEL (MAH14PDAAQ)

Products

PositionProduct
001MAY 22002002
002MAY 22002003
003MAY 22002168
004MAY 22003078
004MAY 22002615
005MAY 22002038
007MAY 22002039
008WIREFRAME
009MAY 22002356
010MAY 22002094
011SCREW
012MAY 22002660
012MAY 22002333
013WP22002798 Whirlpool Door Hinge
014WP98006631 Whirlpool Screw
015SCREW
016WP22001496 Whirlpool Screw
017PANEL, FRONT (BISQ)
018WP22002012 Whirlpool Screw Assembly
018MAY 22002244
020MAY 22002990
021WP22003075 Whirlpool Grommet
022MAY 22003085
