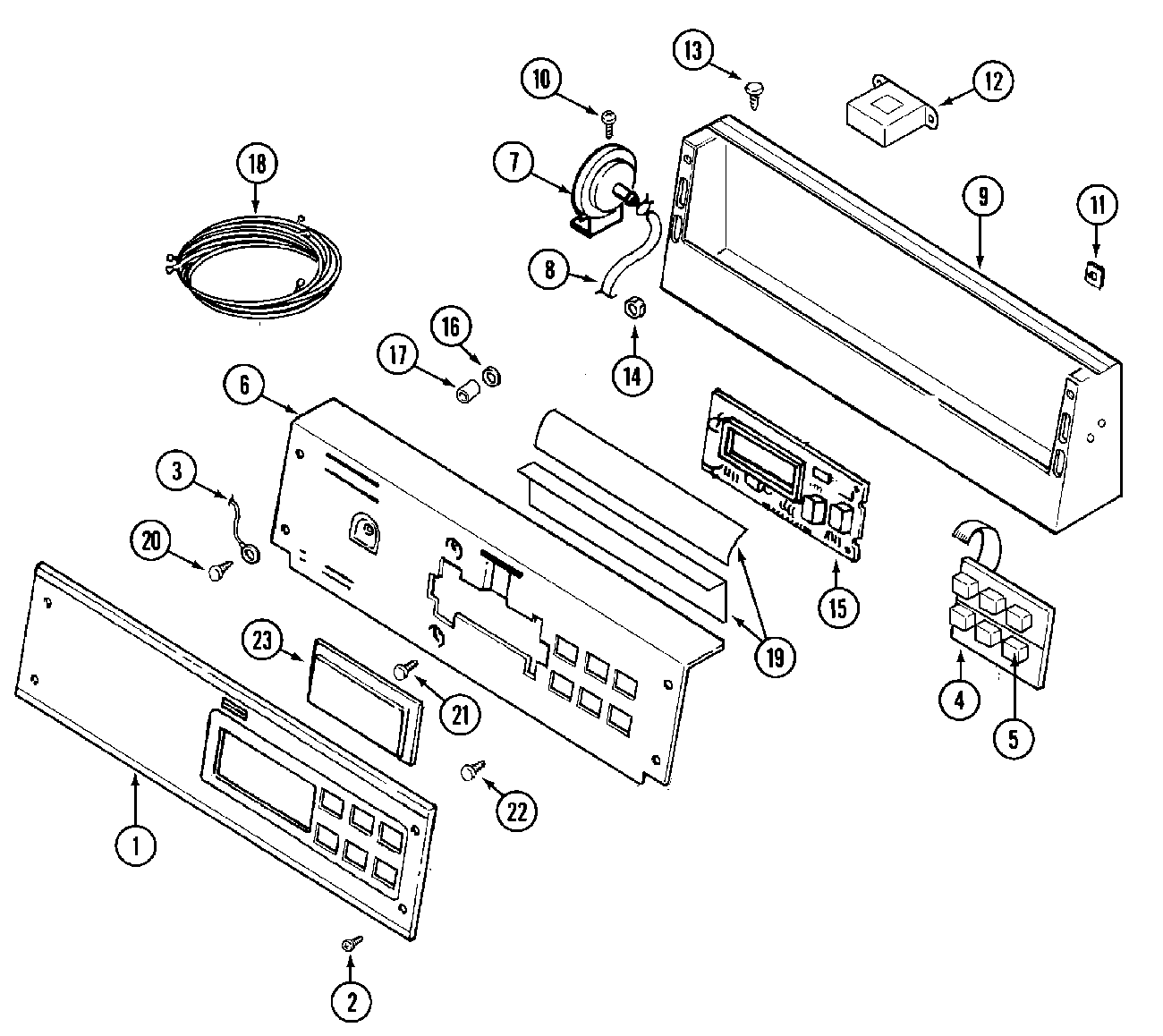

MAH14PDABW 01 – CONTROL PANEL

Products

Position	Product
001	MAY 22002043
002	WPW10131119 Whirlpool Screw
003	MAY 205810
004	WPW10135389 Whirlpool Switch
005	WPW10424308 Whirlpool Push Button
006	MAY 22002037
006	SWITCH BRKT & BACK BRKT (WHT)
007	WP22002921 Whirlpool Pressure Switch
008	WP22002010 Whirlpool Air Hose
009	CONSOLE (ALM)
009	MAY 22002329
010	WP489128 Whirlpool Refrigerator Screw
011	MAY 215003
012	MAY 22001960
013	MAY 211251
014	74005230 Whirlpool Oven Lock Nut (8-32)
015	MAY 22002328
015	MAY 22002030
016	M0282005 Whirlpool Nut
017	MAY 33001204
018	MAY 22002862
018	MAY 22002110
018	MAY 22002404
018	MAY 22002471
018	MAY 22001966
018	DOWEL PIN FOR HANDLE
018	MAY 22002254
019	MAY 22001511
020	WP489399 Whirlpool Refrigerator Screw
021	SCREW, CIRCUIT BOARD
022	W10756178 Whirlpool Screw
023	WPW10131114 Whirlpool Cover Assembly
