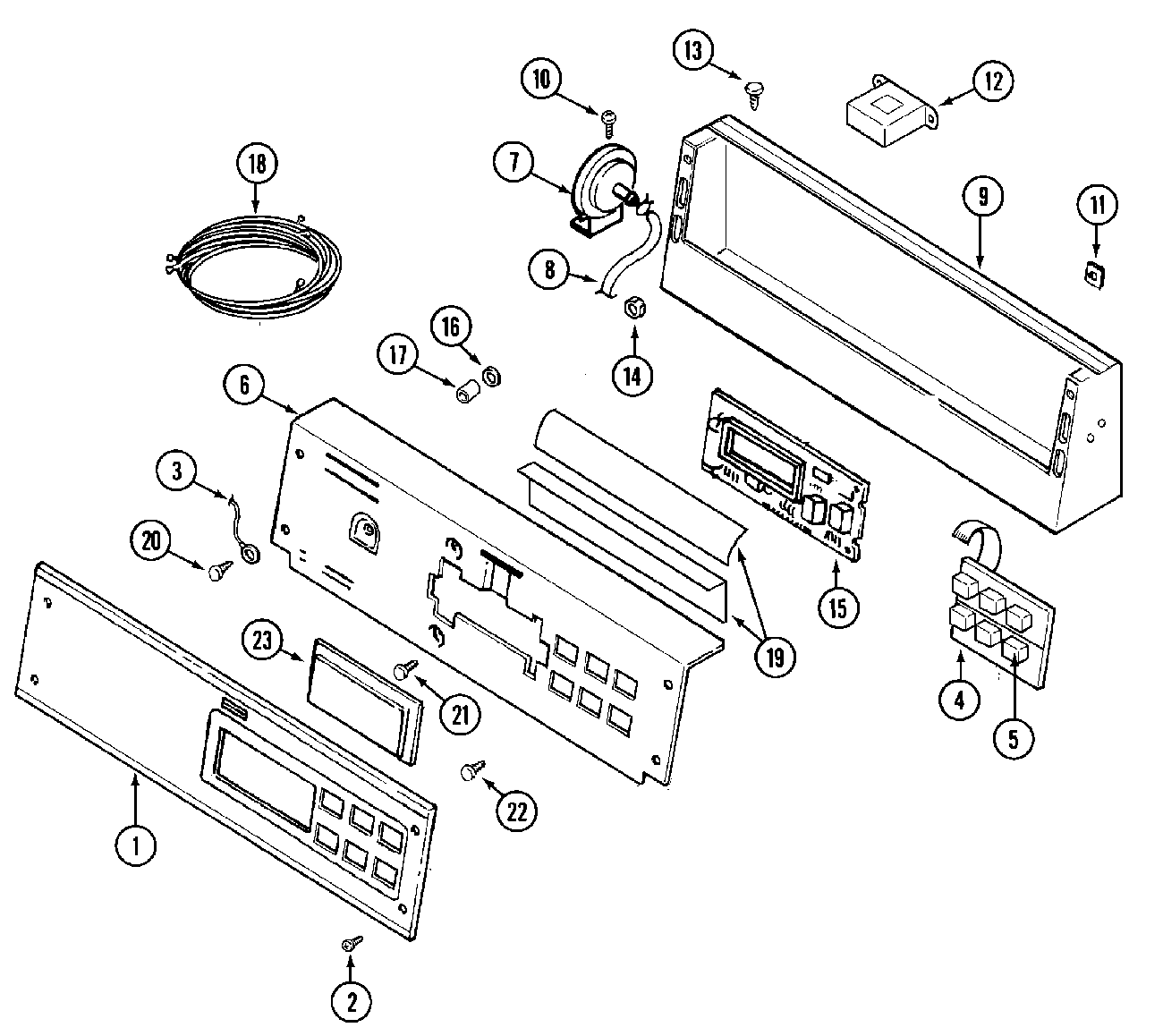

MAH14PDCBW 01 – CONTROL PANEL

MAH14PDCBW 01 – CONTROL PANEL

Written by

in

MAH14PDCBW 01 – CONTROL PANEL

Products

PositionProduct
001MAY 22002043
002WPW10131119 Whirlpool Screw
003MAY 205810
004WPW10135389 Whirlpool Switch
005WPW10424308 Whirlpool Push Button
006SWITCH BRKT & BACK BRKT (WHT)
006MAY 22002929
007WP22002921 Whirlpool Pressure Switch
008WP22002010 Whirlpool Air Hose
009MAY 22002329
009MAY 22002889
010WP489128 Whirlpool Refrigerator Screw
011MAY 215003
012MAY 22001960
013MAY 211251
01474005230 Whirlpool Oven Lock Nut (8-32)
015MAY 22002732
016M0282005 Whirlpool Nut
017MAY 33001204
018DOWEL PIN FOR HANDLE
019MAY 22001511
020WP489399 Whirlpool Refrigerator Screw
021SCREW, CIRCUIT BOARD
022W10756178 Whirlpool Screw
023WPW10131114 Whirlpool Cover Assembly
