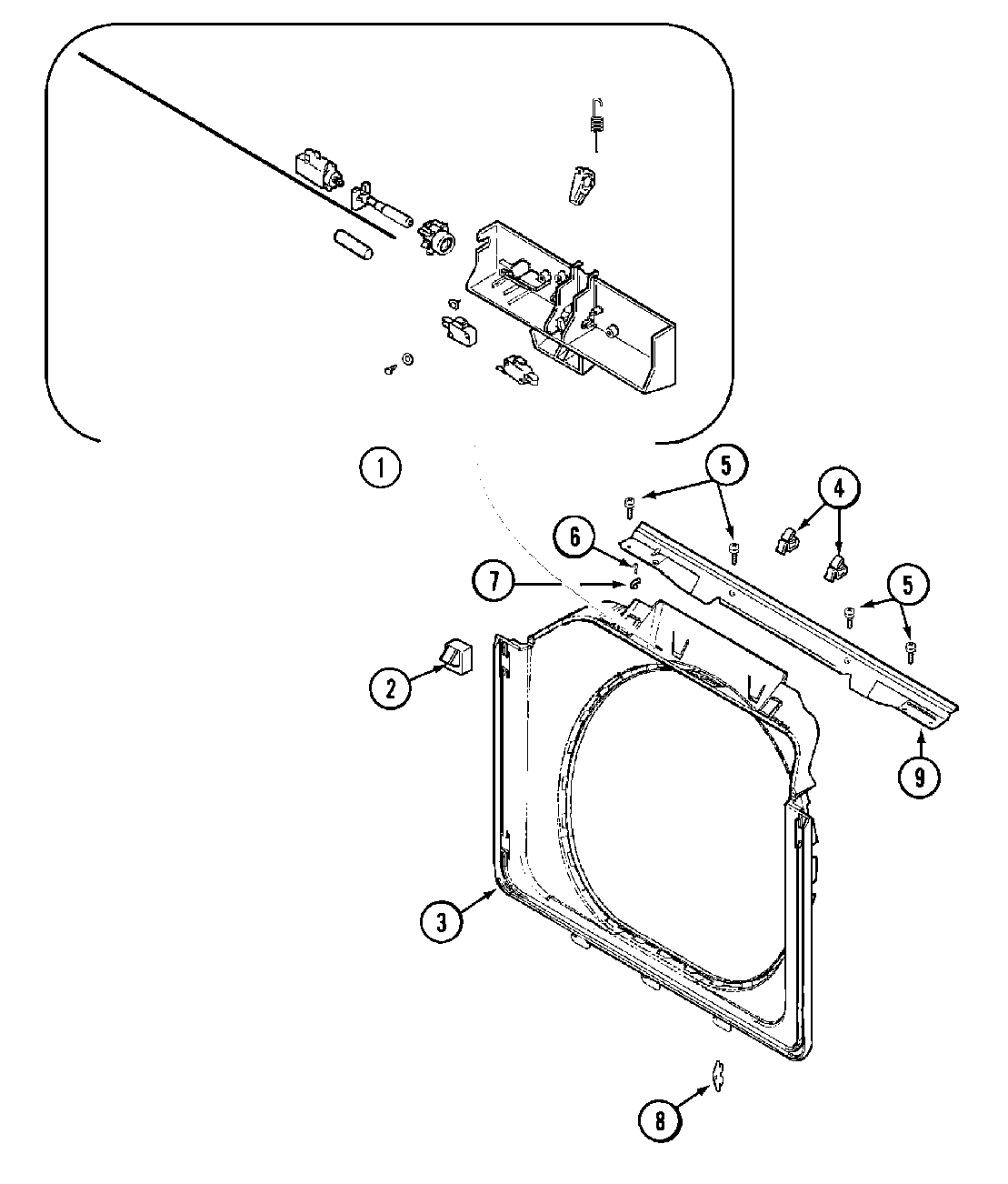

MAH14PNAWW 04 – DOOR SHROUD & DOOR LATCH ASSEMBLY

MAH14PNAWW 04 – DOOR SHROUD & DOOR LATCH ASSEMBLY

Written by

in

MAH14PNAWW 04 – DOOR SHROUD & DOOR LATCH ASSEMBLY

Products

PositionProduct
001DOWEL PIN FOR HANDLE
001MAY 22003722
001WP22002162 Whirlpool Door Switch
00112002535 Whirlpool Dispenser Wax Motor Kit
001MAY 22003718
001MAY 22003715
001MAY 22002164
001MAY 22003055
001MAY 22003716
00122003717 Whirlpool Latch Spring
001MAY 22002165
001MAY 22002158
001MAY 22003719
001MAY 22003720
001MAY 22002957
001WP241877 Whirlpool Screw
001MAY 22001352
002MAY 22002046
003SHROUD, PLASTIC (WHT)
004MAY Y310376
005W11573574 Whirlpool Screw
006WP489128 Whirlpool Refrigerator Screw
007WP308605 Whirlpool Refrigerator Clamp
00812001994 Whirlpool Primary Hinge Kit
009MAY 22002015
