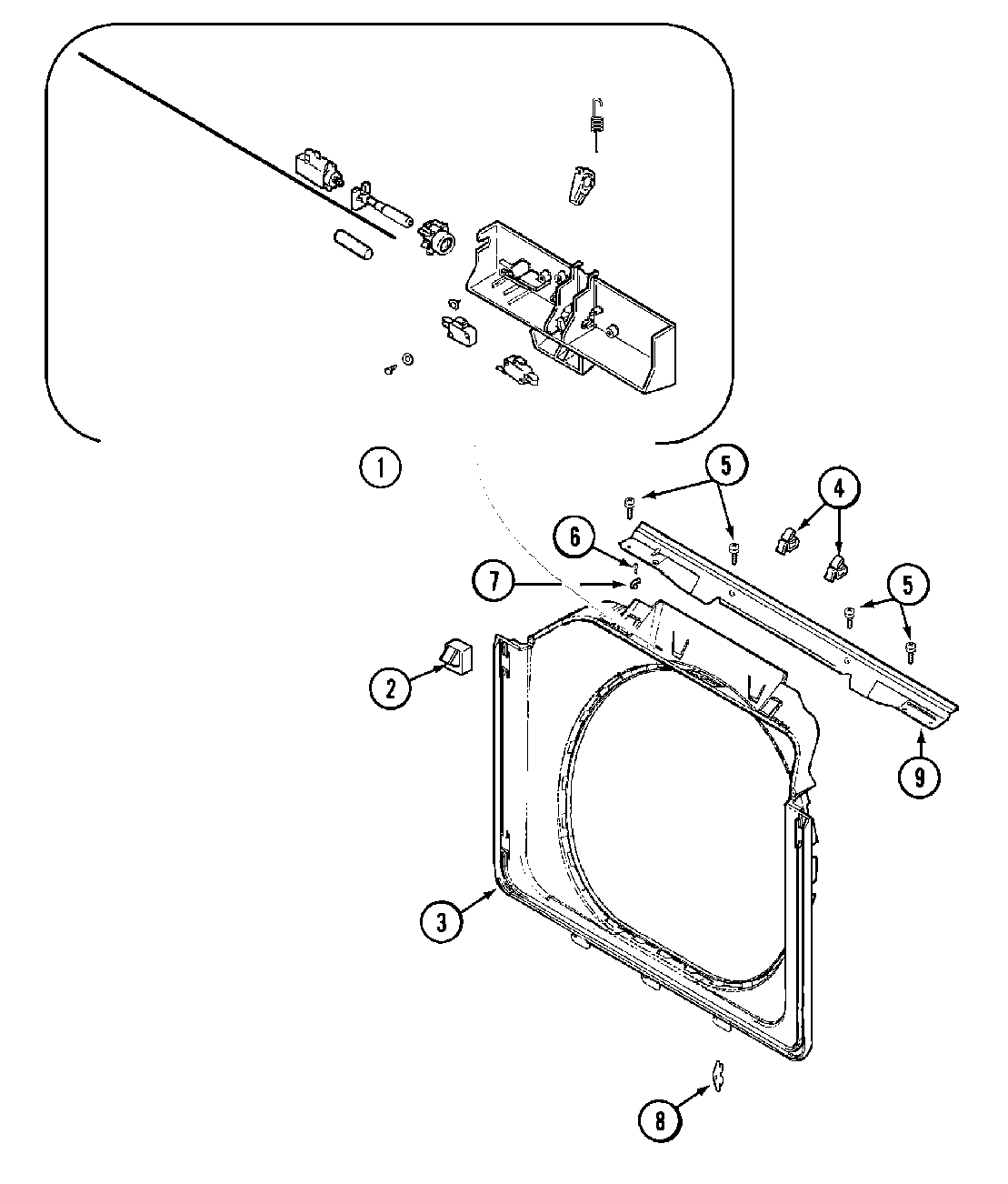

MAH14PRAWW 04 – DOOR SHROUD & DOOR LATCH ASSEMBLY

Written by

Products

Position	Product
001	DOWEL PIN FOR HANDLE
001	MAY 22002957
002	MAY 22002046
003	SHROUD, PLASTIC (WHT)
004	MAY Y310376
005	W11573574 Whirlpool Screw
006	WP489128 Whirlpool Refrigerator Screw
007	WP308605 Whirlpool Refrigerator Clamp
008	12001994 Whirlpool Primary Hinge Kit
009	MAY 22002015
