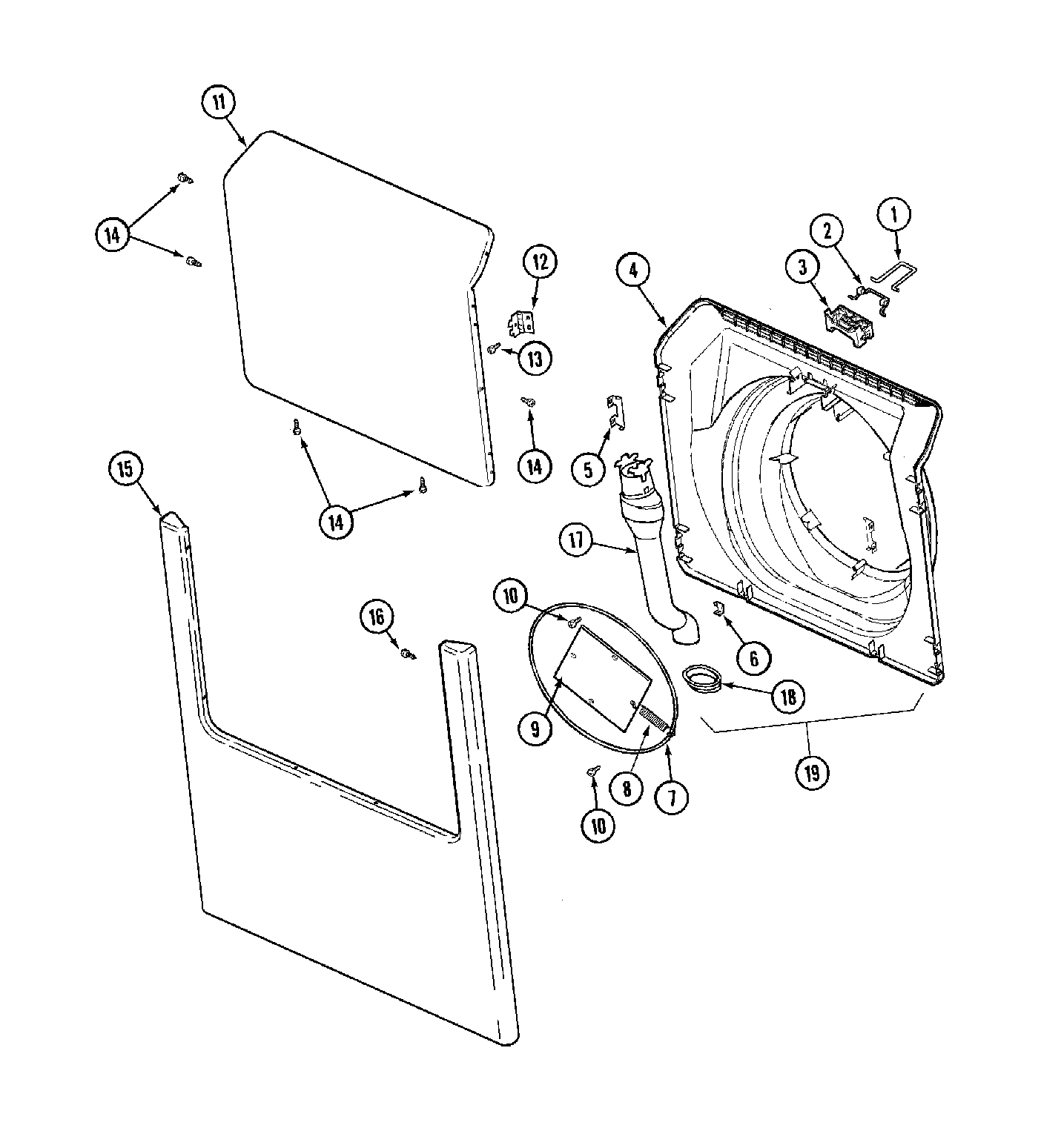

MAH20PDA3W 04 – DOOR & FRONT PANEL

Products

Position	Product
001	MAY 22002002
002	MAY 22002003
003	MAY 22002168
004	MAY 22003800
004	22003083 Whirlpool Door Liner Assembly
005	MAY 22002038
006	MAY 22002039
007	WIREFRAME
008	MAY 22002356
009	MAY 22002094
010	SCREW
010	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
011	MAY 22001979
012	WP22002798 Whirlpool Door Hinge
013	WP98006631 Whirlpool Screw
014	MAY 22002063
015	22002836 Whirlpool Oven Front Primary Panel
015	WP22002049 Whirlpool Washer/Dryer Clip
016	MAY 22002244
016	WP22002012 Whirlpool Screw Assembly
017	MAY 22002990
018	WP22003075 Whirlpool Grommet
