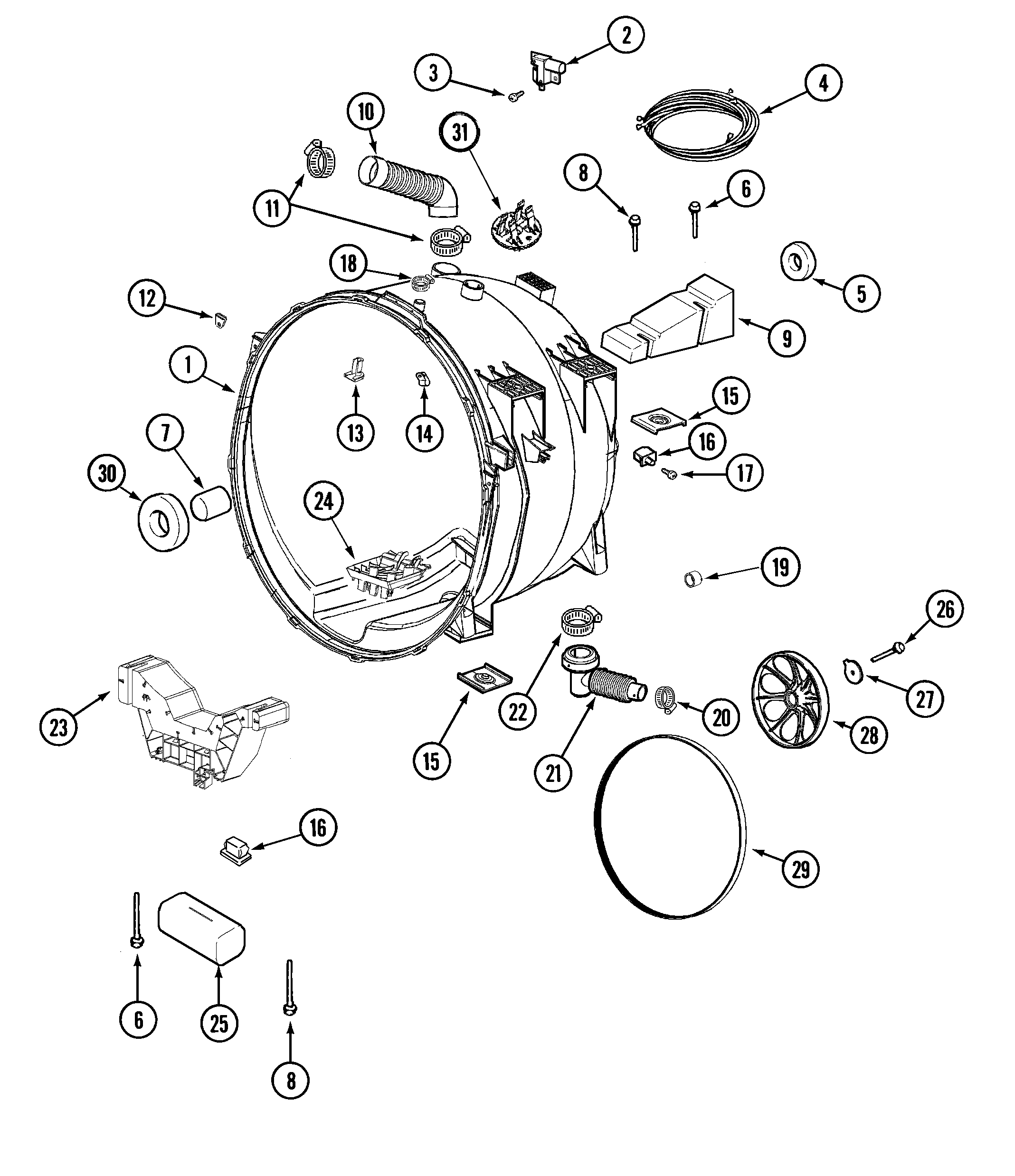

MAH21PDA3W 03 – OUTER TUB

MAH21PDA3W 03 – OUTER TUB

Written by

in

MAH21PDA3W 03 – OUTER TUB

Products

PositionProduct
00122004465 Whirlpool Tub Assembly Outer
002MAY 22003302
003SCREW, No.8X1/2 HEX WASHER HEAD
004MAY 22003271
004MAY 22003684
004MAY 22004052
005BALL BEARING, RADIAL—-S
006MAY 22003615
007MAY 22002935
009MAY 22002102
010WP22002083 Whirlpool Injector Hose
011WP616099 Whirlpool Clamp
012MAY 22002103
01322004310 Whirlpool Water Deflector
014CLIP, WIRE HARNESS
015MAY 22002065
016MAY 22003065
016MAY 22004051
016W11573574 Whirlpool Screw
016WP22002044 Whirlpool Switch
017910187 Whirlpool Screw
018WP596669 Whirlpool Hose Clamp
019MAY 22003261
020WP285655 Whirlpool Hose Clamp
021WP22003262 Whirlpool Tub Hose Assembly
022WP696392 Whirlpool Hose Clamp
023WEIGHT ASSEMBLY (FRT)
023MAY 22003826
024MAY 22002059
024MAY 22003710
025MAY 22003225
025MAY 22003827
026WP22003937 Whirlpool Screw
027WP22003936 Whirlpool Washer
028MAY 22001998
02912001788 Whirlpool Washer Drive Belt & Isolator Kit
030MAY 22002934
031MAY 22002797
