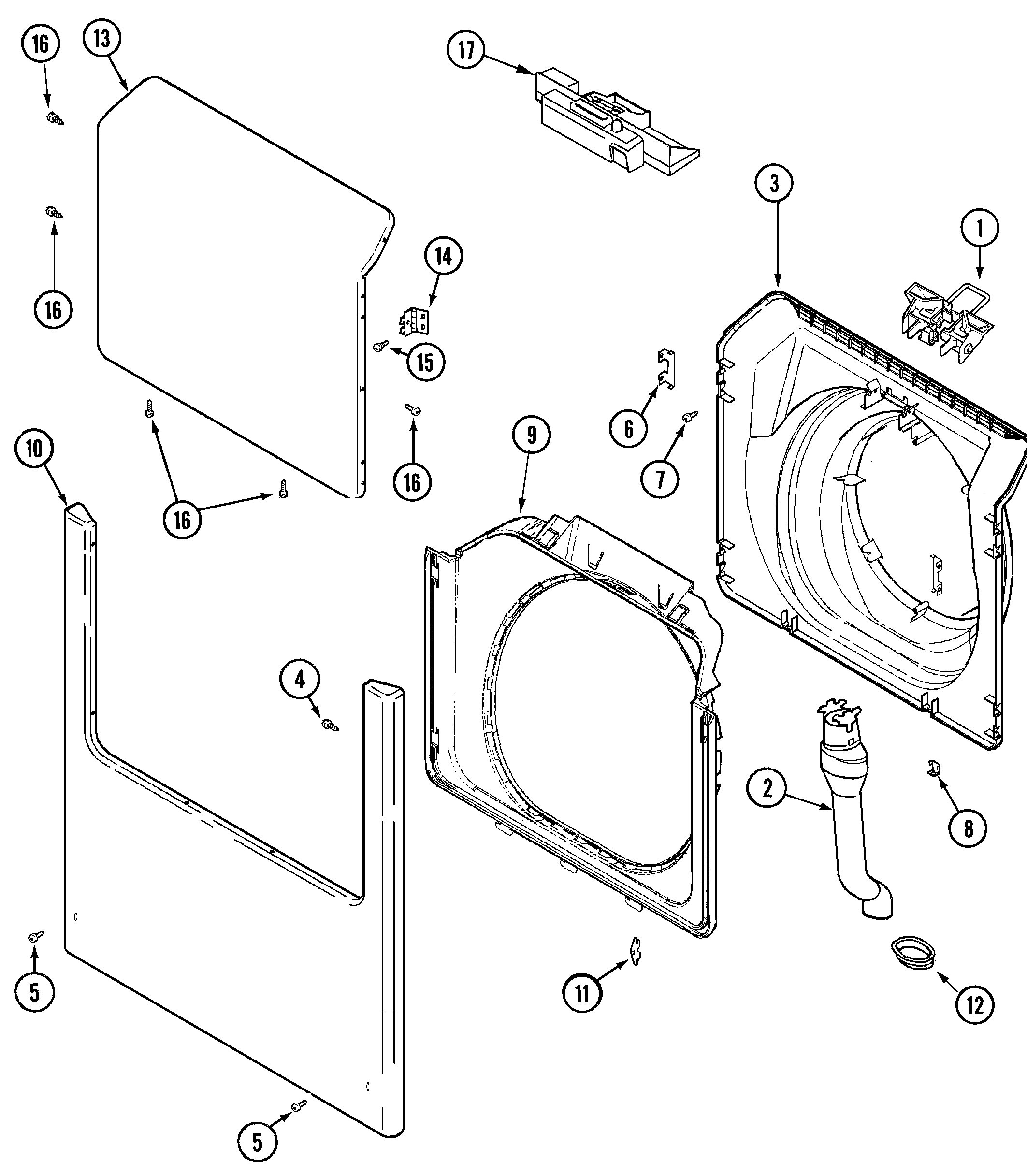

MAH21PDAWW 09 – DOOR, SHROUD, FRONT PANEL & LATCH ASSY

MAH21PDAWW 09 – DOOR, SHROUD, FRONT PANEL & LATCH ASSY

Written by

in

MAH21PDAWW 09 – DOOR, SHROUD, FRONT PANEL & LATCH ASSY

Products

PositionProduct
001WP22003269 Whirlpool Door Lock Assembly
002MAY 22003576
003MAY 22003279
003WP22003275 Whirlpool Inner Door Panel
004MAY 22002244
005SCREW, WATER VALVE BRACKET
006MAY 22002038
007SCREW
008MAY 22002039
009MAY 22003516
010MAY 33002396
01022002836 Whirlpool Oven Front Primary Panel
011MAY 22002612
011WP33001764 Whirlpool Cover
011MAY 33002349
01112001994 Whirlpool Primary Hinge Kit
011WP33001787 Whirlpool Screw
012WP22003075 Whirlpool Grommet
013MAY 22003786
013MAY 22003785
014WP22002798 Whirlpool Door Hinge
015WP98006631 Whirlpool Screw
016MAY 22002063
016SCREW
017WP22003706 Whirlpool Door Lock
