MAH21PDCXQ 06 – OUTER TUB

MAH21PDCXQ 06 – OUTER TUB

Written by

in

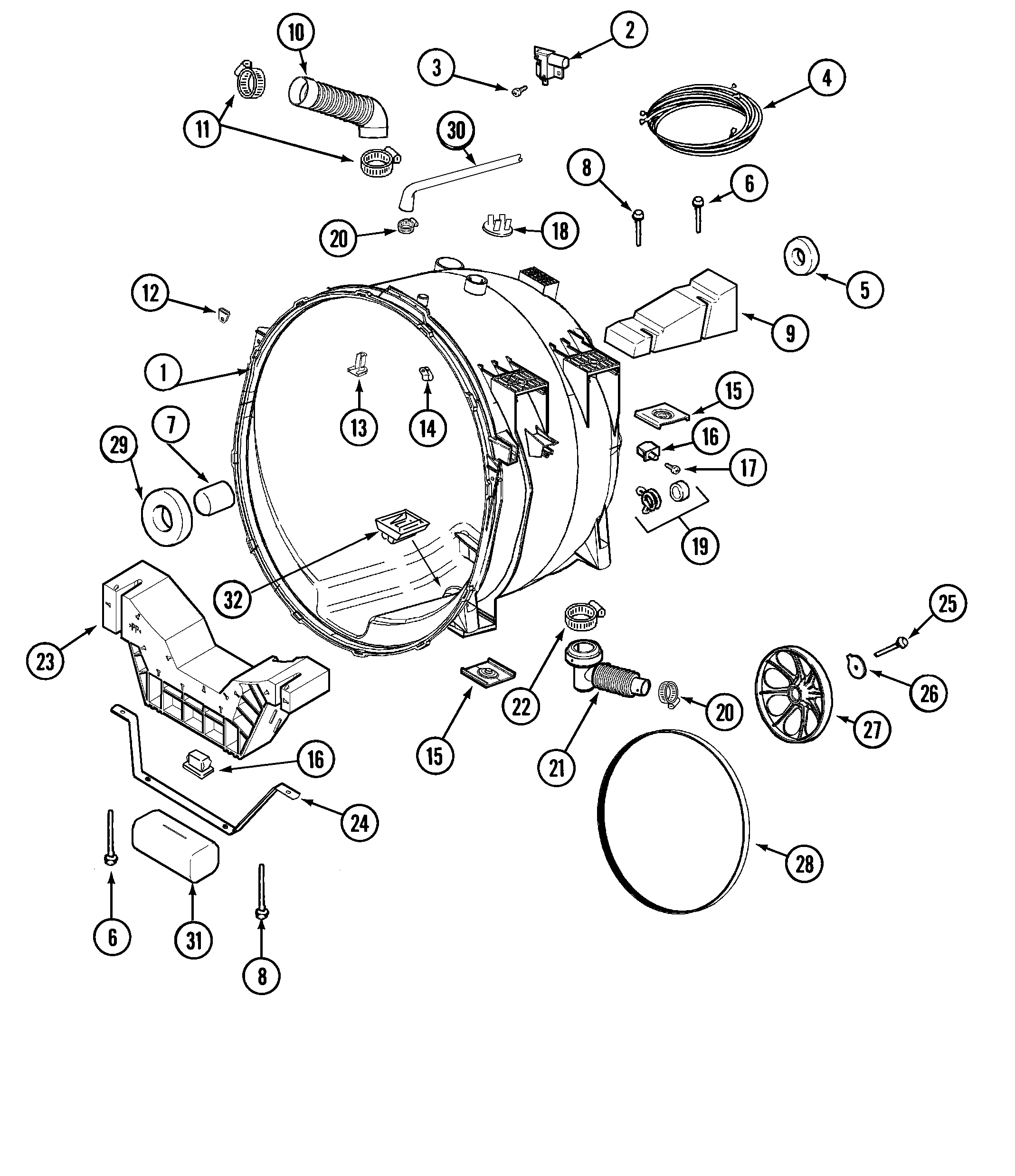

MAH21PDCXQ 06 – OUTER TUB

Products

PositionProduct
00122004465 Whirlpool Tub Assembly Outer
002MAY 22002045
003WP9740848 Whirlpool Dishwasher Screw
004MAY 22003065
004MAY 22004052
004MAY 22003684
005BEARING- R
006MAY 22003615
007MAY 22002935
008MAY 22003828
009MAY 22002102
010WP22002083 Whirlpool Injector Hose
011WP616099 Whirlpool Clamp
012MAY 22002103
01322004310 Whirlpool Water Deflector
014CLIP, WIRE HARNESS
015MAY 22002065
016WP22002044 Whirlpool Switch
017910187 Whirlpool Screw
018MAY 22002797
019MAY 22003261
019WP285655 Whirlpool Hose Clamp
020WP596669 Whirlpool Hose Clamp
021WP22003262 Whirlpool Tub Hose Assembly
022WP696392 Whirlpool Hose Clamp
023WEIGHT ASSEMBLY (FRT)
023MAY 22003826
024MAY 22002008
025WP22003937 Whirlpool Screw
026WP22003936 Whirlpool Washer
02722002315 Whirlpool Pulley Assembly
028MAY 22002313
02812001788 Whirlpool Washer Drive Belt & Isolator Kit
029MAY 22002934
030HOSE, SHOWER (9 1/2“)
030WP74007164 Whirlpool Purse Lock
031MAY 22003225
031MAY 22003827
032MAY 22003257
032WP400021-1 Whirlpool Screw
