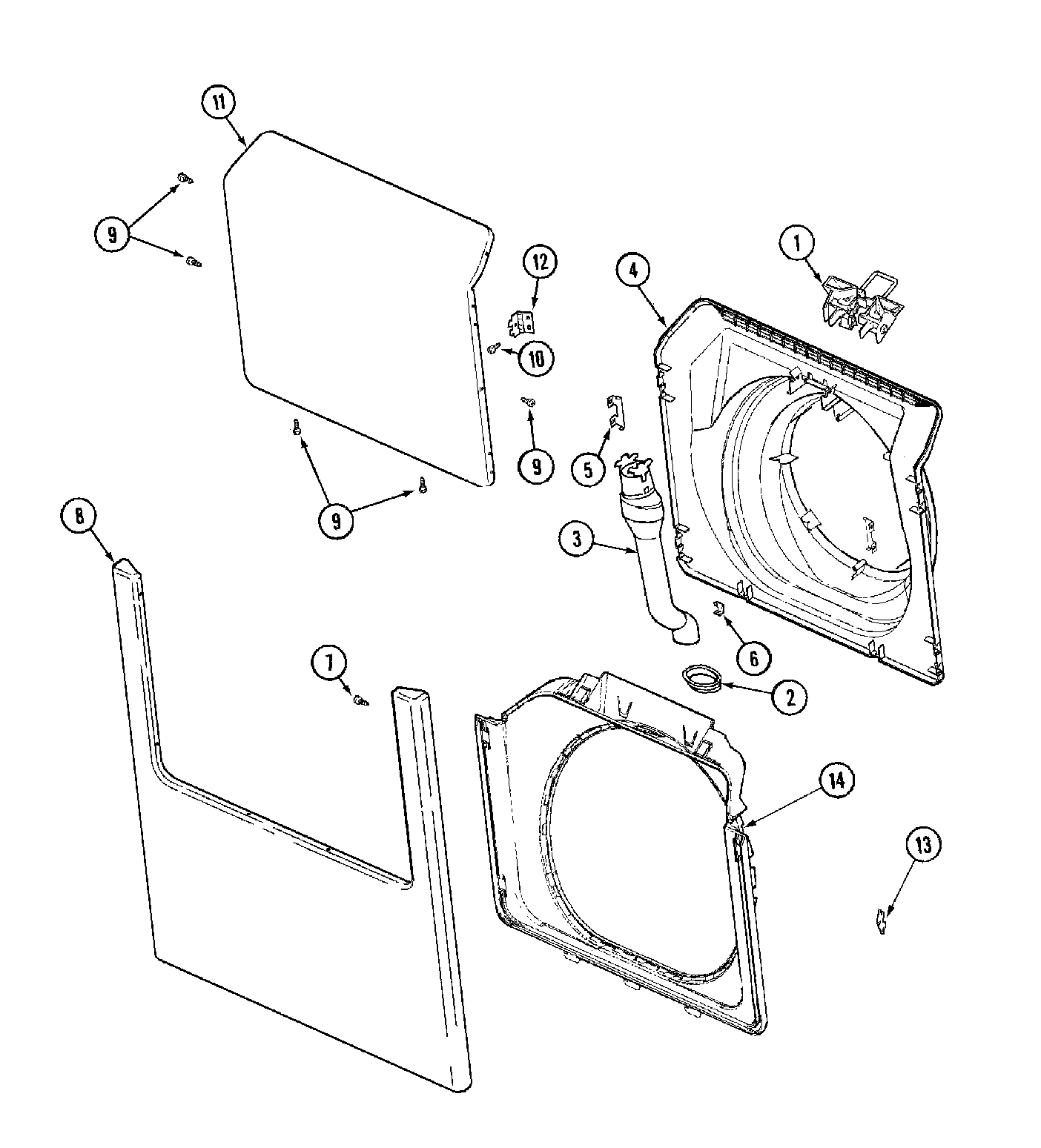

MAH21PDD3W 04 – DOOR, FRONT PANEL & SHROUD

MAH21PDD3W 04 – DOOR, FRONT PANEL & SHROUD

Written by

in

MAH21PDD3W 04 – DOOR, FRONT PANEL & SHROUD

Products

PositionProduct
001WP22003269 Whirlpool Door Lock Assembly
002WP22003075 Whirlpool Grommet
003MAY 22003850
004WP22003275 Whirlpool Inner Door Panel
005MAY 22002038
006MAY 22002039
007WP22002012 Whirlpool Screw Assembly
007MAY 22002244
00822002836 Whirlpool Oven Front Primary Panel
008WP22002049 Whirlpool Washer/Dryer Clip
009MAY 22002063
010WP98006631 Whirlpool Screw
012WP22002798 Whirlpool Door Hinge
013WP33001787 Whirlpool Screw
013WP33001764 Whirlpool Cover
014MAY 22003516
