MAH21PDDGW 05 – DOOR & FRONT PANEL

MAH21PDDGW 05 – DOOR & FRONT PANEL

Written by

in

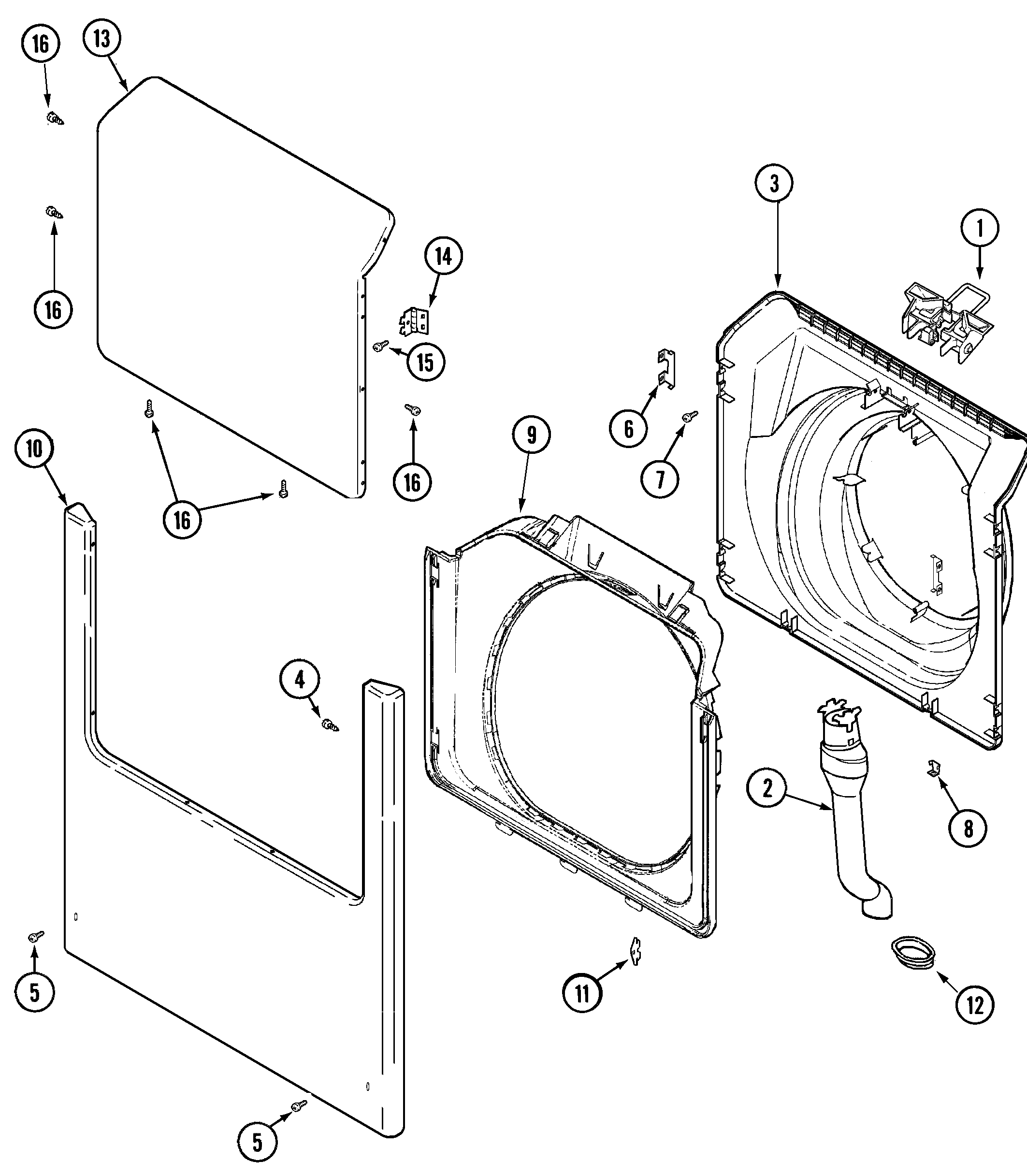

MAH21PDDGW 05 – DOOR & FRONT PANEL

Products

PositionProduct
001WP22003269 Whirlpool Door Lock Assembly
002MAY 22003850
003WP22003275 Whirlpool Inner Door Panel
005SCREW, WATER VALVE BRACKET
006MAY 22002038
007SCREW
008MAY 22002039
009MAY 22003516
010MAY 22002241
011WP33001787 Whirlpool Screw
011WP33001764 Whirlpool Cover
012WP22003075 Whirlpool Grommet
013MAY 22003785
013MAY 22002333
014WP22002798 Whirlpool Door Hinge
015WP22002012 Whirlpool Screw Assembly
015MAY 22002244
015WP98006631 Whirlpool Screw
016MAY 22002063
