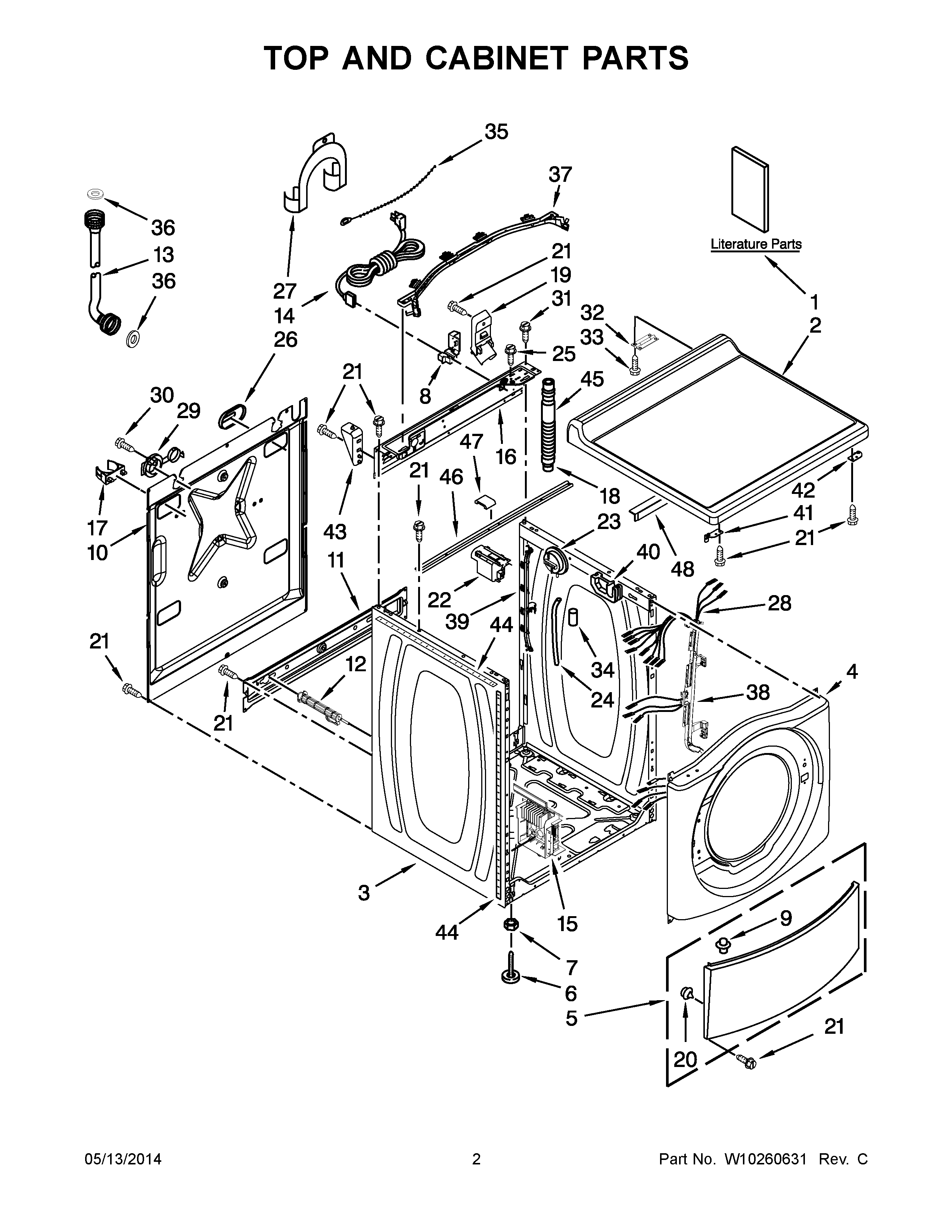

MAH22PNAGW0 02 – TOP AND CABINET PARTS

Products

Position	Product
NI	MAY W10223807
NI	MAY W10153836
NI	MAY W10223804
NI	MAY W10223809
1	MAY W10260360
1	MAY W10299730
1	MAY W10222794
1	MAY W10222793
2	TOP (WHITE)
3	Cabinet (White)
4	MAY W10306505
5	Toe Panel
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY 8540582
11	MAY W10189659
12	MAY W10251449
13	MAY W10276793
13	MAY W10276795
14	MAY W10045597
15	MAY W10385821
16	MAY W10161694
17	MAY W10182936
18	MAY W10225577
19	MAY 8540607
20	MAY 238614
21	Screw, 8-18 x 5/8
22	MAY W10269676
23	MAY W10163980
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	MAY 8540021
28	MAY W10203594
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	HINGE ASSEMBLY (WHITE)
33	MAY 342055
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, WASHER, INLET HOSE
37	MAY W10168548
38	HARNESS CHANNEL, SIDE FRONT
39	MAY W10168547
40	MAY 8540643
41	MAY W10137445
42	MAY W10137444
43	MAY W10137398
44	SEAL-FOAM (IEC)
45	MAY W10231519
46	MAY 8540721
47	MAY 8283273
48	MAY W10279059
