MAH22PNAGW0 04 – CONTROL PANEL PARTS – Aparts

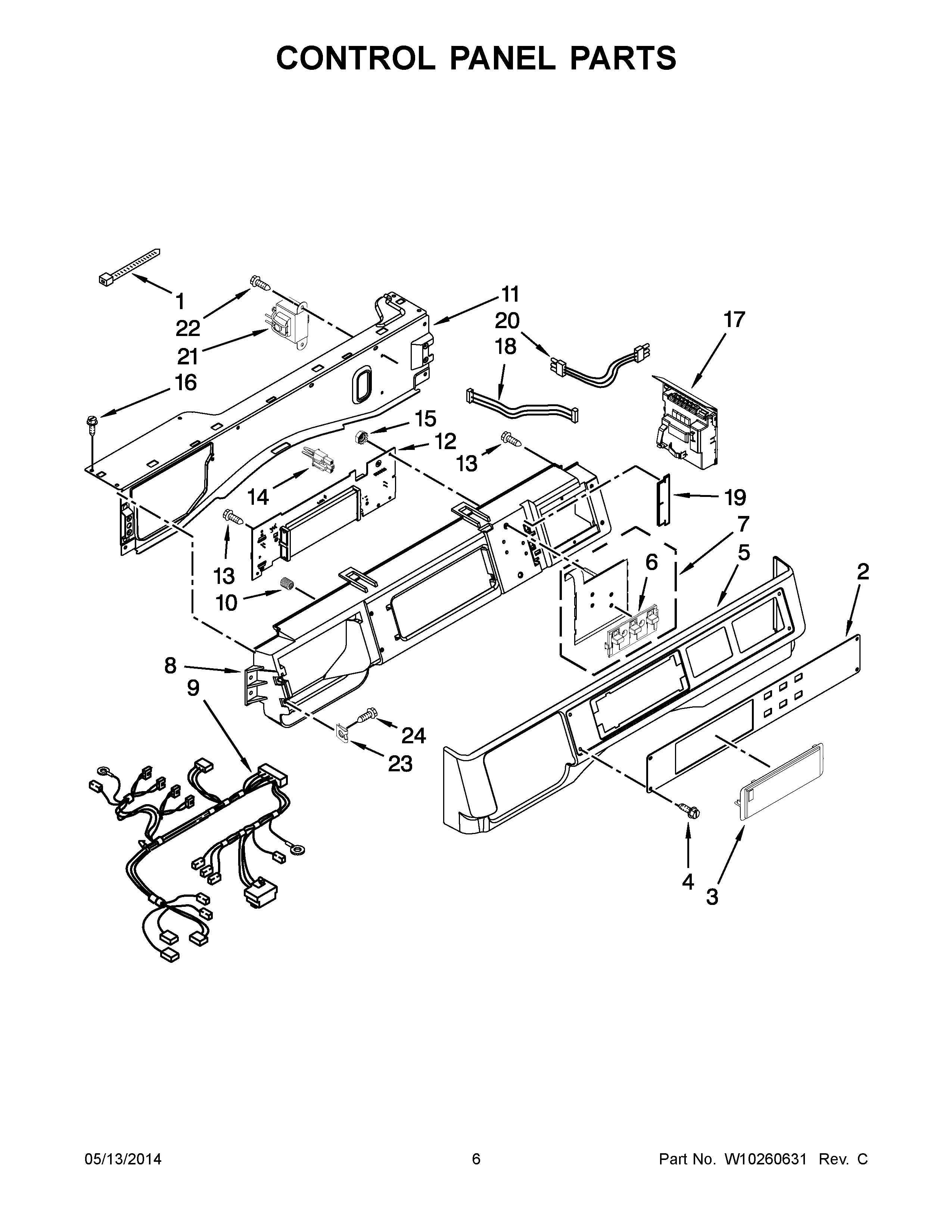

MAH22PNAGW0 04 – CONTROL PANEL PARTS

Products

Position	Product
1	Cable Tie
2	MAY W10137436
3	Cover, Display
4	SCREW
5	MAY W10137458
6	BUTTON, PUSH
7	MAY W10135389
8	MAY W10137426
9	MAY W10200792
10	INSERT
11	MAY W10137396
12	MAY W10166345
13	MAY 489136
14	JUMPER, SWITCH SERVICE/VAULT
15	NUT
16	Screw, 8-18 x 5/8
17	MAY W10202105
18	MAY W10155150
19	MAY W10187276
20	MAY W10200791
21	TRANSFORMER
22	MAY 8540329
23	CLIP(STLS.MODEL)
24	MAY W10131119
