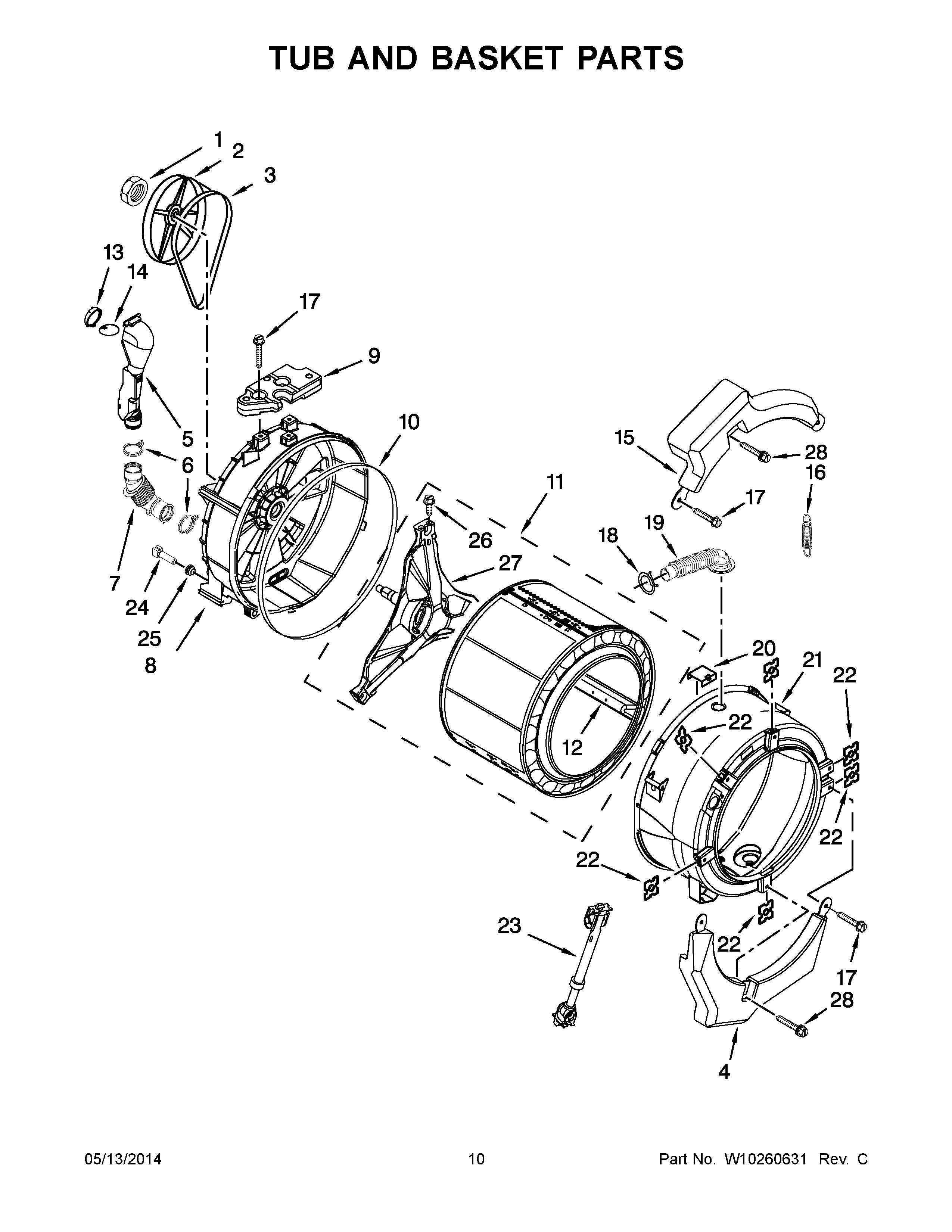

MAH22PNAGW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	MAY 8533999
2	MAY 8540088C
3	MAY W10260319
4	MAY W10151304
5	MAY W10142720
6	CLAMP, VENT HOSE
7	MAY 8540019
8	MAY W10293058
9	MAY 8540602
10	MAY 8540090
11	MAY W10165321
12	MAY W10118982
13	CONNECTOR – VENTILATION
14	Flap – Ventilation
15	MAY W10151303
16	SPRING, SUSPENSION (SET OF 2)
17	BOLT, COUNTERWEIGHT
18	MAY W10273033
19	MAY 8540015
20	MAY 8540092
21	MAY W10251648
22	MAY 8540072
23	Shock Absorber (4)
24	MAY 8540226
25	MAY 8540766
26	MAY 8540382
27	CROSSPIECE ASM
28	Bolt Assembly, Counterweight Center Hole
