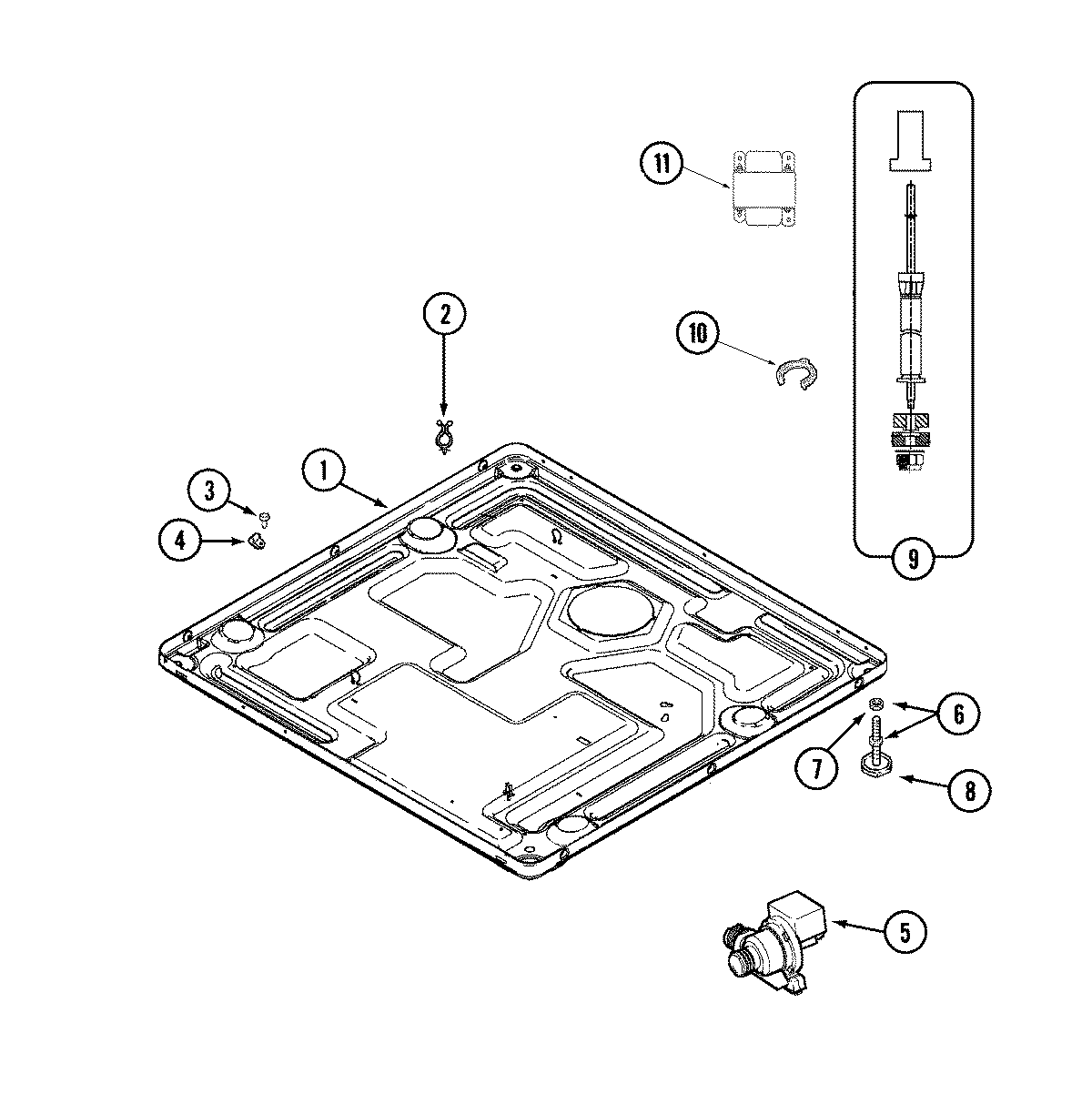

MAH3000AWW 01 – BASE

MAH3000AWW 01 – BASE

Written by

in

MAH3000AWW 01 – BASE

Products

PositionProduct
122003435 Whirlpool Assembly P1 Base O/S1
2MAY 315471
3MAY 212276
4WP308605 Whirlpool Refrigerator Clamp
5MAY 22001982
6WP8563585 Whirlpool Foot Assembly
7WP62739 Whirlpool Nut
8WP210684 Whirlpool Dishwasher Leveling Leg Pad
9MAY 22002322
9MAY 22001988
10MAY 22003080
11MAY 22002307
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
