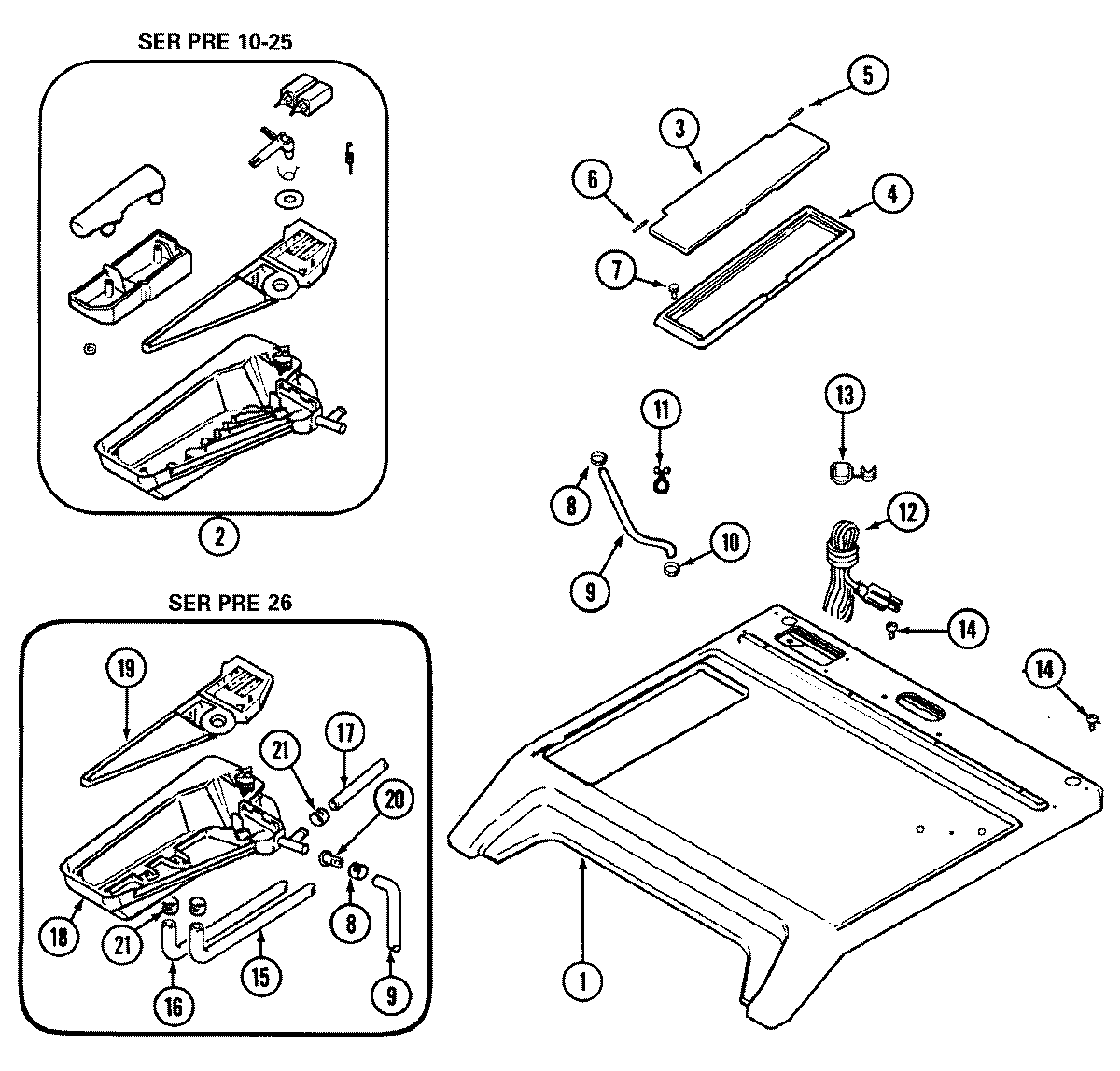

MAH3000AWW 11 – TOP

Products

Position	Product
1	MAY 22002116
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	MAY 22002264
2	MAY 22002266
2	MAY 22002265
2	MAY 22002309
3	MAY 22002288
4	MAY 22002290
5	WP6-912678 Whirlpool Hinge Pin
6	WPY912679 Whirlpool Dishwasher Hinge Pin
7	SCREW, DISPENSER BEZEL
8	MAY 22002561
9	SCREW, BAFFLE (REAR)
9	MAY 22002084
10	WP285655 Whirlpool Hose Clamp
11	MAY 212276
11	WP74007164 Whirlpool Purse Lock
12	CORD, POWER (GAS MODEL)
13	GROMMET
14	MAY 912365
15	MAY 22002551
16	MAY 22002552
17	MAY 22002553
18	DISPENSER BOTTOM
18	MAY 22002554
19	MAY 22002555
20	MAY 22001900
21	WP489503 Whirlpool Refrigerator Clamp
