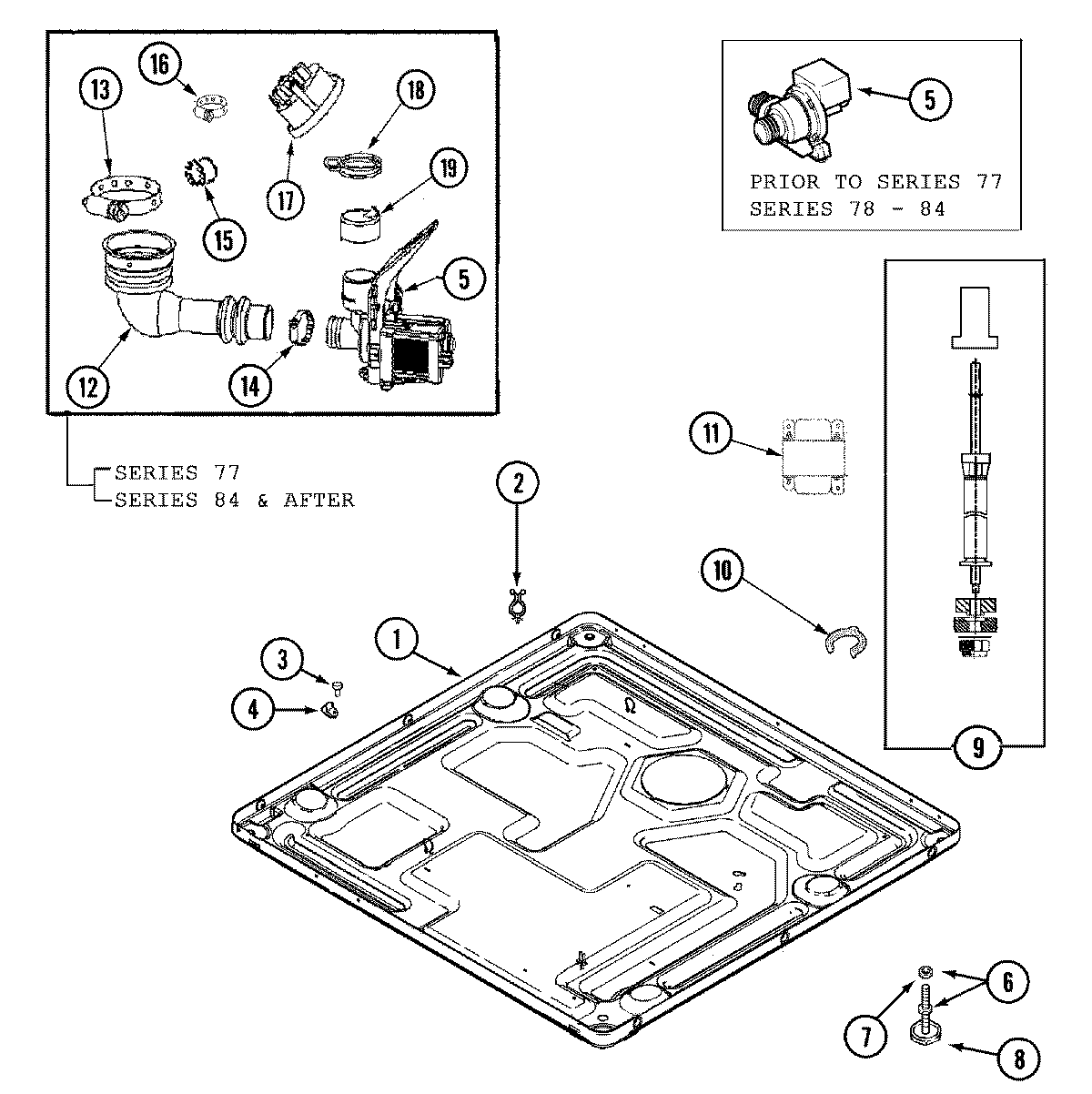

MAH3000BGW 01 – BASE

MAH3000BGW 01 – BASE

Written by

in

MAH3000BGW 01 – BASE

Products

PositionProduct
1MAY 22003605
122003435 Whirlpool Assembly P1 Base O/S1
1MAY 22003580
2MAY 22003298
3MAY 212276
4WP308605 Whirlpool Refrigerator Clamp
5MAY 22003635
5MAY 22003709
6WP8563585 Whirlpool Foot Assembly
7WP62739 Whirlpool Nut
8WP210684 Whirlpool Dishwasher Leveling Leg Pad
9MAY 22001988
10MAY 22003080
11SCREW, SELF DRILLING
11MAY 22003778
11MAY 22002476
11MAY 22002477
12WP22003262 Whirlpool Tub Hose Assembly
13WP696392 Whirlpool Hose Clamp
14WP285655 Whirlpool Hose Clamp
15MAY 22003261
17MAY 22003265
17MAY 22003727
19MAY 22003268
