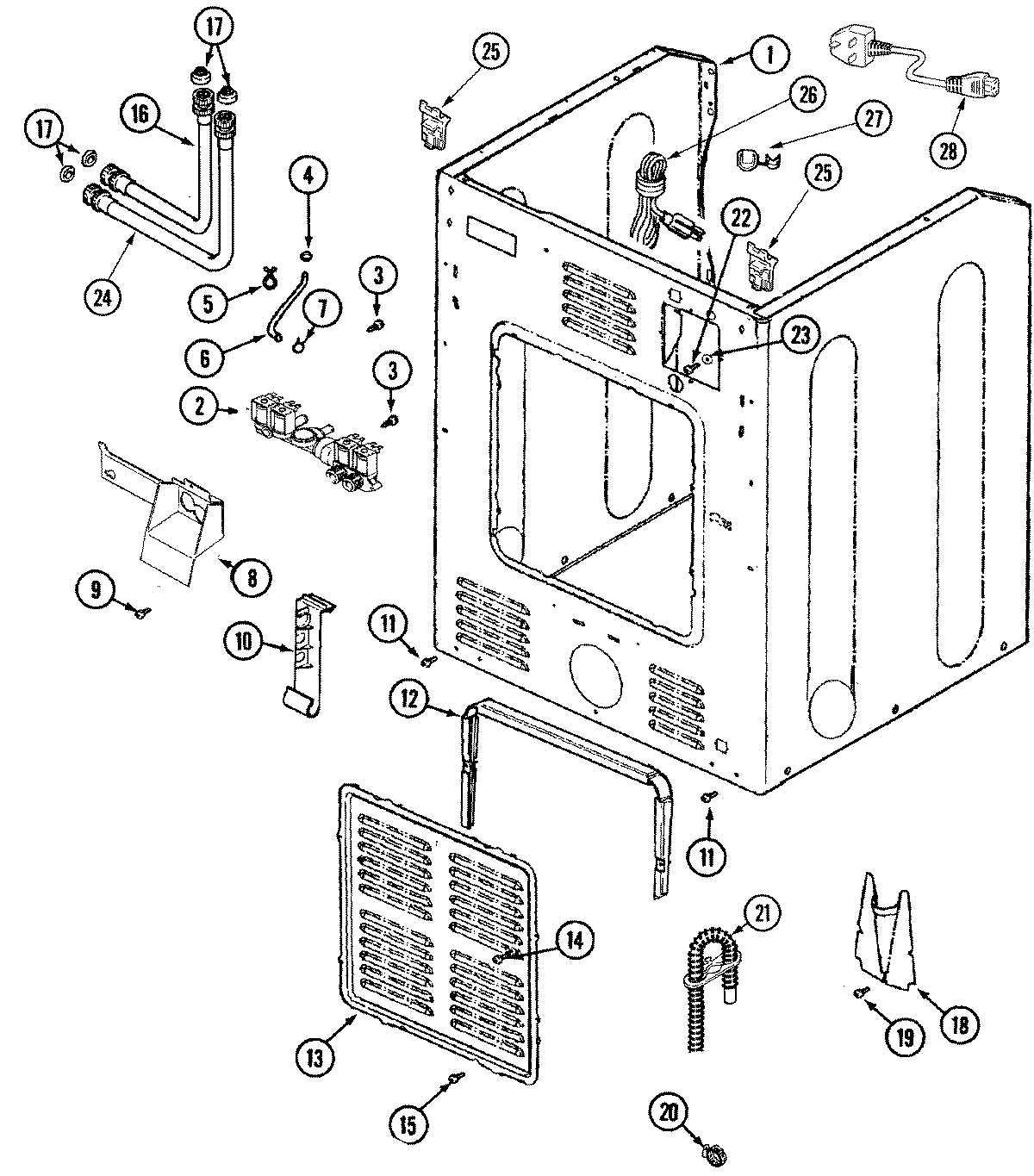

MAH3000BGW 03 – CABINET-REAR

Products

Position	Product
1	MAY 22002445
1	MAY 22003639
1	MAY 22002548
1	MAY 22003582
2	WP22002903 Whirlpool Water Valve
2	WP489503 Whirlpool Refrigerator Clamp
3	SCREW, WATER VALVE
5	WP74007164 Whirlpool Purse Lock
6	SEE NOTE GROUND WIRE, GREEN
6	WP22002083 Whirlpool Injector Hose
7	WP616099 Whirlpool Clamp
8	MAY 33002212
10	MAY 33002213
12	MAY 22002022
13	MAY 22002092
14	WP67006908 Whirlpool Refrigerator Screw
15	WP489128 Whirlpool Refrigerator Screw
16	WP22002960 Whirlpool Washer Inlet Strainer
16	MAY 35-3401
17	MAY Y013783
18	MAY 22002704
19	W11573574 Whirlpool Screw
20	WP285655 Whirlpool Hose Clamp
21	MAY 22003628
21	12001807 Whirlpool Primary Drain Hose Replacement Kit
21	WP22002892 Whirlpool Retainer
22	W10850756 Whirlpool Screw
23	MAY 313363
24	MAY 35-3400
25	MAY 22003367
26	MAY 22003540
27	MAY 216183
28	MAY 22003541
28	MAY 22003542
28	MAY 22003543
29	MAY 22003480
