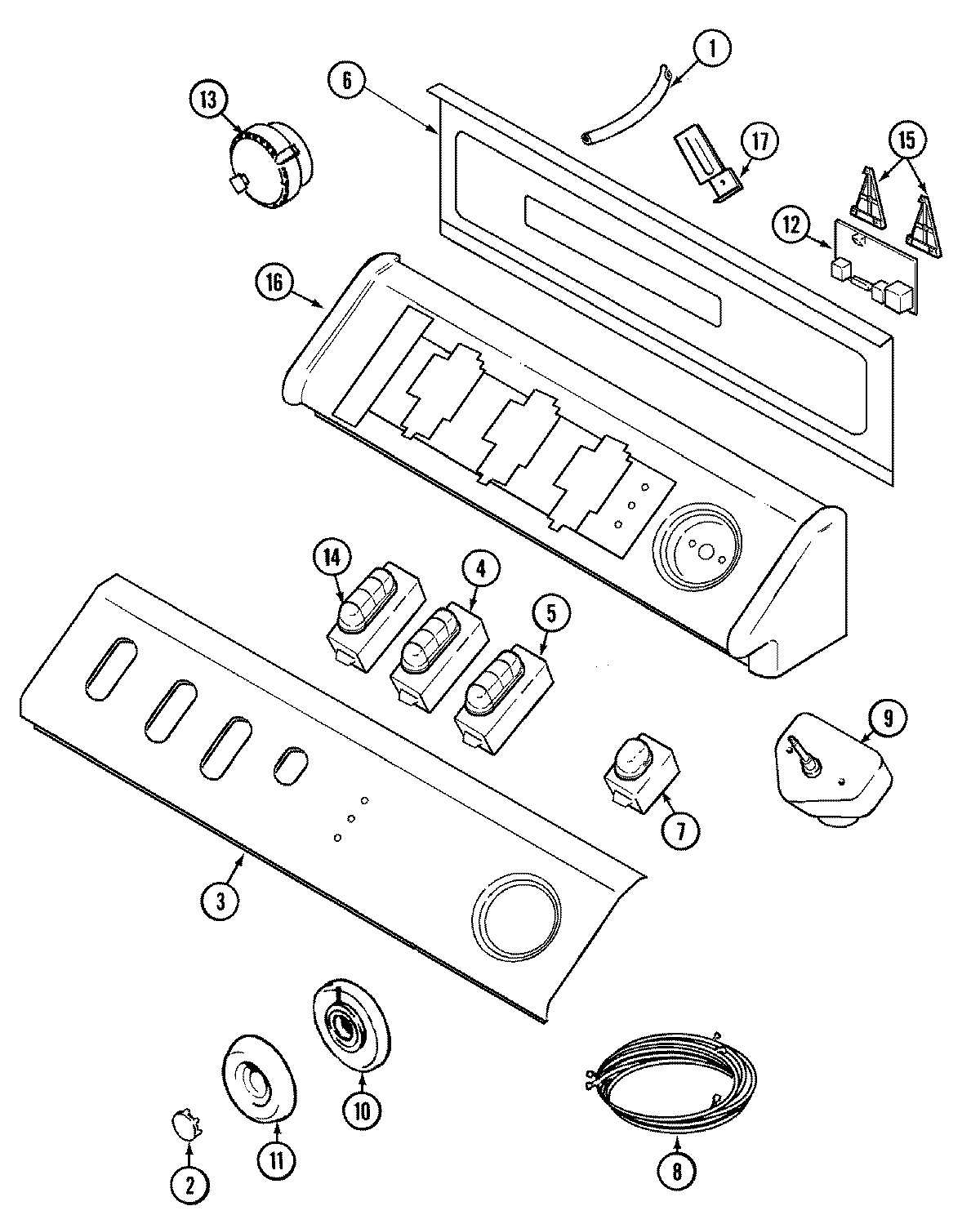

MAH3000BGW 04 – CONTROL PANEL

Products

Position	Product
1	WP22002010 Whirlpool Air Hose
2	WP22001664 Whirlpool Timer Knob
3	MAY 22002275
4	MAY 22003619
5	MAY 22003620
6	MAY 22002529
7	MAY 22002560
8	MAY 22003823
8	MAY 22002644
8	MAY 22003820
8	MAY 22003836
8	CLIP, WIRE HARNESS
9	MAY 22002992
9	MAY Y22002339
10	MAY 22002282
11	WP22001659 Whirlpool Timer Knob
12	MAY 22002917
12	MAY 22002287
12	M0282005 Whirlpool Nut
13	MAY 22002994
14	MAY 22003621
15	MAY 22002284
16	MAY 22002964
17	WP489128 Whirlpool Refrigerator Screw
17	BRACKET, WATER SWITCH
18	MAY 22003708
19	MAY 16010061
20	MAY 22004082
