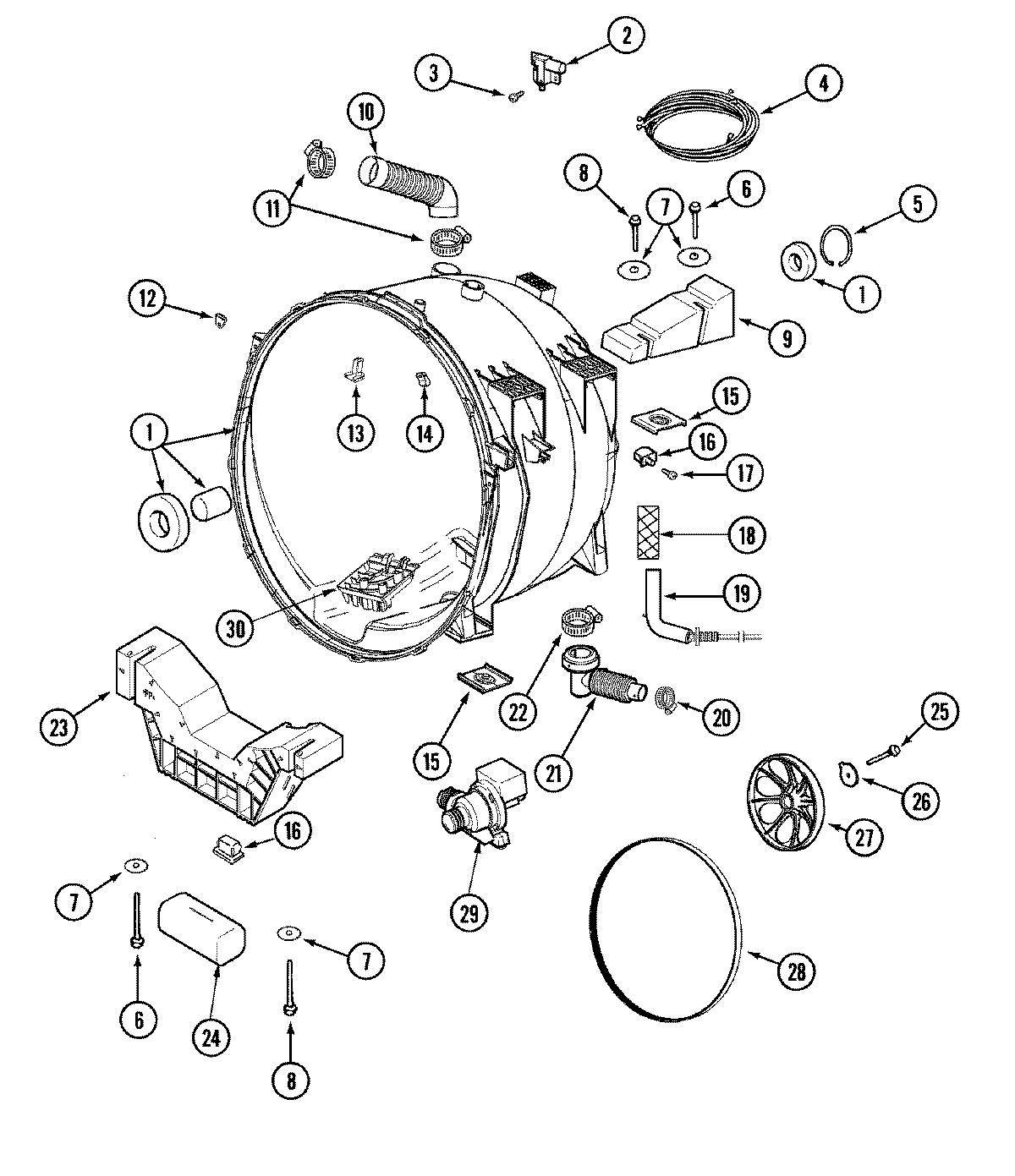

MAH3000BGW 08 – OUTER TUB

Products

Position	Product
1	22004465 Whirlpool Tub Assembly Outer
2	MAY 22002045
2	MAY 22003302
3	WP9740848 Whirlpool Dishwasher Screw
4	MAY 22002860
5	MAY 22001981
6	MAY 22001991
7	MAY 22002067
8	MAY 22002056
9	MAY 22002102
10	WP22002083 Whirlpool Injector Hose
11	WP616099 Whirlpool Clamp
12	MAY 22002103
13	22004310 Whirlpool Water Deflector
14	CLIP, WIRE HARNESS
15	MAY 22002065
16	WP22002044 Whirlpool Switch
16	MAY 22003065
16	MAY 22004051
17	910187 Whirlpool Screw
18	MAY 33002224
19	MAY 22003628
19	WP22002010 Whirlpool Air Hose
20	WP285655 Whirlpool Hose Clamp
21	WP22003262 Whirlpool Tub Hose Assembly
22	WP696392 Whirlpool Hose Clamp
23	MAY 22002579
24	MAY 22003225
25	WP22003937 Whirlpool Screw
26	WP22003936 Whirlpool Washer
27	MAY 22001998
28	12001788 Whirlpool Washer Drive Belt & Isolator Kit
29	MAY 22002809
30	MAY 22003710
