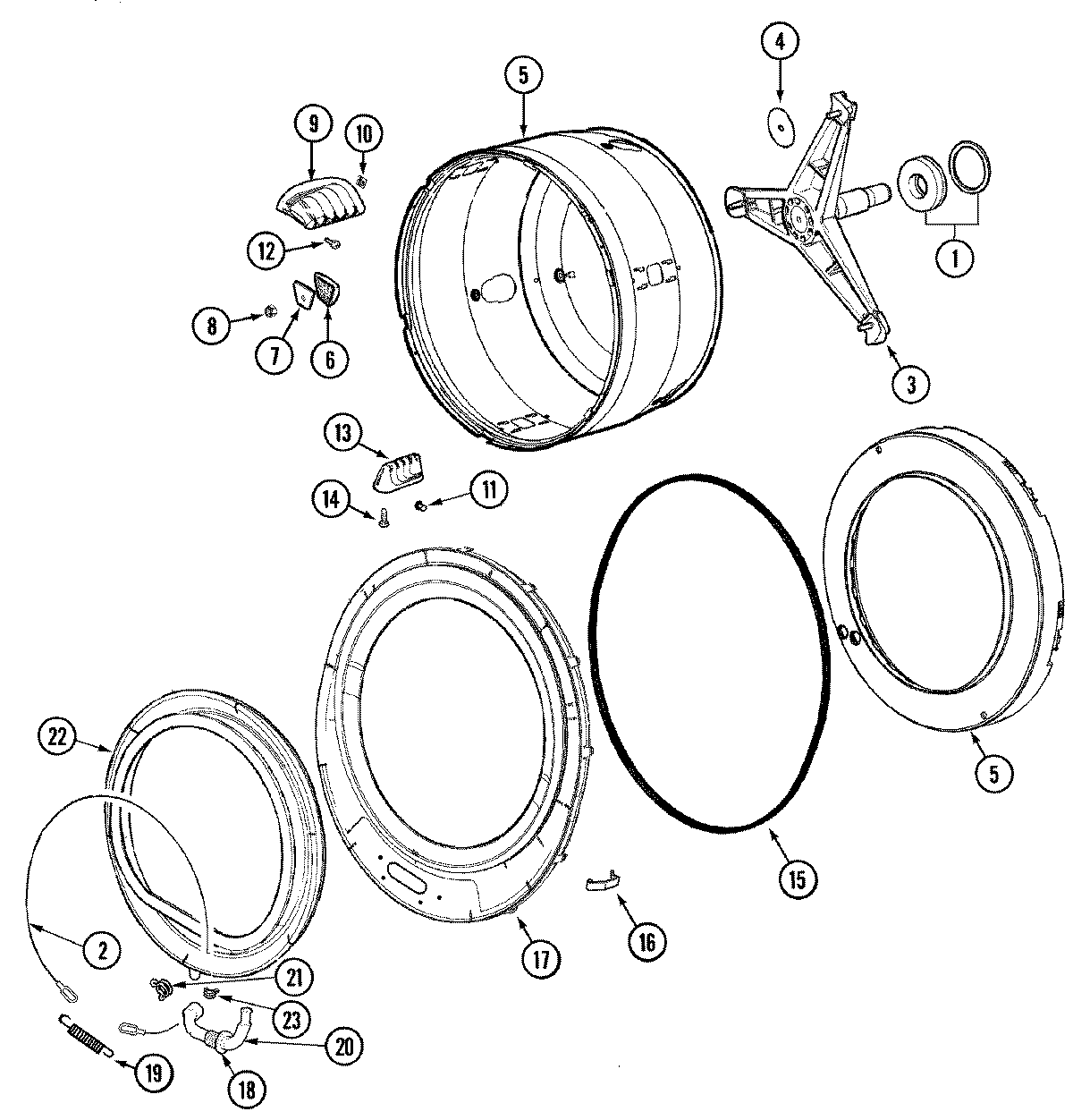

MAH3000BGW 09 – SPINNER ASSEMBLY & OUTER TUB COVER

MAH3000BGW 09 – SPINNER ASSEMBLY & OUTER TUB COVER

Written by

in

MAH3000BGW 09 – SPINNER ASSEMBLY & OUTER TUB COVER

Products

PositionProduct
112002022 Whirlpool Washer Lip Seal Kit
2MAY 22002327
3MAY 22003925
3MAY 22002897
3WP22004108 Whirlpool O-Ring
3MAY 22002123
3MAY 22004081
4MAY 22002023
5MAY 22003257
5WP400021-1 Whirlpool Screw
5MAY 22003549
6MAY 22002482
7MAY 22002020
8WP2207454 Whirlpool Refrigerator Nut
9MAY 22001985
10MAY 22002009
1122001999 Whirlpool Baffle Primary Grommet
12SCREW
13MAY 22001986
14MAY 22002059
15WP22002077 Whirlpool Tub Seal
16MAY 22002050
17COVER, TUB (W/SEAL) (ASP)
17MAY 22004264
18WP22003074 Whirlpool Shield
19MAY 22002099
20WP22004477 Whirlpool Drain Hose
21WP596669 Whirlpool Hose Clamp
22MAY 12001772
