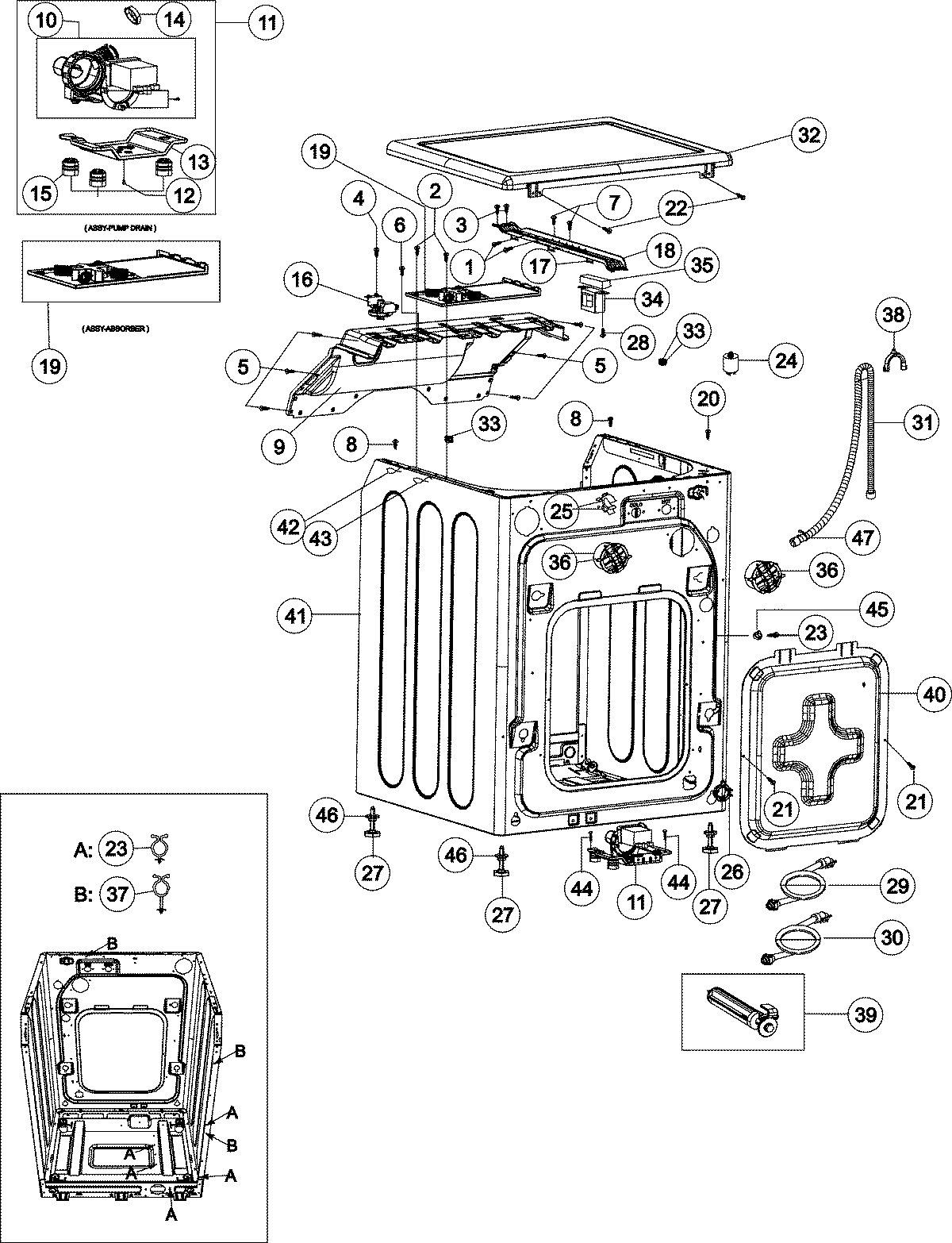

MAH6700AWM 01 – CABINET

MAH6700AWM 01 – CABINET

Written by

in

MAH6700AWM 01 – CABINET

Products

Position	Product
8	SCREW-SPECIAL
9	FRAME-PLATE (U) – CABINET
10	WP34001340 Whirlpool Drain Pump
11	WP34001320 Whirlpool Drain Pump
12	WP98008545 Whirlpool Screw
14	MAY 34001322
15	34001323 Whirlpool Pump Cushion
16	ASSY-SENSOR PRESSURE
17	HOLDER-WIRE SADDLE
18	GUIDE-WIRE
19	ASSY-ABSORBER
21	SCREW-TAPPING
22	SCREW-HEX
23	CABLE CLAMP
24	FILTER-EMI
25	CLAMPER HOSE
26	GUIDE-HOSE
26	MAY 34001500
27	LEG-RUBBER
28	SCREW-TAPPING
29	MAY 34001089
30	MAY 34001094
31	ASSY-HOSE DRAIN
32	ASSY-COVER TOP
33	GUIDE-SPRING – WASHER ONLY
34	TRANS-REACTORV
35	BRACKET-HEATER
36	ASSY-CAP O.F.
37	MAY 34001501
37	HOLDER-WIRE (RETAINER/CLIP)
38	HOSE-HANGER
39	ASSY-FIXER TUB
40	ASSY-COVER BACK
41	ASSY-FRAME – CABINET
43	WIRE TIE – VINYL
44	BOLT-HEX
45	CLAMPER HOSE
46	NUT-HEXAGON FLANGE
47	WP596669 Whirlpool Hose Clamp
