MAH6700AWM 02 – CONTROL BOARD / DISPENSER

MAH6700AWM 02 – CONTROL BOARD / DISPENSER

Written by

in

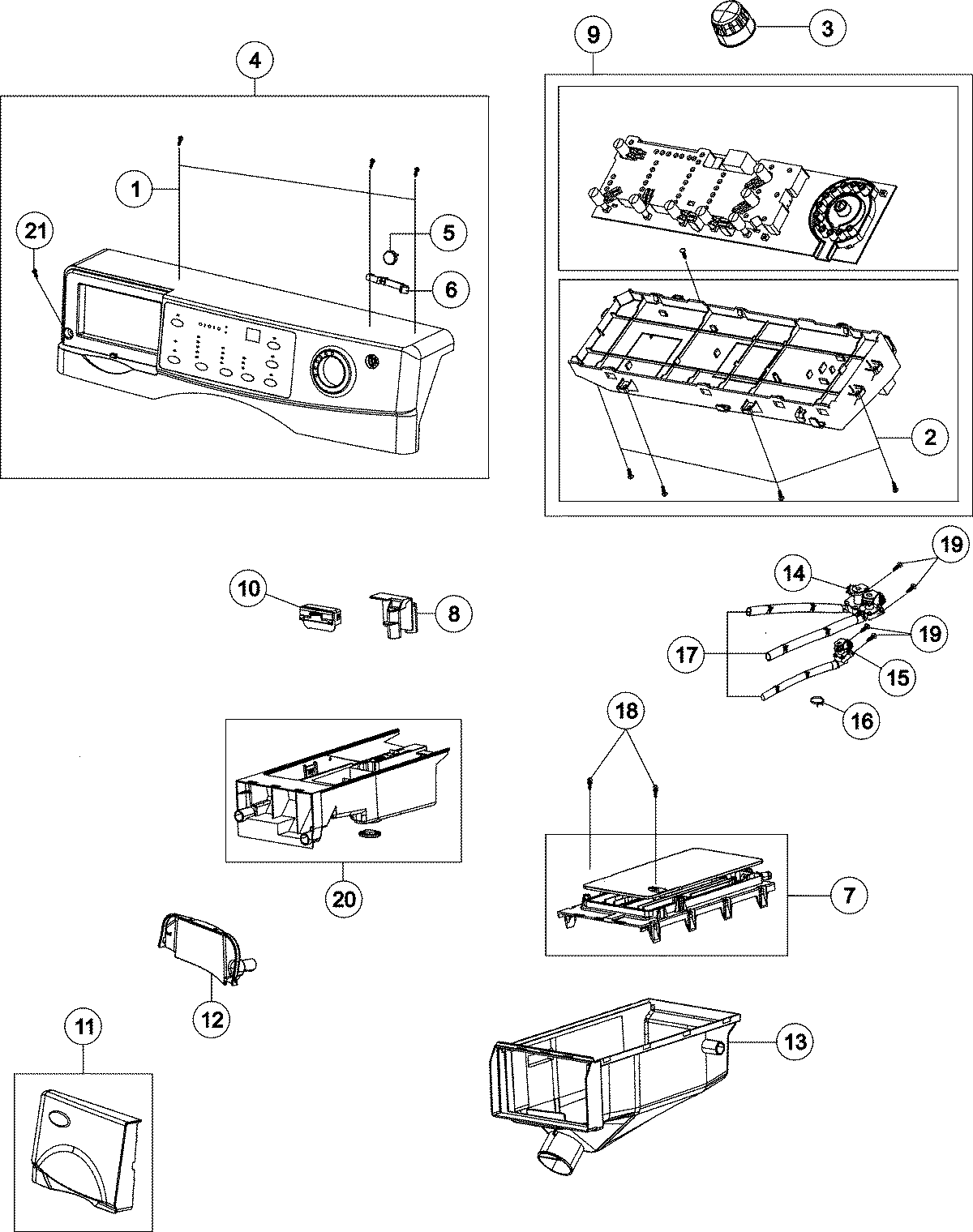

MAH6700AWM 02 – CONTROL BOARD / DISPENSER

Products

PositionProduct
2SCREW-TAPPING
3MAY 34001233
4MAY 34001418
5MAY 34001235
6LEVER-POWER
7WP34001284 Whirlpool Housing
8CAP-RINSE
9MAY 34001479
9MAY 34001487
9ASSY PCB-6700 (SERIES 14)
9MAY 34001420
9WP34001484 Whirlpool Electronic Control Board
10GUIDE-LIQUID
11MAY 34001470
12HANDLE-DRAWER
13WP34001245 Whirlpool Housing Drawer
14WP34001151 Whirlpool Water Valve
15WP34001131 Whirlpool Water Inlet Valve
16CLAMP-HOSE
17HOSE-DRAWER (.25)
18WP98008545 Whirlpool Screw
19SCREW-TAPTITE
20ASSY-S. BODY DRAWER
21Screw-Tapping (4)
