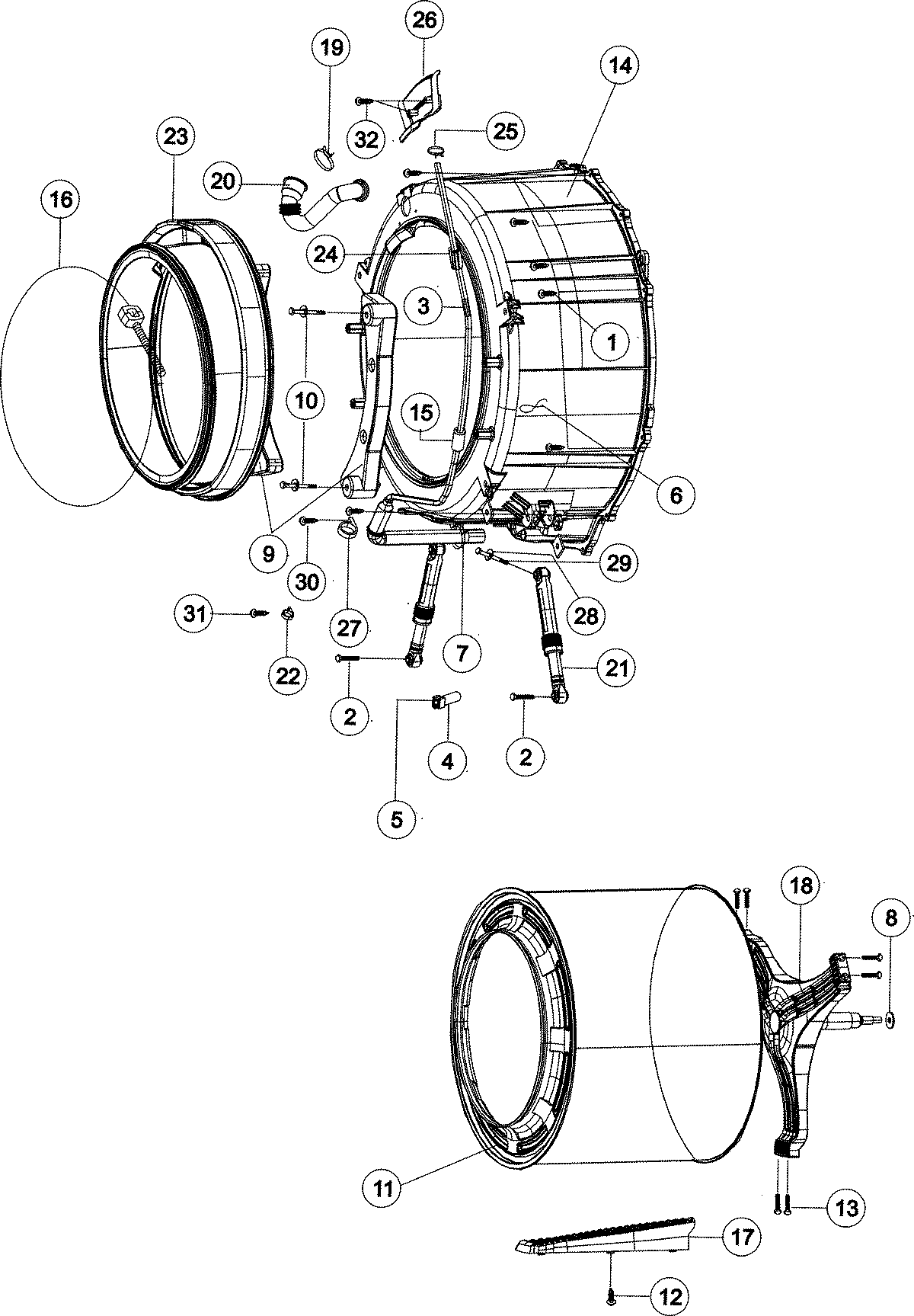

MAH6700AWM 05 – TUB – FRONT

Products

Position	Product
3	HOSE-PRESSURE (L)
4	MAY 34001202
5	PACKING-THERMISTOR-GROMMET
6	WIRE TIE – VINYL
7	CLAMPER HOSE
8	WASHER-WAVE
9	WEIGHT-BALANCER (F)
10	Foot-Dryer
11	ASSY-SEMI DRUM
13	BOLT-FLANGE
14	ASSY-SEMI TUB FRONT
15	SPONGE-HARNESS
16	ASSY-CLAMP DIAPHGRAM
17	DRUM-LIFTER
18	ASSY-FRAME SHAFT
19	BAND-RING
21	WP34001303 Whirlpool Damper Assembly
22	CABLE CLAMP
23	WP34001432 Whirlpool Bellow
24	SPONGE-HOSE AIR
25	SPRING-CLAMP
26	GUIDE-WATER
27	CLAMPER HOSE
28	WASHER-PLAIN
31	WP98008545 Whirlpool Screw
32	SCREW-TAPPING
